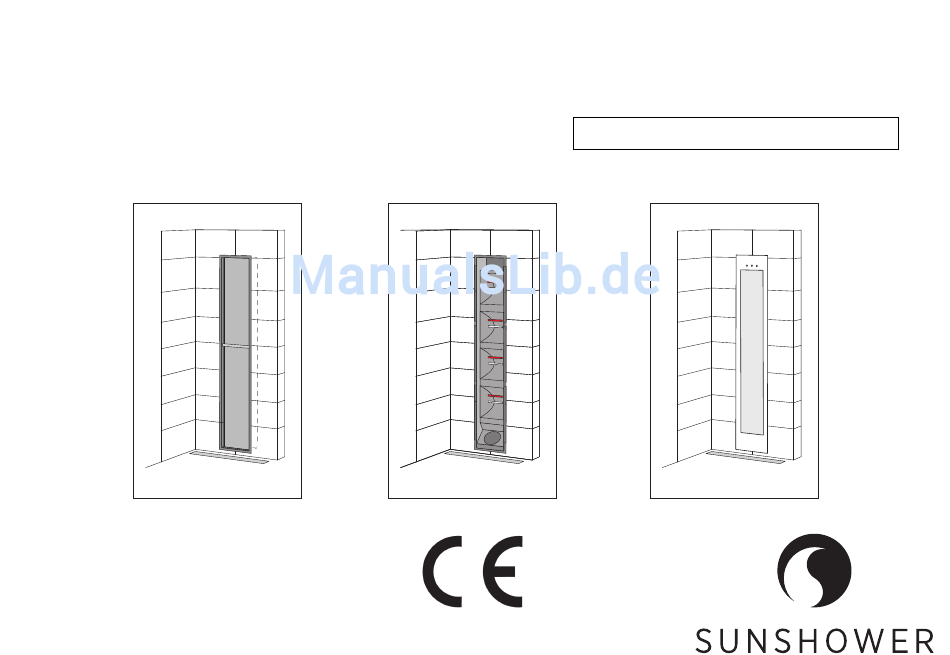

SUNSHOWER DELUXE WHITE Installation manual Part 2 / Installatie handleiding deel 2 / Installationsanleitung Teil 2 / Manual d’installation Partie 2 MANUALE D'INSTALLAZIONE PARTE 2 P1071-2 Rev. D 03-2016...
Seite 2
Casing / Binnenwerk / Gehäuse / Logement INVOLUCRO Wall frame / Wandframe / Wandrahmen / Cadre mural TELAIO SUNSHOWER Deluxe White SUNSHOWER Deluxe White Rev. D Installation manual part 2 / Installatiehandleiding deel 2 / Installationanleitung Teil 2 / Manuel dínstallation partie 2...
Seite 3
Tutte le istruzioni del manuale di installazione parte 1 devono essere completate prima diÚ partire con questo passo: rimuovere il traverso applicato sulle cornici. SUNSHOWER Deluxe White Rev. C Installation manual part 2 / Installatiehandleiding deel 2 / Installationanleitung Teil 2 / Manuel dínstallation partie 2...
Inserire il telaio dritto nella cornice. Inserire le viti nella posizione indicata nella parte superiore e inferiore del telaio. SUNSHOWER Deluxe White Rev. D Installation manual part 2 / Installatiehandleiding deel 2 / Installationanleitung Teil 2 / Manuel dínstallation partie 2...
Collegare i cavi elettrici secondo le istruzioni. Controllare i collegamenti del lustro bianco terminale nella parte superiore. Bloccare il cavo PE nel morsetto in alto a destra. SUNSHOWER Deluxe White Rev. D Installation manual part 2 / Installatiehandleiding deel 2 / Installationanleitung Teil 2 / Manuel dínstallation partie 2...
Seite 6
Si prega di notare! Collegare il cavo piattto al PCB sul retro del vetro riquadro. Vedere l'immagine dettagliata SUNSHOWER Deluxe White Rev. D Installation manual part 2 / Installatiehandleiding deel 2 / Installationanleitung Teil 2 / Manuel dínstallation partie 2...
Seite 7
Instructions / Instructies / Anleitung / Instructions : Switch on the group or fround fault circuit breaker. Then press the UV or IR button to commence a session. If the Sunshower does not start a session, check wheth- er the flat cable, step 4, is well mounted. At the end of the IR or UV session the unit cools for 4 minutes. This is indicated by 4 flashing LEDs around the stop button.
