Mounting the fi nishing disc
• Turn the side of the lower fl ange with the correct collar diameter to face upwards.
The collar diameter depends on the axis diameter of the fi nishing disc.
• Place the fi nishing disc on the lower fl ange.
• Lock the toothed idler with a No. 6 allen key.
• Fit the nut fl ange.

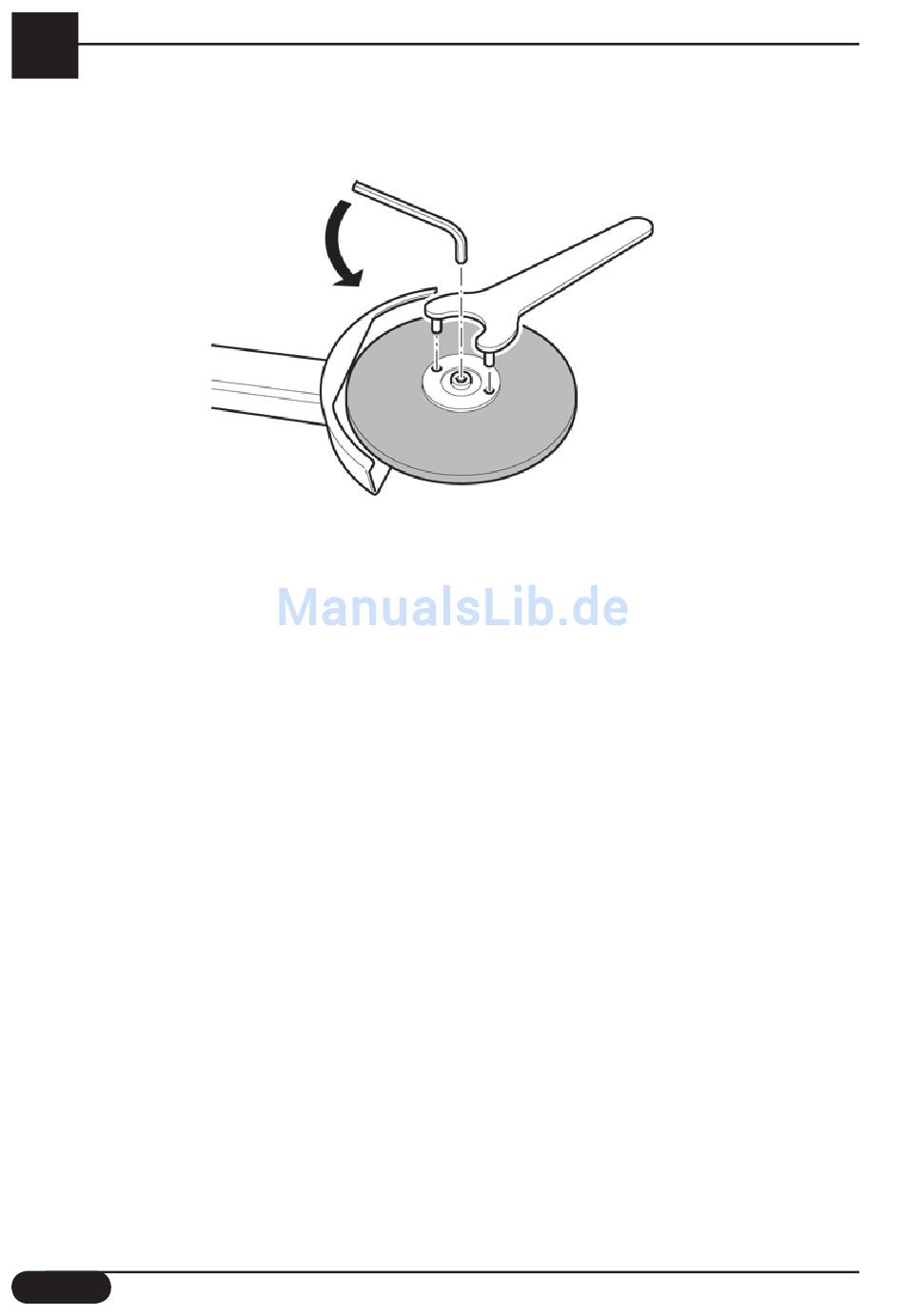

• Secure the nut fl ange with the pin wrench and No. 6 allen key.
Consult a Cibo applications expert to determine the correct type of fi nishing disc for each
application.
