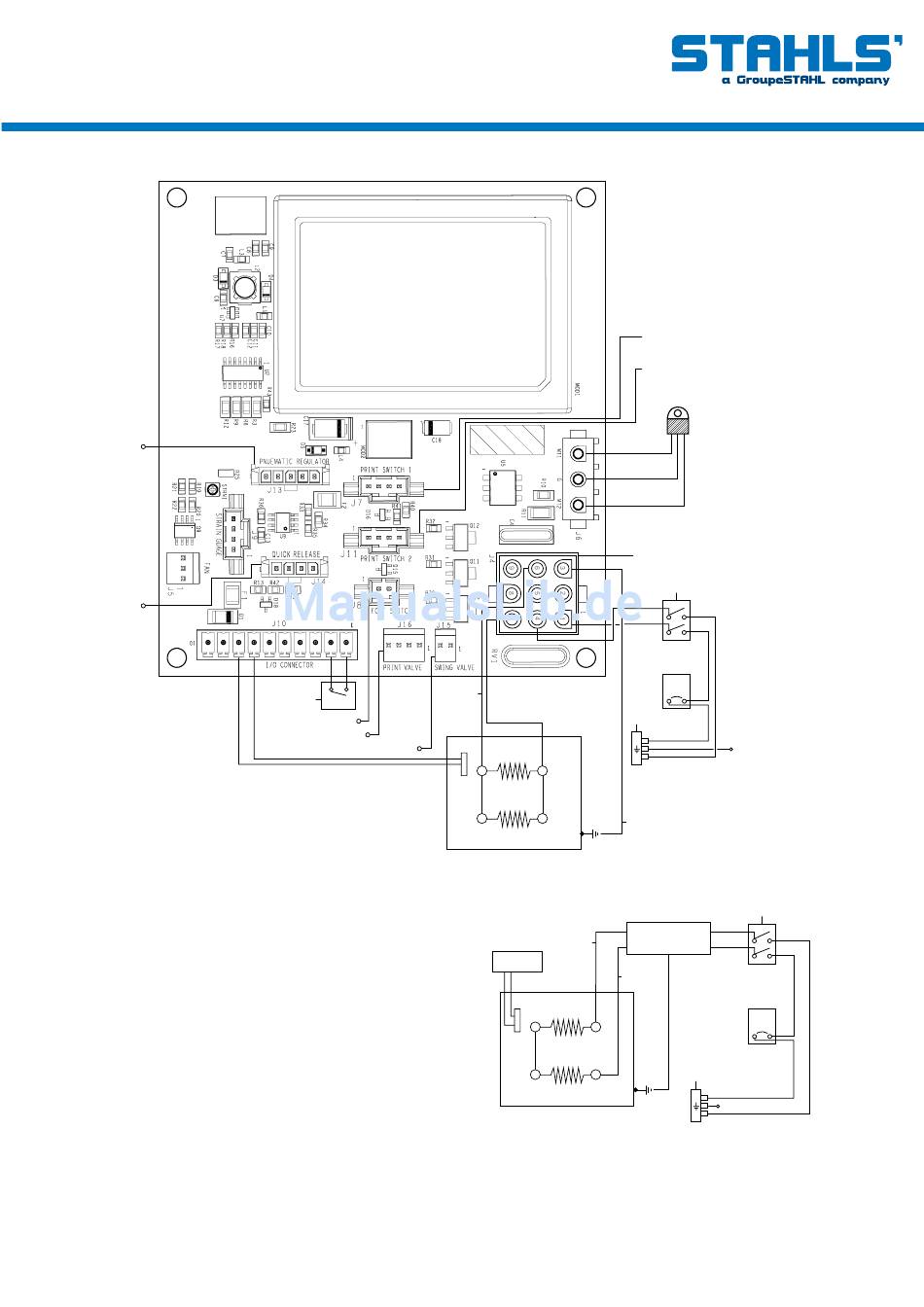

Elektrischer Schaltplan

Out to Air Regulator
Out to Quick Release
Air Fusion™
®
Control Board
Proximity Switch
SW2
Out to Foot Pedal
Out to Print Valve
Out to Swing Valve
120V Version
Heater Wire
Heater Wire
RTD
(2250W Heater - 120V - 60Hz)
Heater Wire
Out to J10 I/O
Connector
RTD
(2250W Heater - 230V - 50/60Hz)
Rev. A 9-11
Out to Left Print Switch
Out to Right Print Switch
Triac
White
Red
Black
J4 Mate-N-Lock
9 Pin Power Connector
Power
ON/OFF Switch
White
Black
CB
IEC Inlet
Black (14GA.)
L
Ground to Frame (14GA.)
N
White (14GA.)
Ground
Power
ON/OFF Switch
White
Out to J4 Mate-N-Lock
9 Pin Power Connector
Black
Heater Wire
CB
IEC Inlet
Black (14GA.)
L
Ground to Frame (14GA.)
N
White (14GA.)
CE 230V Version
