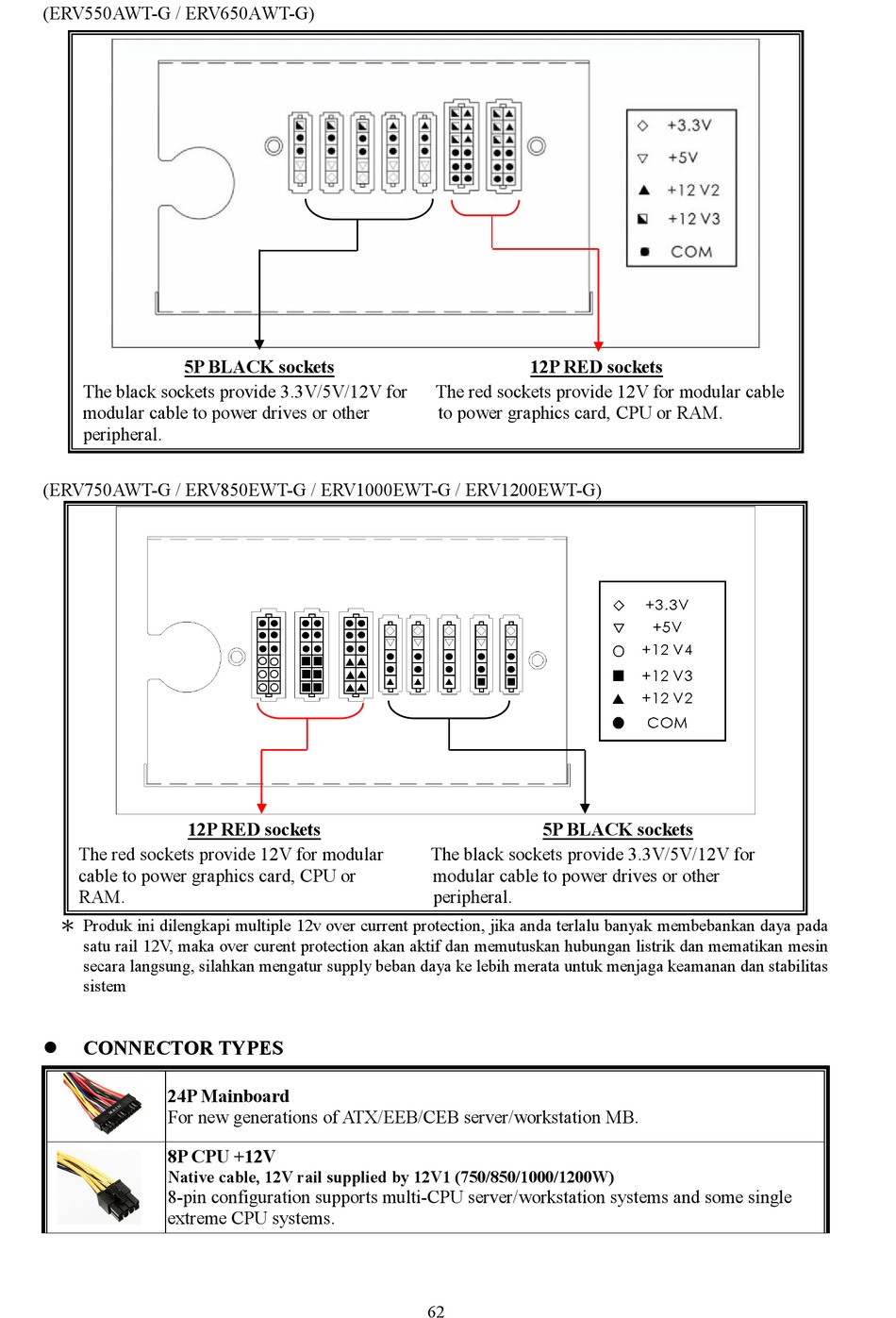

ENERMAX REVOLUTION87+ Benutzerhandbuch Seite 64

(ERV550AWT-G / ERV650AWT-G)
5P BLACK sockets
The black sockets provide 3.3V/5V/12V for
modular cable to power drives or other
peripheral.
(ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G / ERV1200EWT-G)
12P RED sockets
The red sockets provide 12V for modular
cable to power graphics card, CPU or
RAM.
＊
Produk ini dilengkapi multiple 12v over current protection, jika anda terlalu banyak membebankan daya pada
satu rail 12V, maka over curent protection akan aktif dan memutuskan hubungan listrik dan mematikan mesin
secara langsung, silahkan mengatur supply beban daya ke lebih merata untuk menjaga keamanan dan stabilitas
sistem

CONNECTOR TYPES
24P Mainboard
For new generations of ATX/EEB/CEB server/workstation MB.
8P CPU +12V
Native cable, 12V rail supplied by 12V1 (750/850/1000/1200W)
8-pin configuration supports multi-CPU server/workstation systems and some single
extreme CPU systems.
12P RED sockets
The red sockets provide 12V for modular cable
to power graphics card, CPU or RAM.
5P BLACK sockets
The black sockets provide 3.3V/5V/12V for
modular cable to power drives or other
peripheral.
