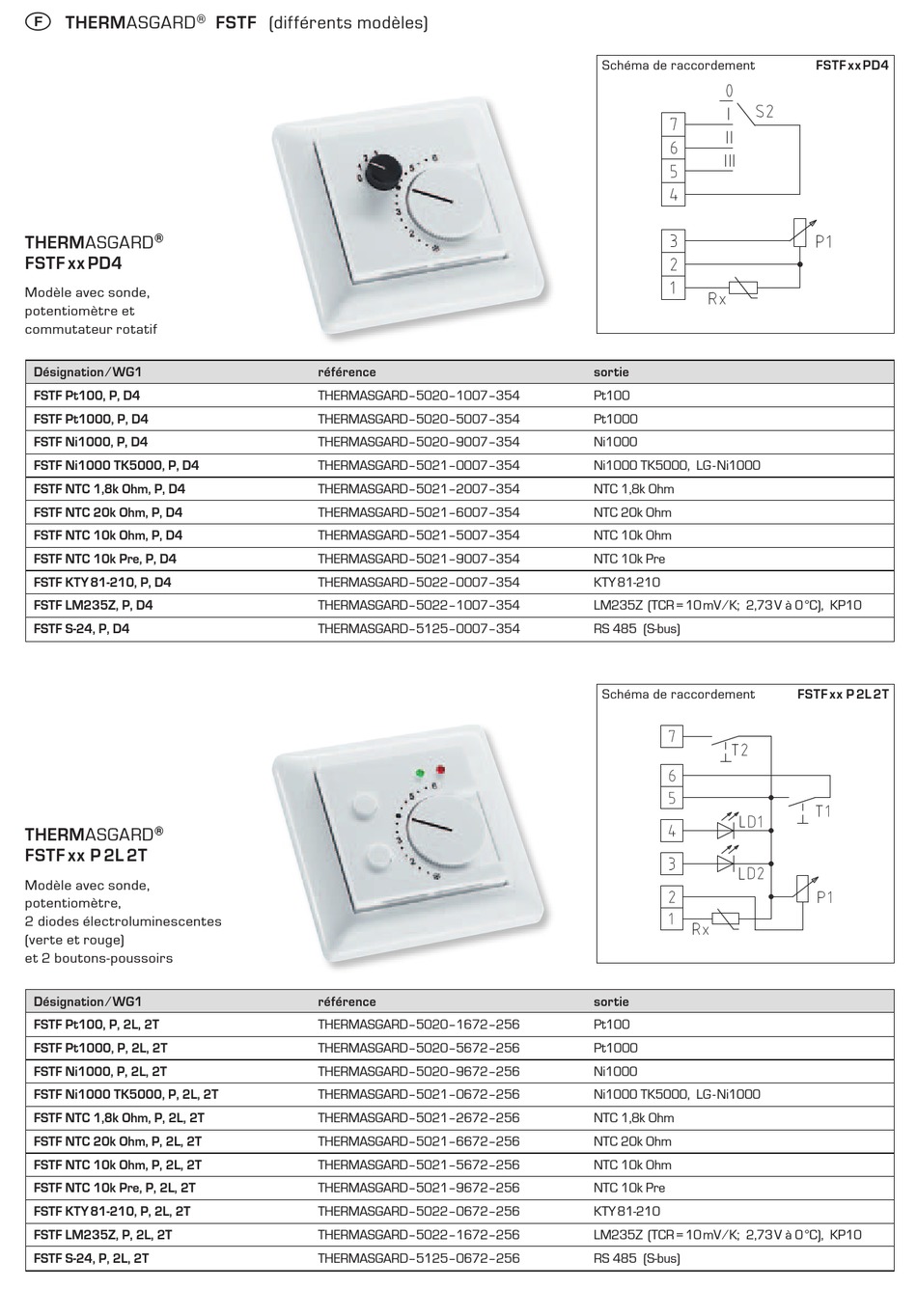

S+S REGELTECHNIK ThermAsgard FSTF Bedienungs- Und Montageanleitung Seite 21

F
®
THERMASGARD
®
THERMASGARD
FSTF xx PD4
Modèle avec sonde,
potentiomètre et
commutateur rotatif
Désignation ⁄ WG1
FSTF Pt100, P, D4
FSTF Pt1000, P, D4
FSTF Ni1000, P, D4
FSTF Ni1000 TK5000, P, D4
FSTF NTC 1,8k Ohm, P, D4
FSTF NTC 20k Ohm, P, D4
FSTF NTC 10k Ohm, P, D4
FSTF NTC 10k Pre, P, D4
FSTF KTY 81-210, P, D4
FSTF LM235Z, P, D4
FSTF S-24, P, D4
®
THERMASGARD
FSTF xx P 2L 2T
Modèle avec sonde,
potentiomètre,
2 diodes électroluminescentes
(verte et rouge)
et 2 boutons-poussoirs
Désignation ⁄ WG1
FSTF Pt100, P, 2L, 2T
FSTF Pt1000, P, 2L, 2T
FSTF Ni1000, P, 2L, 2T
FSTF Ni1000 TK5000, P, 2L, 2T
FSTF NTC 1,8k Ohm, P, 2L, 2T
FSTF NTC 20k Ohm, P, 2L, 2T
FSTF NTC 10k Ohm, P, 2L, 2T
FSTF NTC 10k Pre, P, 2L, 2T
FSTF KTY 81-210, P, 2L, 2T
FSTF LM235Z, P, 2L, 2T
FSTF S-24, P, 2L, 2T
FSTF (différents modèles)
référence
THERMASGARD–5020–1007–354
THERMASGARD–5020–5007–354
THERMASGARD–5020–9007–354
THERMASGARD–5021–0007–354
THERMASGARD–5021–2007–354
THERMASGARD–5021–6007–354
THERMASGARD–5021–5007–354
THERMASGARD–5021–9007–354
THERMASGARD–5022–0007–354
THERMASGARD–5022–1007–354
THERMASGARD–5125–0007–354
référence
THERMASGARD–5020–1672–256
THERMASGARD–5020–5672–256
THERMASGARD–5020–9672–256
THERMASGARD–5021–0672–256
THERMASGARD–5021–2672–256
THERMASGARD–5021–6672–256
THERMASGARD–5021–5672–256
THERMASGARD–5021–9672–256
THERMASGARD–5022–0672–256
THERMASGARD–5022–1672–256
THERMASGARD–5125–0672–256
Schéma de raccordement
sortie
Pt100
Pt1000
Ni1000
Ni1000 TK5000, LG - Ni1000
NTC 1,8k Ohm
NTC 20k Ohm
NTC 10k Ohm
NTC 10k Pre
KTY 81-210
LM235Z (TCR = 10 mV ⁄ K; 2,73 V à 0 °C), KP10
RS 485 (S-bus)
Schéma de raccordement
sortie
Pt100
Pt1000
Ni1000
Ni1000 TK5000, LG - Ni1000
NTC 1,8k Ohm
NTC 20k Ohm
NTC 10k Ohm
NTC 10k Pre
KTY 81-210
LM235Z (TCR = 10 mV ⁄ K; 2,73 V à 0 °C), KP10
RS 485 (S-bus)
FSTF xx PD4
FSTF xx P 2L 2T
