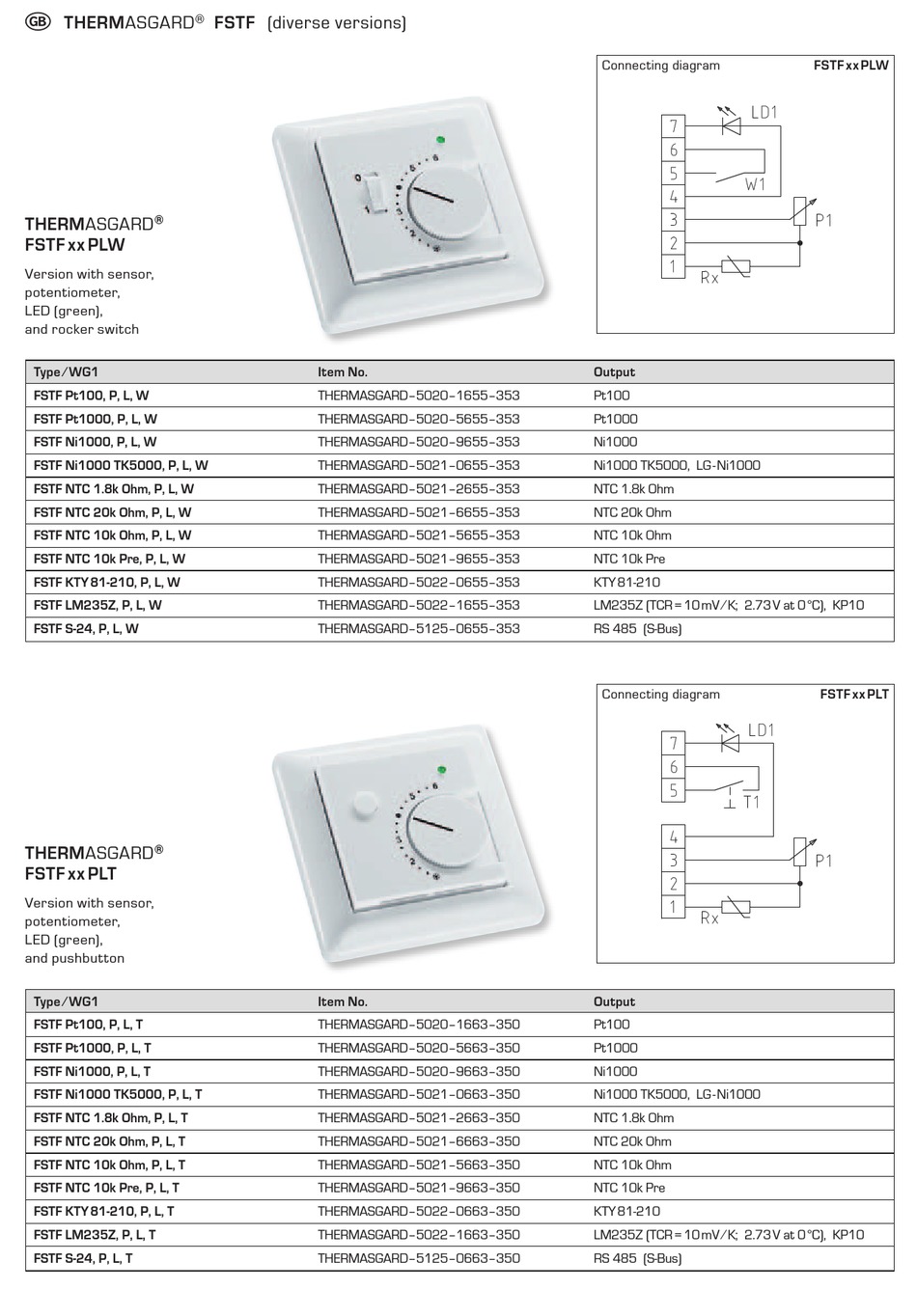

S+S REGELTECHNIK ThermAsgard FSTF Bedienungs- Und Montageanleitung Seite 13

G
®
THERMASGARD
®
THERMASGARD
FSTF xx PLW
Version with sensor,
potentiometer,
LED (green),
and rocker switch
Type ⁄ WG1
FSTF Pt100, P, L, W
FSTF Pt1000, P, L, W
FSTF Ni1000, P, L, W
FSTF Ni1000 TK5000, P, L, W
FSTF NTC 1.8k Ohm, P, L, W
FSTF NTC 20k Ohm, P, L, W
FSTF NTC 10k Ohm, P, L, W
FSTF NTC 10k Pre, P, L, W
FSTF KTY 81-210, P, L, W
FSTF LM235Z, P, L, W
FSTF S-24, P, L, W
®
THERMASGARD
FSTF xx PLT
Version with sensor,
potentiometer,
LED (green),
and pushbutton
Type ⁄ WG1
FSTF Pt100, P, L, T
FSTF Pt1000, P, L, T
FSTF Ni1000, P, L, T
FSTF Ni1000 TK5000, P, L, T
FSTF NTC 1.8k Ohm, P, L, T
FSTF NTC 20k Ohm, P, L, T
FSTF NTC 10k Ohm, P, L, T
FSTF NTC 10k Pre, P, L, T
FSTF KTY 81-210, P, L, T
FSTF LM235Z, P, L, T
FSTF S-24, P, L, T
FSTF (diverse versions)
Item No.
THERMASGARD–5020–1655–353
THERMASGARD–5020–5655–353
THERMASGARD–5020–9655–353
THERMASGARD–5021–0655–353
THERMASGARD–5021–2655–353
THERMASGARD–5021–6655–353
THERMASGARD–5021–5655–353
THERMASGARD–5021–9655–353
THERMASGARD–5022–0655–353
THERMASGARD–5022–1655–353
THERMASGARD–5125–0655–353
Item No.
THERMASGARD–5020–1663–350
THERMASGARD–5020–5663–350
THERMASGARD–5020–9663–350
THERMASGARD–5021–0663–350
THERMASGARD–5021–2663–350
THERMASGARD–5021–6663–350
THERMASGARD–5021–5663–350
THERMASGARD–5021–9663–350
THERMASGARD–5022–0663–350
THERMASGARD–5022–1663–350
THERMASGARD–5125–0663–350
Connecting diagram
Output
Pt100
Pt1000
Ni1000
Ni1000 TK5000, LG - Ni1000
NTC 1.8k Ohm
NTC 20k Ohm
NTC 10k Ohm
NTC 10k Pre
KTY 81-210
LM235Z (TCR = 10 mV ⁄ K; 2.73 V at 0 °C), KP10
RS 485 (S-Bus)
Connecting diagram
Output
Pt100
Pt1000
Ni1000
Ni1000 TK5000, LG - Ni1000
NTC 1.8k Ohm
NTC 20k Ohm
NTC 10k Ohm
NTC 10k Pre
KTY 81-210
LM235Z (TCR = 10 mV ⁄ K; 2.73 V at 0 °C), KP10
RS 485 (S-Bus)
FSTF xx PLW
FSTF xx PLT
