6.6 Fitting the remote panel:

ATTENTION
Check that the unit and its devices have suffered no damages
during transport. Pay special attention to the components
secured to the electric panel door and to the refrigerating circuit
pipes. Mount the unit as shown in the drawings; make sure that the
electric connections are carried out properly.
6.7

Safety devices

WARNING
Above devices have been developed to safeguard the operator's safety.

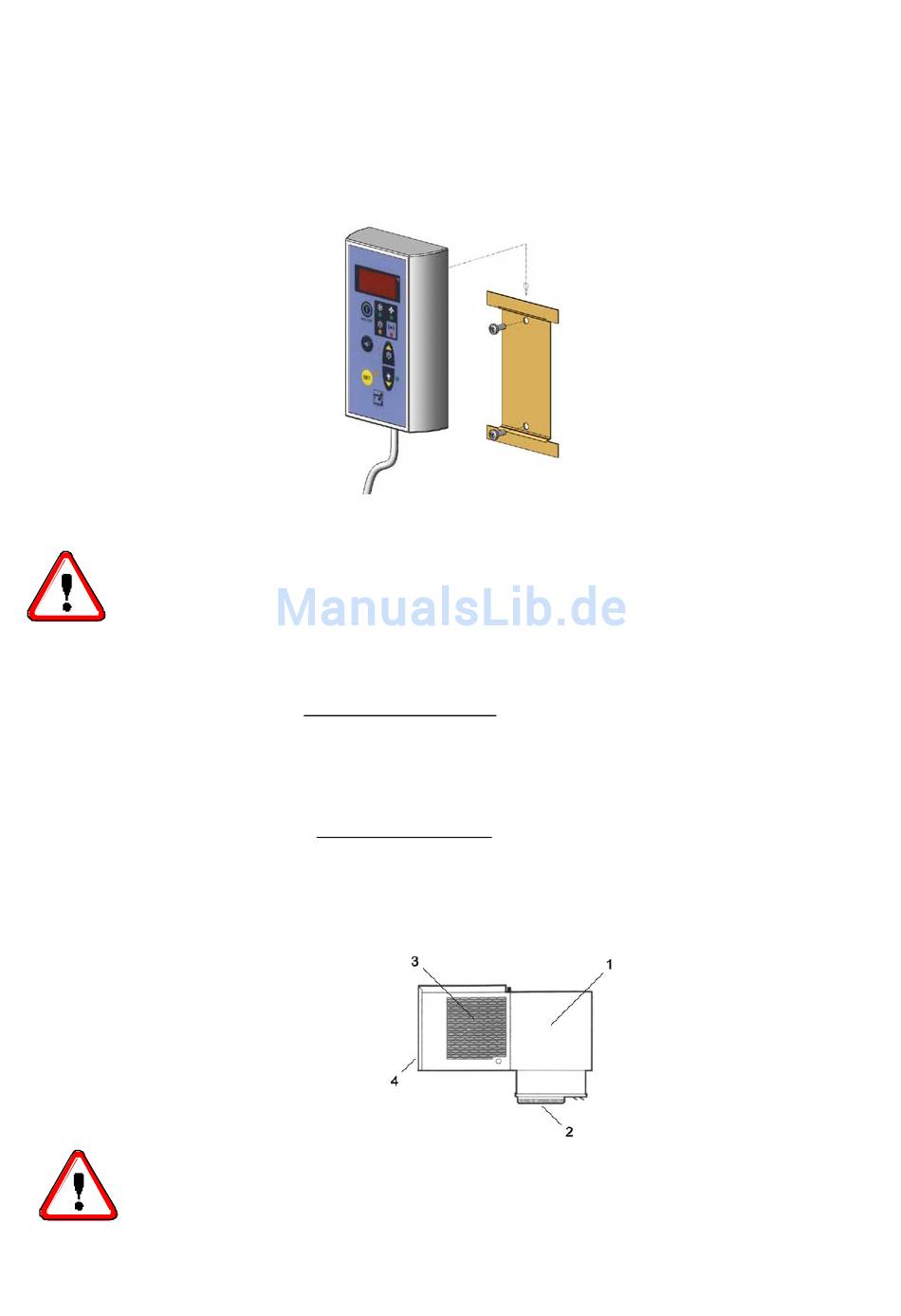

Fix the back plate to the wall using the pre-drilled holes; be careful the panel is kept in
a vertical position.
Fit the connecting cable between panel and unit making sure not to bundle it with other
cables.
mechanical safety devices
The following
1. Fixed upper and side protections for evaporator and condensing unit, secured by
locking screws.
2. External fan protections placed on the evaporating and condensing units, secured
with screws.
electrical safety devices
The following
a. Protection of fans (belonging to motors) against high power absorption; with
automatic reset.
b. High pressure switch (only for special components) to protect against excessive
pressure; with automatic reset.
are supplied:
are supplied:
