6.3 Location

6.4 Free room

When installing the unit leave enough free room to allow opening, correct use and easy
maintenance in safe conditions.

6.5 Installation

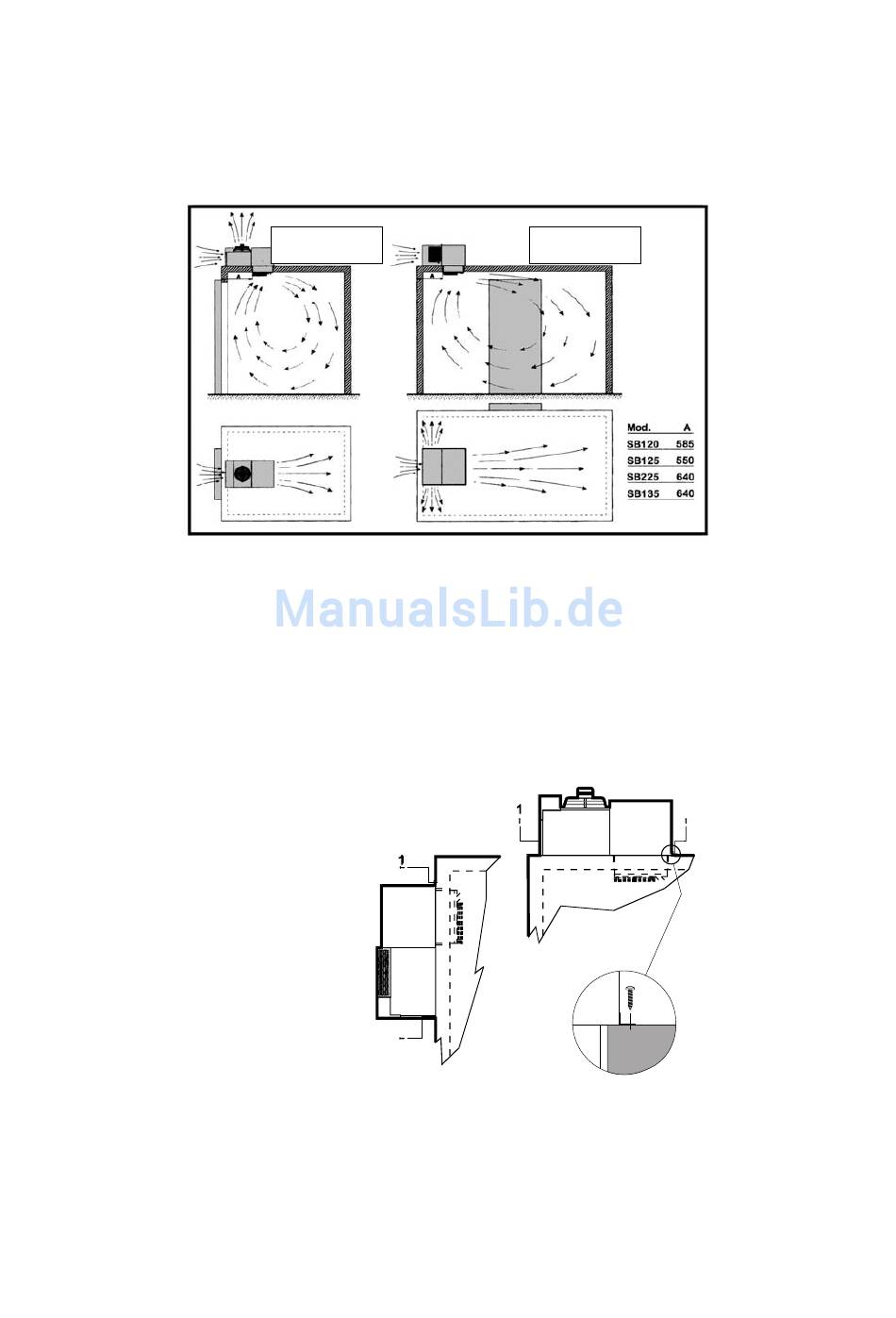

A) Prepare a opening with suitable dimensions in the cold room wall (see pictures above).
B) Fix the unit using the screws supplied.
To obtain optimal operation of the unit act as follows:
A) Place the unit in a well ventilated room, far from heat sources.
B) Limit the number of door openings.
C) Make sure that the unit has good air supply and discharge.
D) Fit a drain line to the defrost water drain connection in the lower part of the unit.
Note: SB units are equipped with automatic evaporation of defrost water; drain is just a
precaution in case of troubles.
Solution 1
Position the unit onto the cold room wall inserting the evaporator section in the opening.
Solution 2
