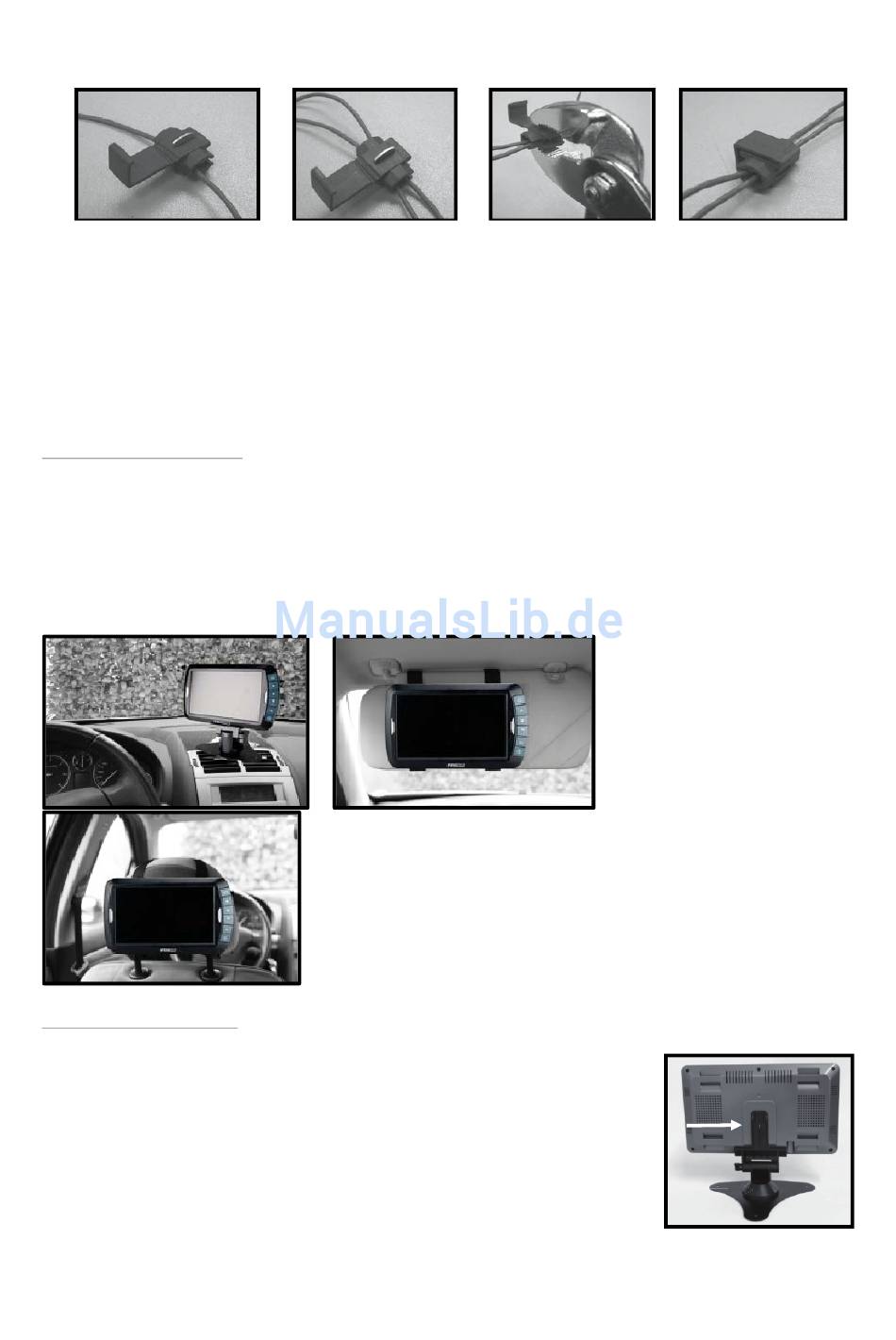

12. Connect the camera´s red wire using the supplied in-line wire connectors to the
reverse light's positive (+) wire. Use a set of slip joint pliers to squeeze them and
insure a good connection.
13. Connect the black wire of the camera´s power cable to the reverse light's negative (-)
wire or ground.
14. Reinstall the reverse light bulb and the light socket. Secure all the wires with cable
ties or electrical tape.
15. Re-attach the negative battery cable to the battery.
Monitor Installation
When choosing a location for the monitor, make sure the monitor is mounted in
an area that will not obstruct your vision while driving.
The DRC7010 can be fixed in your vehicle in several ways. The monitor can be placed on
your (A) dashboard via the dashboard stand or (B) fixed via the supplied straps on you
visor or a headrest.
A. Dashboard stand *
1. Before mounting the monitor, clean all adherends well. Put one
side of the double-faced adhesive tape on the bottom of the
dashboard stand.
2. Position the stand onto the dashboard
3. Press the stand against the dashboard surface to fix the
location.
4. Snap in the monitor to the stand´s mounting arm.
5. Adjust the mounting arm to suit your viewing angle to the
monitor.
6. In order to remove the monitor, press the arrow sign on the mounting arm to release.
