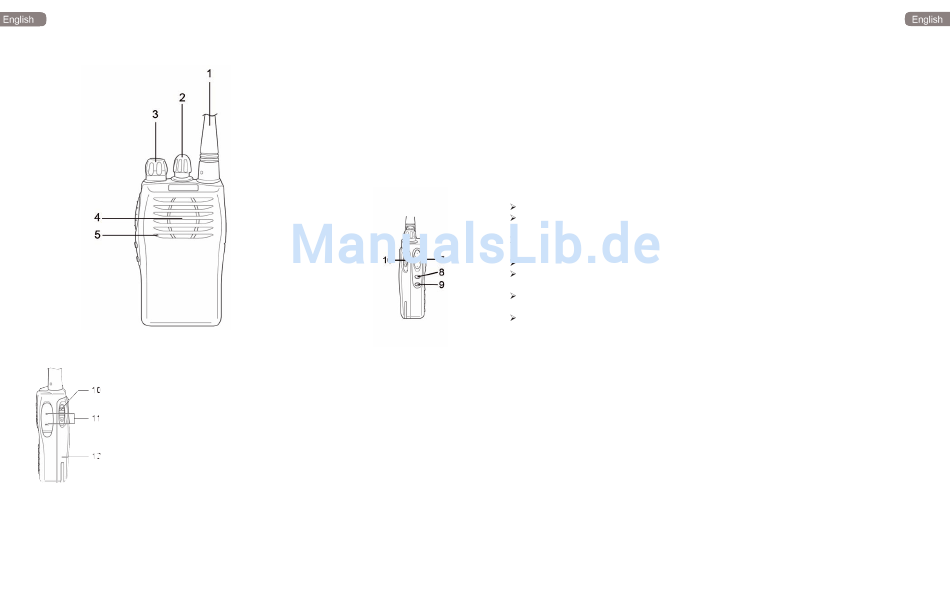

Legend - Controls and Other Parts
1 Antenna
2 Rotary Channel Selector
3 ON / OFF and Volume Knob
4 Speaker
5 Microphone
10 Battery Pack Lock
11 Jacks for external Ear- / Microphone
12 Battery Pack
14
7 PTT key
8 Dual-Function-Key 1*
9 Dual-Function-Key 2*
10 Battery Pack Lock
* = The Dual-Function-Keys 1 and 2
can be programmed with the
following functions :
> No Function
> Monitor
> Scan On/Off
> Scan Temporarily Delete
> TX-Power High / Low
> Frequency
> Scrambler
Unpacking
Carefully unpack the giftbox and check the content for completeness. If any items are missing or
damaged, please contact your dealer immediately.
Scope of Delivery:
1 x TeCom-FM incl. Antenna
1 x Battery Pack
1 x Charger-Mould and Adapter
1 x Belt Clip
1 x Manual
Maintenance
Please follow these instructions for your radios longevity.
Please do not open the radio. Damages may occur.
For charging the battery pack of the TeCom-FM, please use only the charger that is included
in the scope of delivery.
Do not expose the radio to direct sunlight or heat. High temperatures can shorten the life of
certain electronic parts in your radio. Further, plastic parts can be deformed.
Please do not store the radio in dusty or dirty areas.
Always keep the radio dry . Please do not expose your
electronic circuits can occur.
In case the radio omits smoke or an unusual smell or is very hot, please turn the radio of f and
remove the battery pack instantly. Contact your dealer immediatly.
Never transmit without an antenna. A damage of the power amplif er may occur.
Features
+ Max. Output Power
FreeNet: 500 mW VHF
PMR : 500 mW UHF
> 16 Channels available
UHF : 400 - 470 MHz VHF
PMR : 8 PMR Channels FreeNet: 6 FreeNet Channels
> Bandwidth
FreeNET/PMR :12.5 kHz
UHF/VHF : 12.5 kHz/25 kHz
> Scan - Programmable Scanlist *
> 2 Programmable Twin-Function-Keys (short/long) : Monitor, Squelch, Scan, Scan Temporarily
Delete, TX-Power, Frequency Reverse, VOX, Scrambler
> 50 CTCSS- or 210 DQT-Codes *
> Busy Channel Lockout *
> Integrated VOX-Function *
> Beeptone *
> Programmable Call-Tone (max. 8-Tone-Series with 3 Tones)*
> Call-Tone-Placement (pre- and/or post-transmission *
> Transmit- / Battery-Warn-Tone
GENERAL
TeCom-XP to liquids of any kind, corriosion of the
: 5 W
: 4 W
: 136 - 174 MHz
