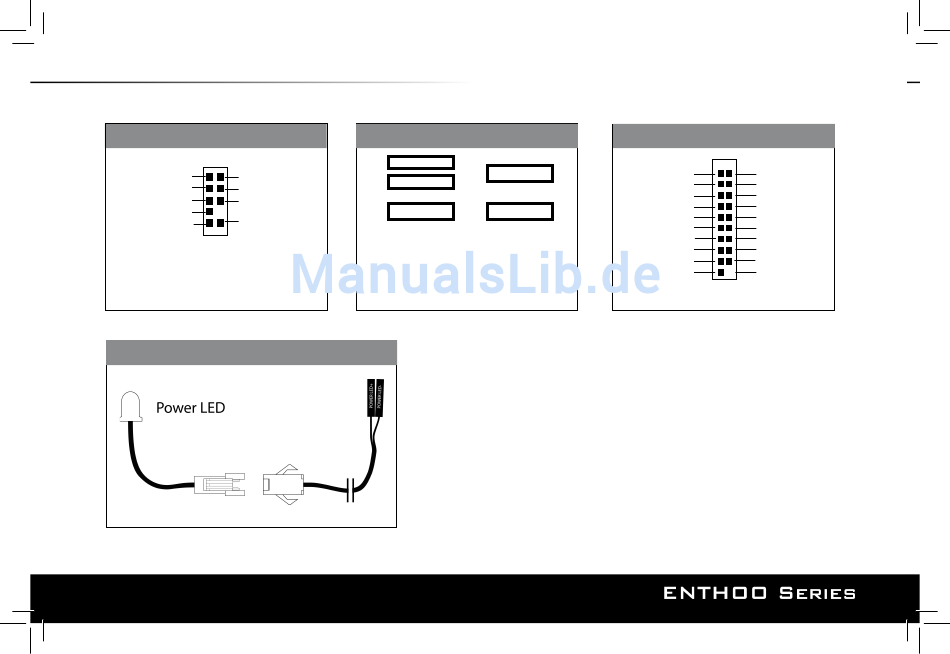

7. CONNECTIONS
AUDIO
MIC2 L
AGND
MIC2 R
AVCC
FRO-R
MIC2_JD
F_IO_SEN
LINE2_JD
FRO-L
FRONT LED
12
PANEL
Power LED +
Reset SW
Power LED -
Power SW
H.D.D LED
USB 3.0
ID
IntA P2_D+
IntA P2_D-
IntA P1_D+
GND
IntA P1_D-
IntA P2_SSTX+
GND
IntA P2_SSTX-
IntA P1_SSTX+
IntA P1_SSTX-
GND
IntA P2_SSRX+
GND
IntA P1_SSRX+
IntA P2_SSRX-
IntA P1_SSRX-
Vbus
Vbus
No Pin
