2. Attach both fasteners (item no 2) on the whiteboard using four self-tapping screws (item no 6).
Lower edge of the
fastener (item no 2)
3. Drill six holes in the wall using drill as shown in Figure 3, namely: four holes for two hooks (item no
1) and two holes for two wall brackets (item no 3). Before drilling the holes, measure and confirm the
following distances:
• H1: the distance between two hooks at the top (item no 1) = 100 cm
• H2: the distance between two fasteners at the bottom (item no 3) = 100 cm
rysunek
Notes:
• Make sure that the distance between bottom fastener (item no 3) and the floor ranges between 700 and
800 mm.
• Make sure that the arrangement of six mounting holes drilled in the wall matches the whiteboard size.
4. Insert the wall anchor into each hole.
5. Mount two hooks (item no 1) and two fasteners (item no 3) on the wall using six self-tapping screws
(item no 5).
6. Secure the fasteners (item no 2) to the back of the whiteboard using self-tapping screws (item no 6).
7. Hang the whiteboard on the wall.
8. Adjust the arrangement of two wall-mounting brackets (item no 3) using two self-tapping screws (item
no 6) as shown in Figure 1 to properly mount the whiteboard.

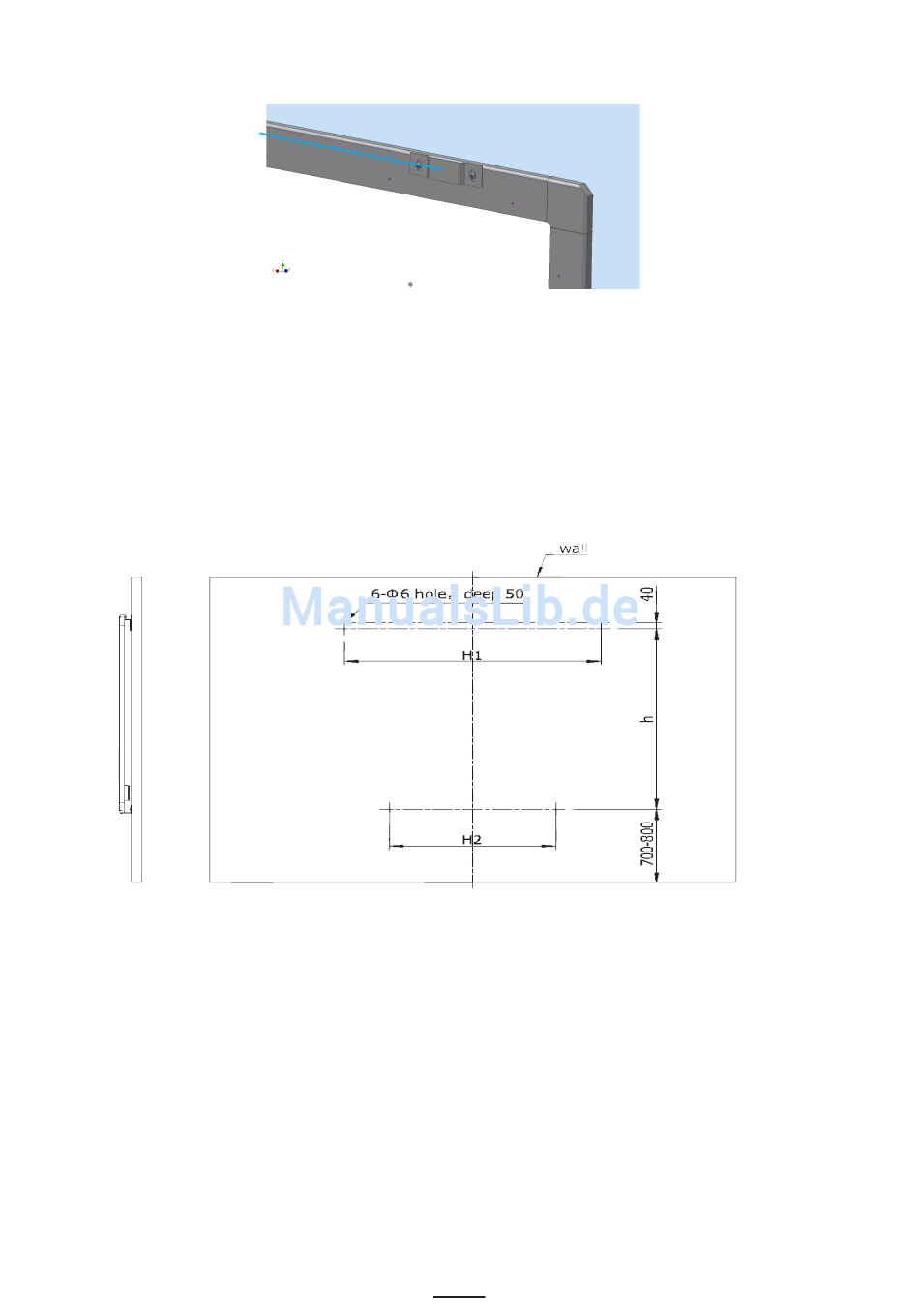

Figure 2 . Mounting the fastener on the whiteboard upper frame
Figure 3 . Spacing of holes in the wall
