2. Mounting the interactive whiteboard
Following procedures show how to mount the TT-Board 3000/4000 interactive whiteboard on a wall.
1. Before installation, make sure that all required mounting accessories are provided.
Mounting parts
Number
1 Wall-mounted hook
2 W h i t e b o a r d - m o u n t e d
fastener
3 Wall-mounted fastener
4 Wall anchor
5 Self-tapping screw
6 Self-tapping screw

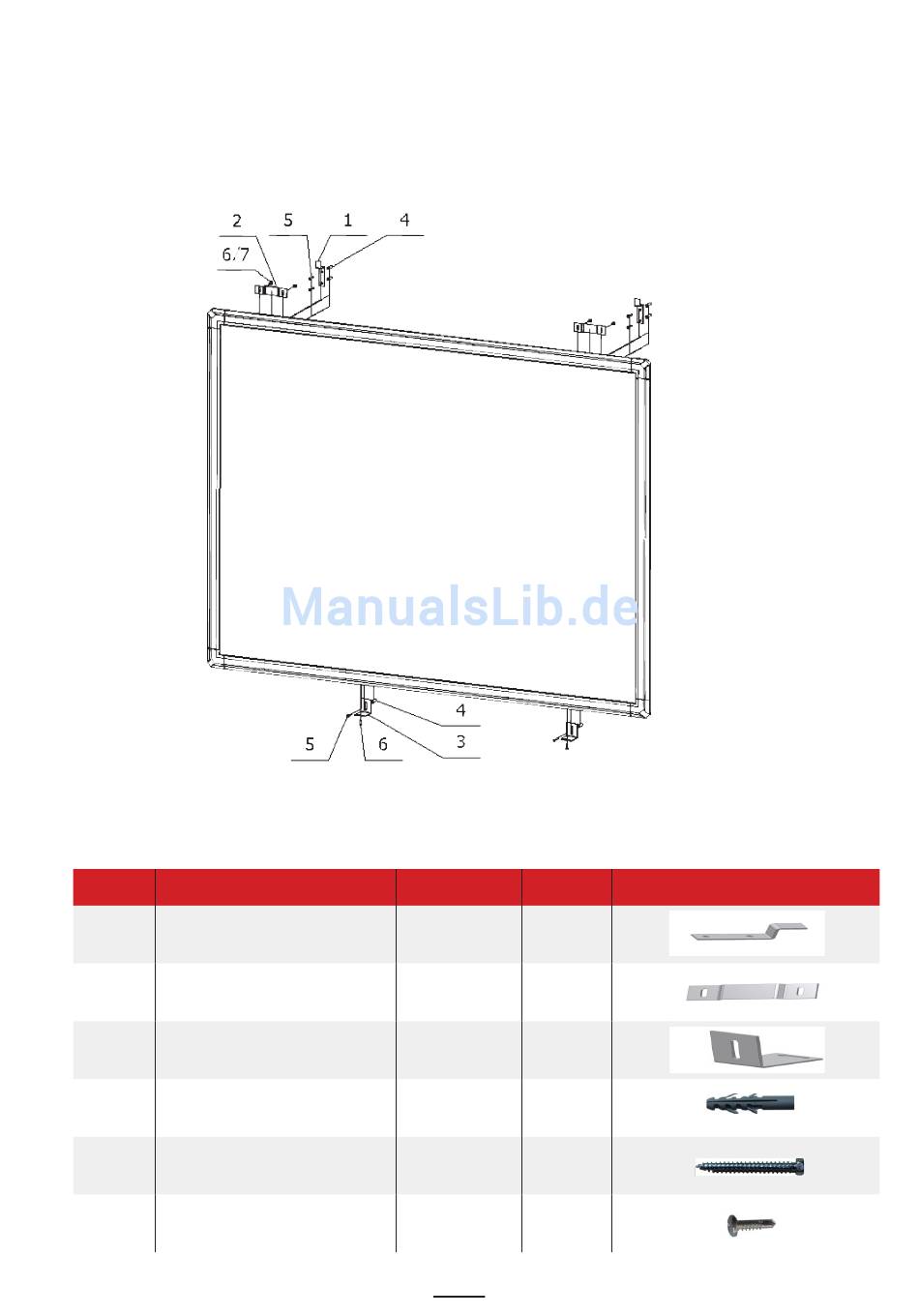

Figure 1 . Wall-mounting brackets
Name Specification Quantity
S t a n d a r d
accessories
S t a n d a r d
accessories
S t a n d a r d
accessories
M6 x 30
M4 x 30
M4 x 16
2
2
2
6
6
6
10
