OTm Digi
afb. 04 Inputs and outputs of the
Base station
T001084
3. Connect the OpenTherm connection of
5Vdc
the boiler to the OpenTherm connection
of the Base station (green, indicated by
0 +
OTm). It makes no difference here which
wire is connected to what contact point
of the OpenTherm connection.
T001084-B

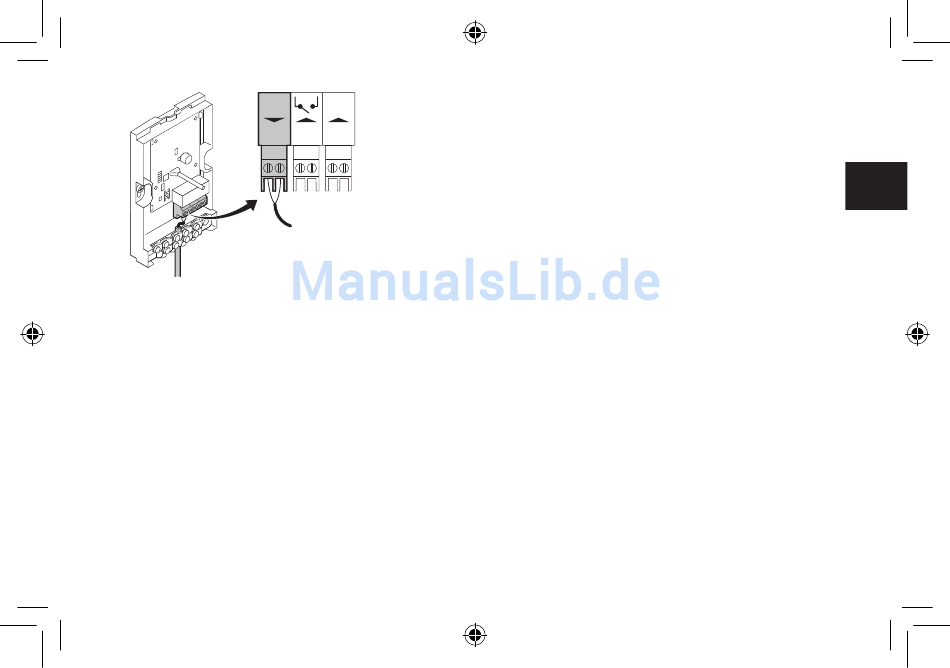

4. If necessary, connect the wire for the
digital input to the orange connection,
indicated by DIGI.
See the installation and service manual
of the iSense RF for information about
the functions of the digital input.
EN
25
