SETUP

In order to allow for a wide variety of configuration options, the LD Systems CURV 500
below is a representative setup of the LD CURV 500
pages of this user's manual.

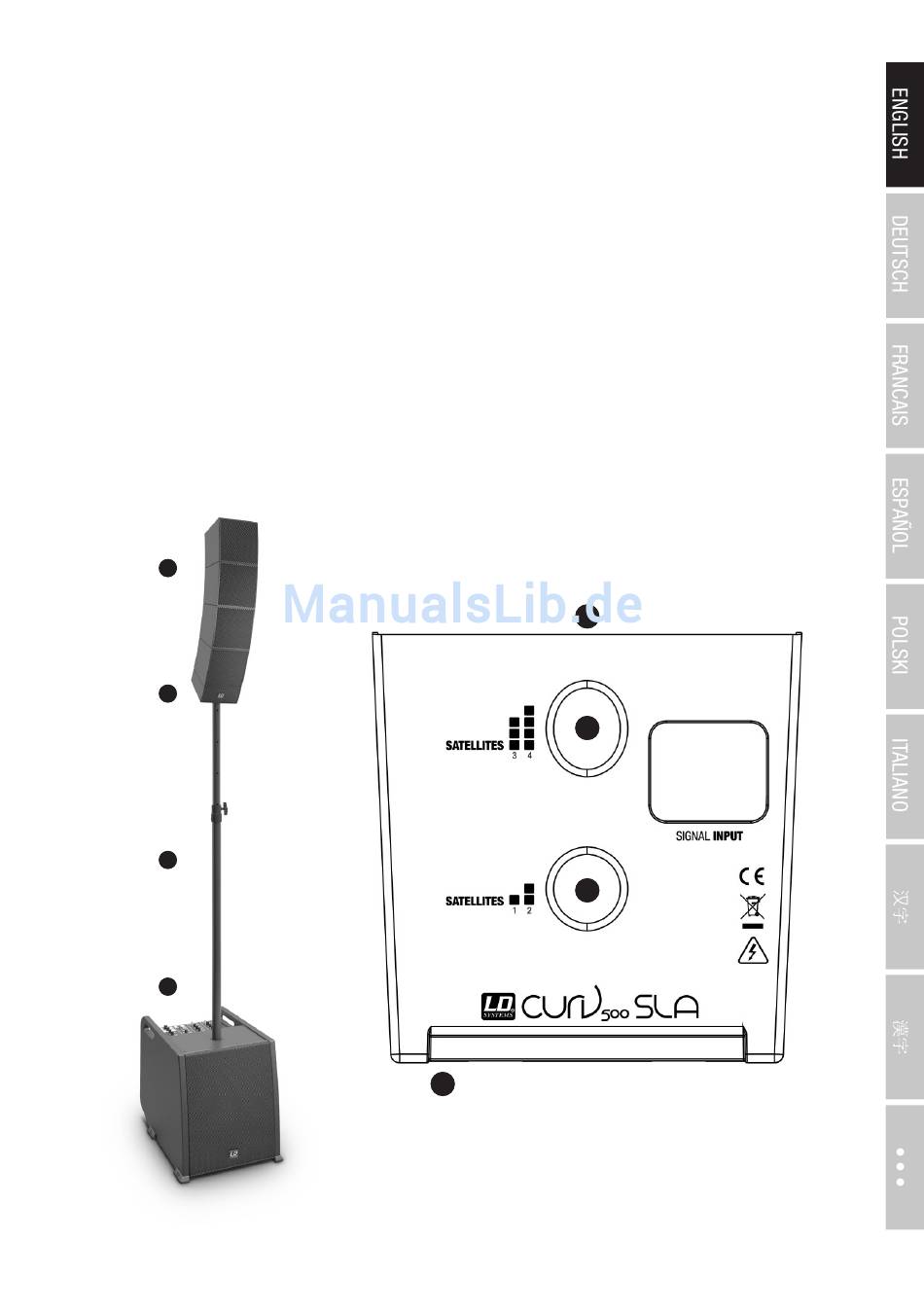

The LD CURV 500 ES Entertainer Set consists of 4 components:
®
A. subwoofer with mixer, built-in DSP (digital signal processor) and class-D power amplifier for the system components.
B. height adjustable spacer bar.
C. SmartLink adapter as the base for up to 4 CURV 500
®
D. Four CURV 500 array satellites with the patented click mechanism and WaveAhead
®
Once the subwoofer (A) has been placed in the desired location, the spacer bar (B) is screwed into the subwoofer (flange on the top). When
using 1 or 2 CURV 500 satellites, plug the SmartLink
®
the top of the spacer bar; when using 3 or 4 CURV 500
F). Now slide a CURV 500 satellite (D) from the rear onto the SmartLink
®
button on the side of the satellite. Ensure that the two guide rails of the satellite properly slide into the grooves of the SmartLink
in order to ensure a tight fit and establish a contact for both components. Now release the button to lock the connection and to bring the
button back to its original position. Proceed in the same manner as described above to add other satellites. Now connect the speaker output
SATELLITE OUT of the CURV 500
cable. When disassembling, please proceed in reverse order. For fixed installations and desktop applications, a terminal block connector (fig.
H, terminal block included) is located on the back of the SmartLink
terminal block connector (H).
