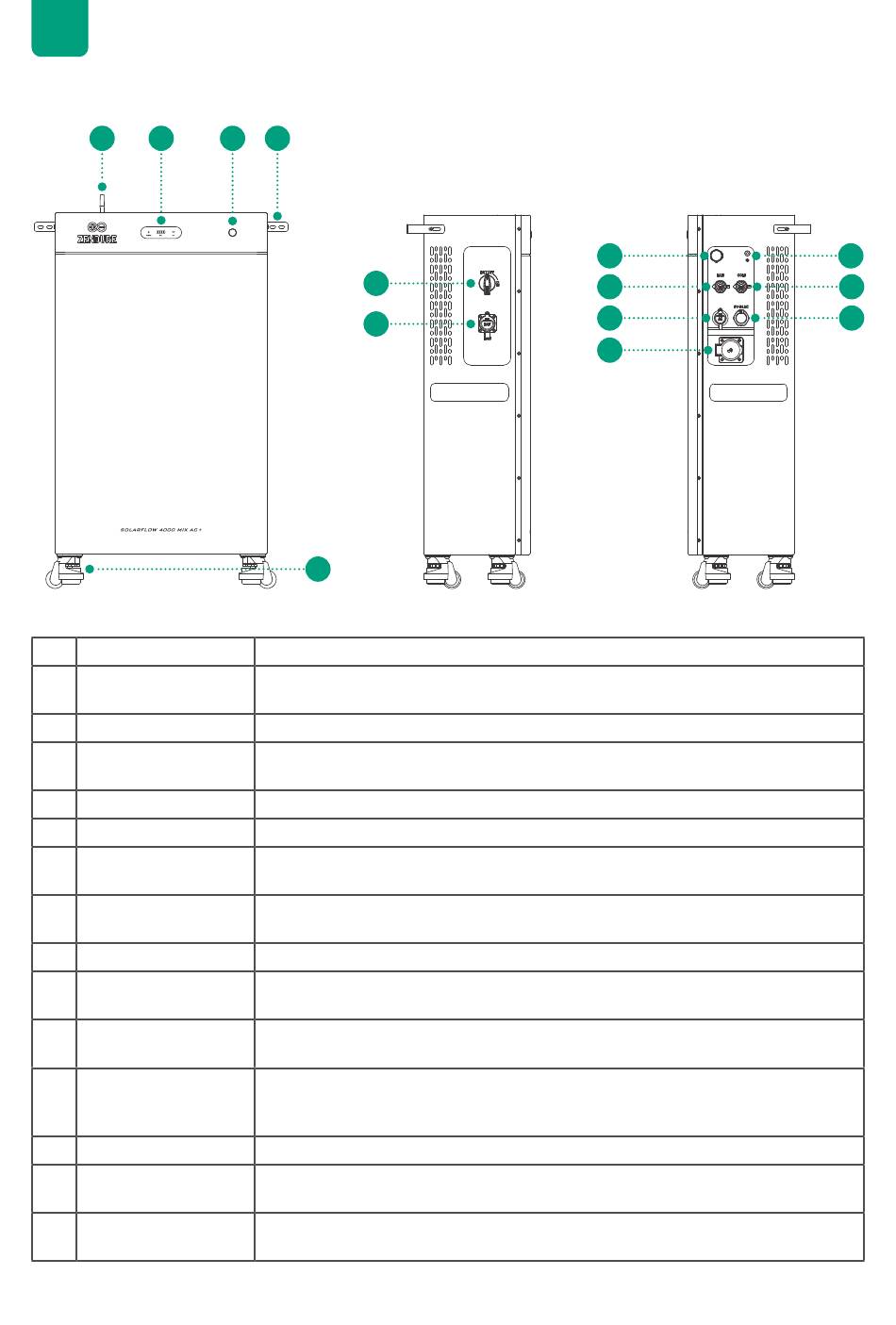

7.2 SF4000 Mix AC+

1 2
No. Item
Wall-Mount
1
Accessories
2 Antenna
LED Status Indicator
3
Panel
4 Power Button
5 Caster Wheel
Battery Isolator
6
Switch
Battery expansion
7
terminals
8 Pressure Relief Valve
Grounding Screw
9
Hole
10 LAN Port
485 Communication
11 Port (RS485 / CAN /
Sync Signal)
12 AC Grid Port
PV-IN AC (PV Inverter
13
Input)
AC Off-Grid Port
14
(Schuko Socket)
3 4
6
7
5
Notes
Used together with expansion bolts and mounting screws for wall installation.
Foldable antenna. Extend it before use.
Includes the IoT status indicator, battery status indicator, and power indicator.
For detailed button operation logic, refer to the LED Indicator Guide.
Combines roller and foot support in one.
Isolates the battery circuit. Set to OFF before installation, maintenance, or
connecting/removing battery packs.
Connects to external expansion battery packs to increase system capacity.
Supports up to 6 battery packs.
Prevent pressure build-up inside the enclosure.
Connect the product enclosure to protective earth or equipotential bonding as
required by local regulations.
Supports connecting the SF4000 to a home router via an RJ45 Ethernet cable
to reduce latency and improve stability.
Supports connecting the SF4000 to the Zendure Smart 3CT-S/1CT-S
Max. output supported: 5000 W
Supports connection of a third-party PV inverter, max. input 5000 W.
Supports off-grid loads and external AC-coupled PV; max. supported power:
3680 W.
