NOTE:
During use of the unit, the telescopic tube must be extended
completely to ensure an unimpeded flow of steam through
the steam hose.

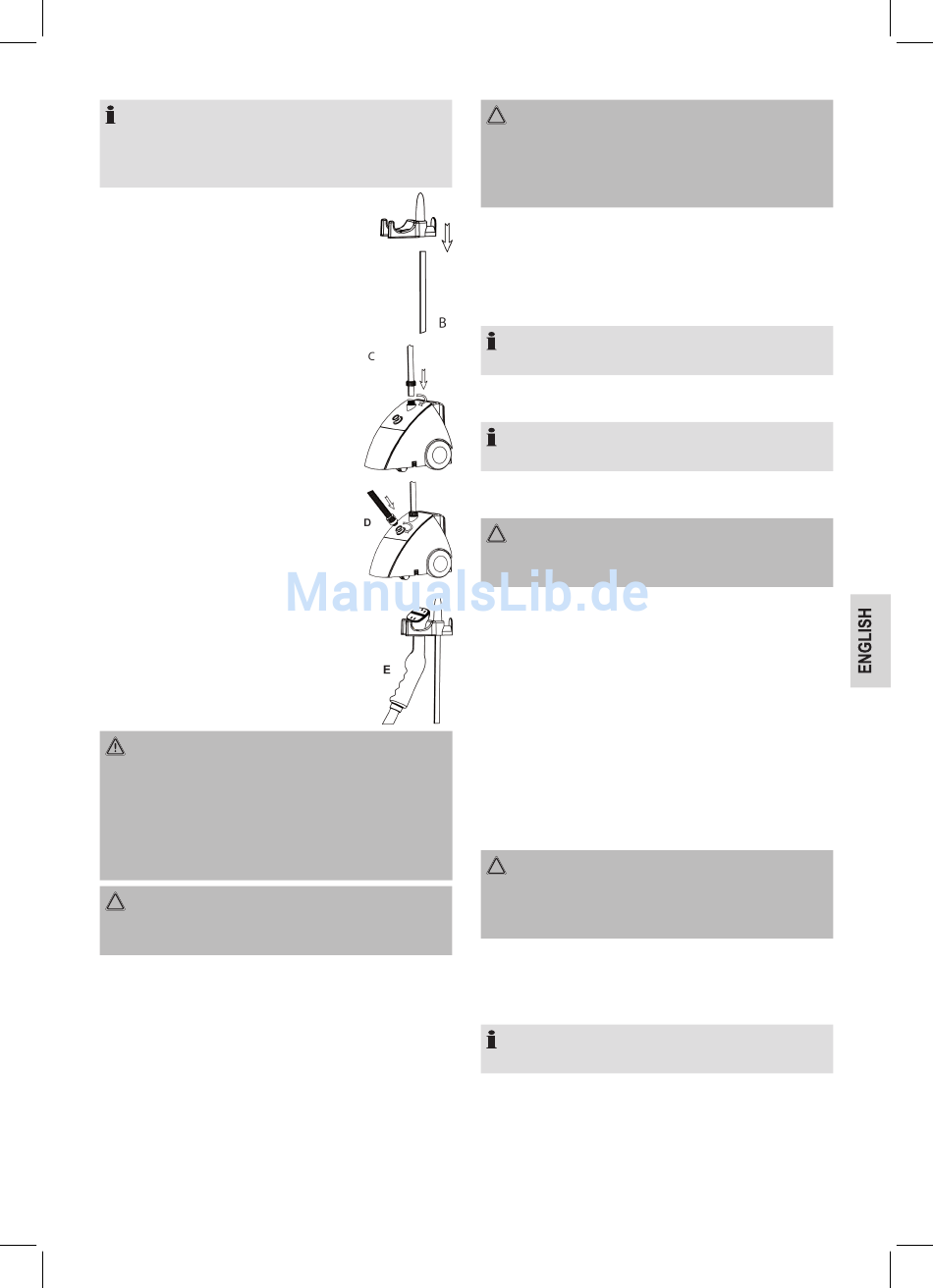

2. Align the tabs of the bracket and the recesses
in the telescopic tube with each other and set
the bracket to the telescopic tube (Fig. B).
3. Insert the telescopic tube into the holder in
the unit (Fig. C).
4. Turn the telescopic tube so that the holder
for the nozzle points to the rear of the
unit. This increases the stability of the unit
when a garment is hung on the hanger.
5. Tighten the cap nut.
6. Connect the connection piece to the unit
(Fig. D). The arrow on the connection
piece must point to the unlock symbol on
the unit.
7. Turn the connection piece clockwise until
the arrow points to the lock symbol.
8. Hang the nozzle in the holder (Fig. E).
9. Attach the brush attachment to the nozzle.
The brush attachment is used to remove as
lint, hair, or loose threads.
10. Set the hanger to the bracket.
11. Pull both ends of the hanger outward until
they lock.
WARNING:
• Always suspend the nozzle from the holder when it is not
used, in order to avoid injuries or damage to surfaces
from escaping steam.
• Do not place the steam hose on the ground to avoid
condensation and thus unwanted water droplets in the
steam.
cAUTION:
Make sure that the steam hose is not stretched, squashed, or
kinked. Do not operate the unit with a damaged steam hose.

Electrical connection

• Make sure that the iron voltage (see name plate) and the
line voltage match.
• The mains plug should only be inserted into a correctly
installed socket with earthing contact.
Connected Wattage
The unit can draw a total power of 1500 W. With this connected
load a separate supply line protected by a 16 A household
circuit breaker is recommended.
CAUTION: Overload!
• If you use extension leads, these should have a cable
cross-section of at least 1.5 mm².
• Do not use any multiple sockets, as this device is too
powerful.
Operation
Operate the unit
1. Remove the water tank from the unit, turn it over, and
unscrew the valve cap.
NOTE:
Use distilled water to increase the lifespan of the unit.
2. Fill water into the water tank and seal the tank again with
the valve cap.
NOTE:
Use only the supplied water tank.
3. Replace the water tank in the unit. For a short while, water
flows into the unit.
cAUTION:
Never operate the unit without water. This can damage the
unit.
4. Plug the power plug into a correctly installed safety socket.
5. Set the On/Off switch to "ON". The pilot lamp in the switch
lights up. Steam is available after approximately 45 sec-
onds.
6. To straighten your clothes, hold the nozzle at the handle
and aim the steam towards the clothes.
7. After use, set the On/Off switch to "OFF".
Ironing with steam
1. To smooth a piece of clothing with steam, hang it on the
hanger or attach it to the bottom of the hanger. Set the
hanger to the holder. For horizontal work, place the clothes
on a clean, flat surface.
CAUTION:
• When using the clothes hanger, take care not to pull too
much on the clothes. The unit may tip over.
• Hot steam could escape from small holes in the fabric.
2. Hold the nozzle at the handle and keep the nozzle in the
lower part of the clothes. The steam will rise both the inside
as well as on the outside and will remove wrinkles. Move
the nozzle slowly from the bottom up over the fabric.
NOTE:
Make sure that the steam hose is not kinked.
3. Remove the nozzle from the fabric and smooth it by hand.
4. Repeat the steps 2 and 3 until all wrinkles have been
removed.
5. For horizontal application, hold the nozzle at a distance of
approximately 10 cm above the fabric.
