Zeiss DIGISCOPING ADAPTER Kurzanleitung Seite 11

(2)
(1)
Mounting the smartphone adapter
Place your smartphone in the smartphone adapter (1) (Fig. 1). Secure the smartphone
by tightening the star knob (Fig. 2)
adapter (Fig. 3).
Loosen the star knob on the rear to position the adjustment arm (2) over the main
lens (Fig. 4). Secure the adjustment arm by tightening the star knob (Fig. 5). The
Identifying the main camera
Turn on the smartphone's camera app. Make sure that no zoom is set. On most
above all the lenses to see which camera is recording – this is the main camera. If your
smartphone switches automatically between the camera lenses when the adapter is
attached, close the camera app and restart it with the adapter mounted. On some
smartphones, it may also help to deactivate the focus enhancer in the camera settings.
Mounting the eyepiece adapter
Mount the eyepiece adapter (3) on the left eyecup of the binoculars or the eyecup
of the spotting scope (Fig. 7). Secure the eyepiece adapter by tightening the screw
(Fig. 8)
magnetically.

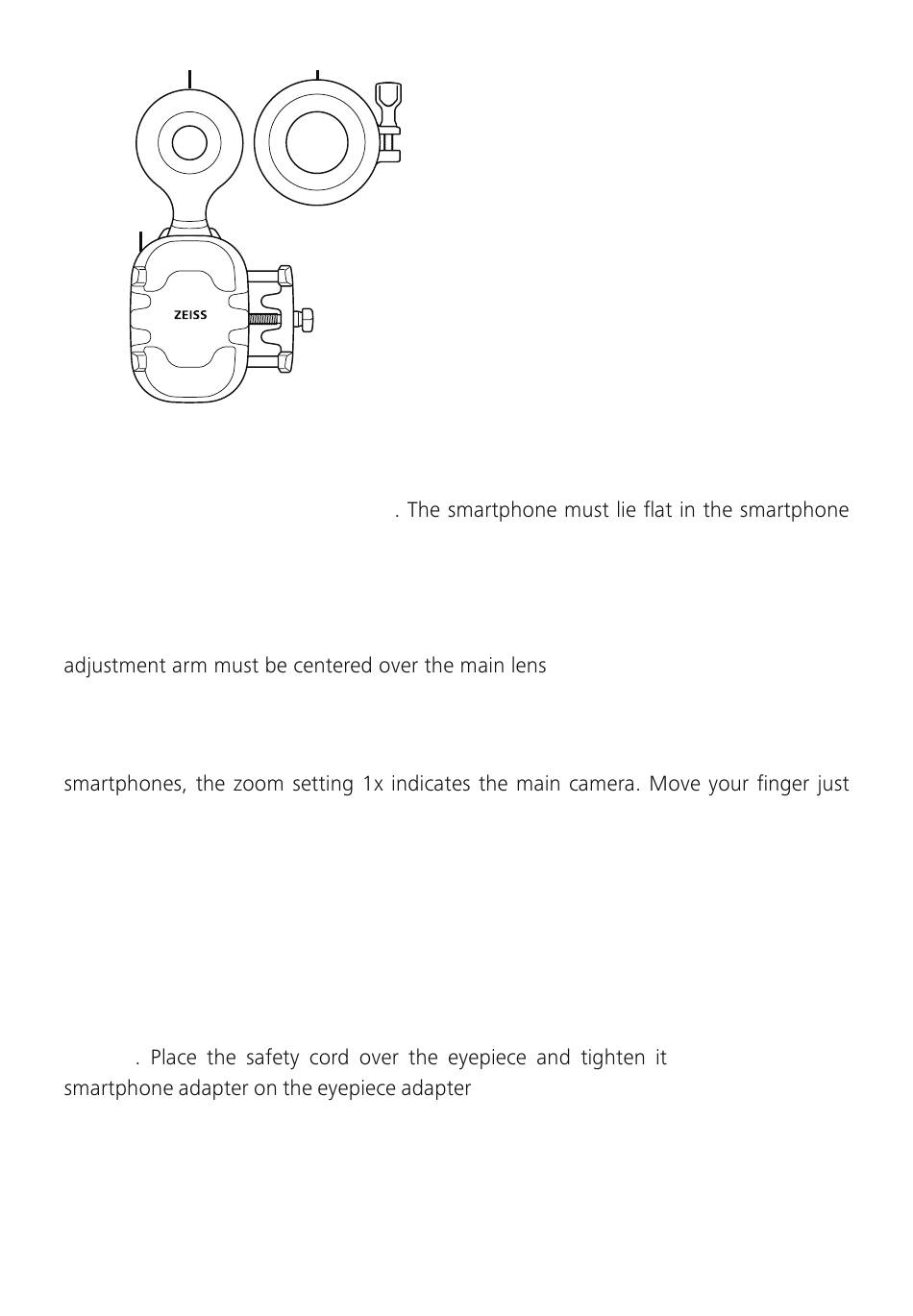

DESCRIPTION OF THE COMPONENTS
(3)
1. Smartphone adapter
2. Adjustment arm
3. Eyepiece adapter
(Fig. 10). The adapters are held together
(Fig. 6).
(Fig. 9). Place the
11
