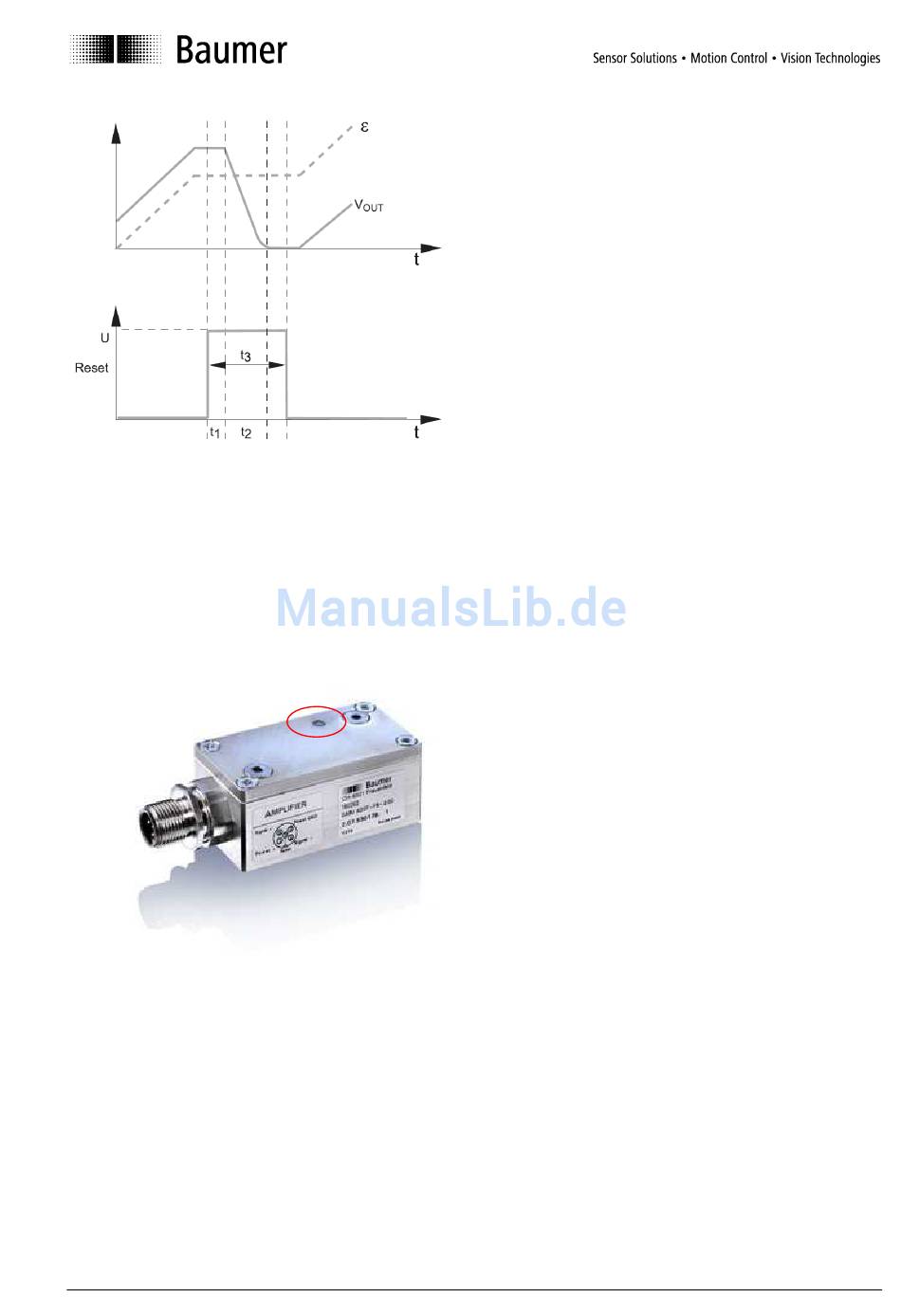

DABU AD2T-2Q:
V Output signal
OUT
Input signal
ε
Reset Reset input (active high)
t Reset delay (< 0.3ms)
1
t Reset time (< 5ms)
2
t Reset impulse (> 1ms)
3
4.4

Error message via LED

The amplifier DABU AD2T has an integrated LED, which will be turned on in case of error.
The following errors may occur:
1. The reset range of +/-6mV/V has exceeded and it is not possible to reset the amplifier.
2. The cable is broken or not connected properly, reset is not possible.
