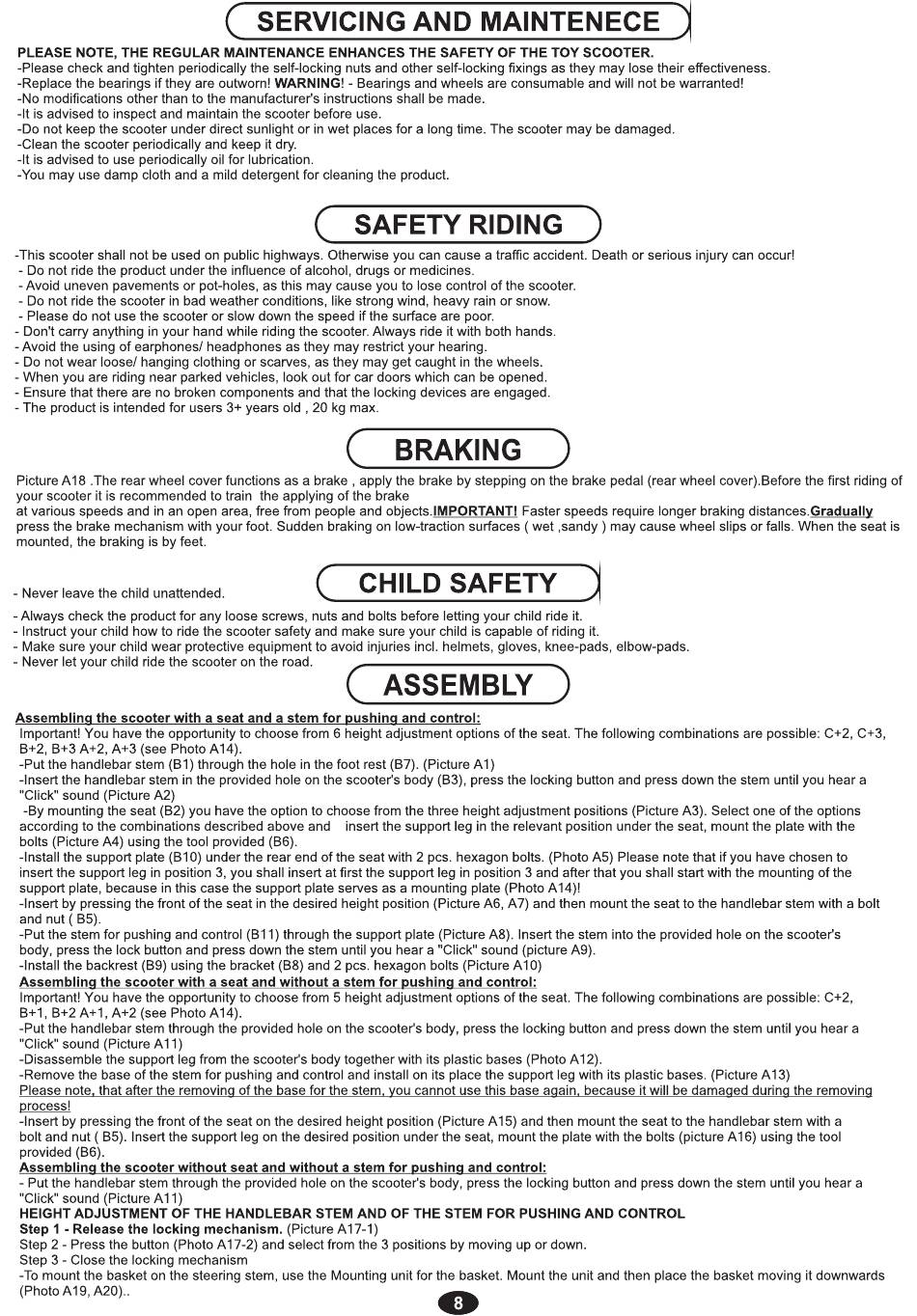

PLEASE NOTE, THE REGULAR
-Please check and tighten periodically the self-locking nuts and other self-locking fixings as they may lose their effectiveness.
-Replace the bearings they are outworn! WARNING! - Bearings and wheels are consumable and will not be warranted!
-No modifications other than
-It is advised to inspect and maintain the scooter before use.
-Do not keep the scooter under direct sunlight or in wet places for a long time. The scooter may be damaged.
-Clean the scooter periodically and keep it dry.
-It is advised to use periodically oil for lubrication.
-You may use damp cloth and a mild detergent for cleaning the product.
-This scooter shall not be used on public highways. Otherwise you can cause a traffic accident. Death or serious injury can occur!
- Do not ride the product under the influence of alcohol, drugs or medicines.
- Avoid uneven pavements or pot-holes, as this may cause you to lose control of the scooter.
- Do not ride the scooter in bad weather conditions, like strong wind, heavy rain or snow.
- Please do not use the scooter or slow down the speed if the surface are poor.
- Don't carry anything in your hand while riding the scooter. Always ride it with both hands.
- Avoid the using of earphones/ headphones as they may restrict your hearing.
- Do not wear loose/ hanging clothing or scarves, as they may get caught in the wheels.
- When you are riding near parked vehicles, look out for car doors which can be opened.
- Ensure that there are no broken components and that the locking devices are engaged.
- The product is intended for users 3+ years old , 20 kg max.
Picture A18 .The rear wheel cover functions as a brake , apply the brake by stepping on the brake pedal (rear wheel cover).Before the first riding of
your scooter it is recommended to train the applying of the brake
at various speeds and in an open area, free from people and objects.lMPORTANT!
press the brake mechanism with your foot. Sudden braking on low-traction surfaces ( wet ,sandy ) may cause wheel slips or falls. When the seat is
mounted, the braking is by feet.
- Never leave the child unattended.
- Always check the product for any loose screws, nuts and bolts before letting your child ride it.
- Instruct your child how to ride the scooter safety and make sure your child is capable of riding it.
- Make sure your child wear protective equipment to avoid injuries incl. helmets, gloves, knee-pads, elbow-pads.
- Never let your child ride the scooter On the road.
Assembling the scooter with a seat and a stem for pushing
Important! You have the opportunity to choose from 6 height adjustment options Ofthe seat. The following combinations are possible: C+2, C+3,
B+2, 8+3 A+2, A+3 (see Photo A14).
-Put the handlebar stem (B 1) through the hole in the foot rest (B7). (Picture A1 )
-Insert the handlebar stem in the provided hole on the scooter's body (83), press the locking button and press down the stem until you hear a
"Click" sound (Picture A2)
-By mounting the seat (82) you have the option to choose from the three height adjustment positions (Picture A3). Select one of the options
according to the combinations described above and
bolts (Picture A4) using the tool provided (B6).
-Install the support plate (B 10) under the rear end of the seat with 2 pcs. hexagon bolts. (Photo A5) Please note that if you have chosen to
insert the support leg in position 3, you shall insert at first the support leg in position 3 and after that you shall start with the mounting Ofthe
support plate, because in this case the support plate serves as a mounting plate (Photo A 14)!
-Insert by pressing the front of the seat in the desired height position (Picture A6, A7) and then mount the seat to the handlebar stem with a bolt
and nut ( B5).
-Put the stem for pushing and control (Bl 1) through the support plate (Picture A8). Insert the stem into the provided hole on the scooter's
body, press the lock button and press down the stem until you hear a "Click" sound (picture A9).
-Install the backrest (B9) using the bracket (88) and 2 pcs. hexagon bolts (Picture A 10)
Assembling the scooter with a seat and without
Important! You have the opportunity to choose from 5 height adjustment options of the seat. The following combinations are possible: C+2,
8+1, B+2 A+l, A+2 (see Photo A 14).
-Put the handlebar stem through the provided hole on the scooter's body, press the locking button and press down the stem until you hear a
"Click" sound (Picture A11)
-Disassemble the support leg from the scooter's body together with its plastic bases (Photo A12).
-Remove the base of the stem for pushing and control and install on its place the support leg with its plastic bases. (Picture A13)
Please note. that after the removing of the base for the stem. you cannot use this base again. because it will be damaqed during the removing
process!
-Insert by pressing the front of the seat on the desired height position (Picture A 15) and then mount the seat to the handlebar stem with a
bolt and nut ( B5). Insert the support leg on the desired position under the seat, mount the plate with the bolts (picture A 16) using the tool
provided (B6).
Assembling the scooter without
- Put the handlebar stem through the provided hole on the scooter's body, press the locking button and press down the stem until you hear a
"Click" sound (Picture A11)
HEIGHT ADJUSTMENT OF THE
Step 1 - Release the locking
Step 2 - Press the button (Photo A17-2) and select from the 3 positions by moving up or down.
Step 3 - Close the locking mechanism
-To mount the basket on the steering stem, use the Mounting unit for the basket. Mount the unit and then place the basket moving it downwards
(Photo A19, A20)..
SERVICING
MAINTENANCE ENHANCES
to the manufacturer's instructions
SAFETY
CHILD
insert the support leg in the relevant position under the seat, mount the plate with the
a stem for pushing
seat and without a stem for pushing
HANDLEBAR STEM AND
mechanism. (Picture A17-1)
AND MAINTENECE
THE SAFETY OF THE TOY SCOOTER.
shall be made.
RIDING
BRAKING
Faster speeds require longer braking distances-Gradually
SAFETY
ASSEMBLY
and control:
and control:
and control:
OF THE STEM FOR PUSHING AND CONTROL
