ASSEMBLY INSTRUCTION

• Make sure that there are no children or animals in the area in which the awning
will be installed.
• At least 3 people should install the awning. Contact a professional installer if
you are uncertain how ta install the awning.
• Unpack all the parts and place them near the intended awning installation location.
Make sure all the parts are included.
• You can get injured on awning parts or tools left lying around.
• Carefully unpack the awning from the package and remove all plastic guards
and plastic bags.
Be aware that the awning can suddenly extend while it is being unpacked.
• Remove the protective film before you install the awning. The film is intended
to protect the paint before the awning is installed.
• Place the awning in a location where it cannot be damaged or become dirty.
• Factor in the tilt angle of the awning when you determine the awning's height.
We recommend a tilt angle of 14 °.
• The awning can be mounted on the roof, but this requires installation by
a professional installer.
• Once the height has been determined, use a spirit levet to mark the height
with a line. It is essential that line is straight.
• The holes for the wall mounts must align both vertically and horizontally.
• All wall brackets must be used. The wall brackets should be placed near the arm
brackets, as well as one bracket in the middle.
• Mark the locations for the drilled holes in the wall.
• Use a drill and bit suitable for your wall when drilling the holes. lf you are
uncertain which bit is suitable for your wall, consult with a professional.
• Fasten the wall brackets with bolts that are suitable for your wall. lf you are
uncertain which bolts are suitable for your wall, consult with a professional.

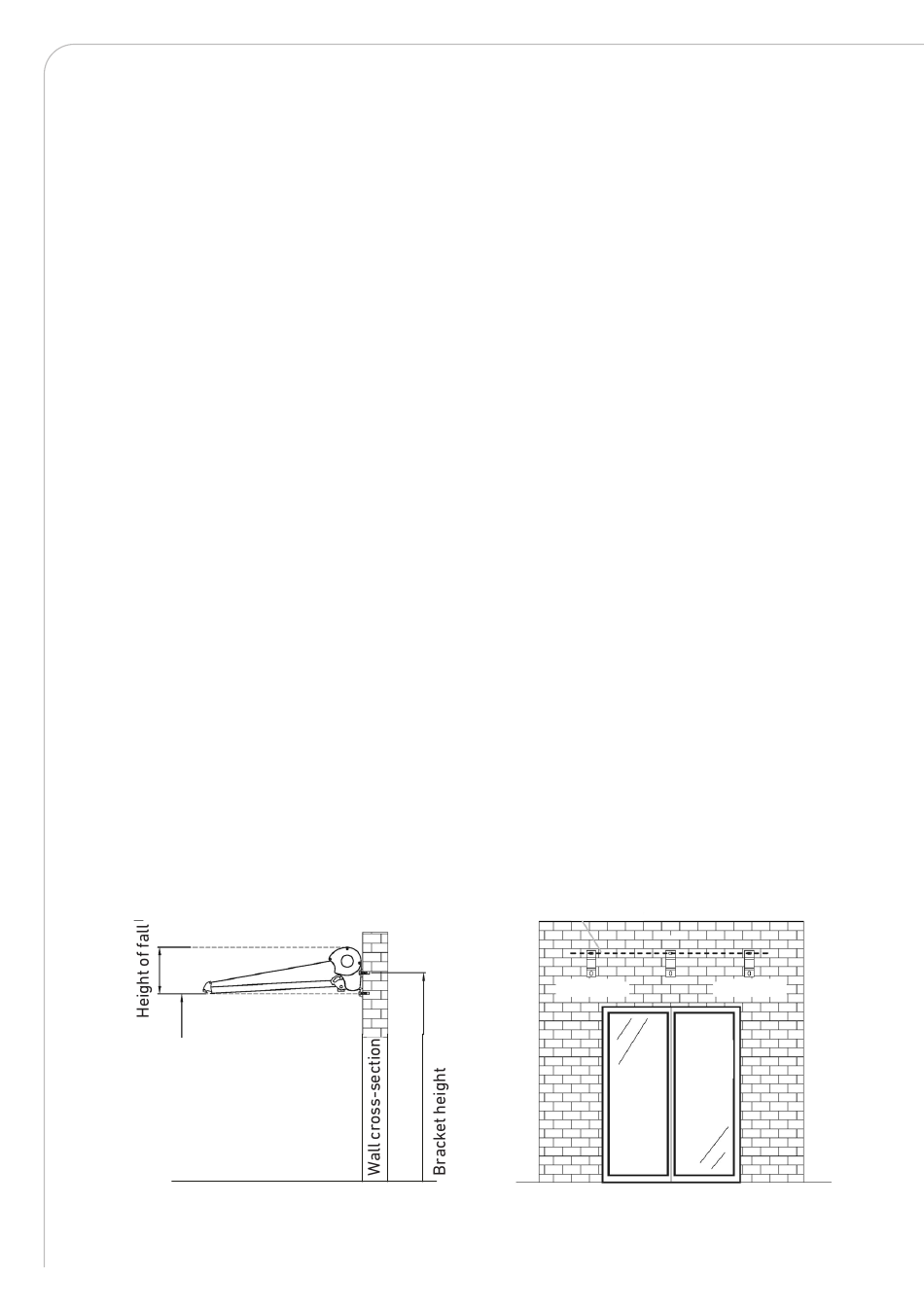

Height of awning front
Ground
6
Tilt angle
Chalk line
Bracket
Door/
window
Ground
Bracket
