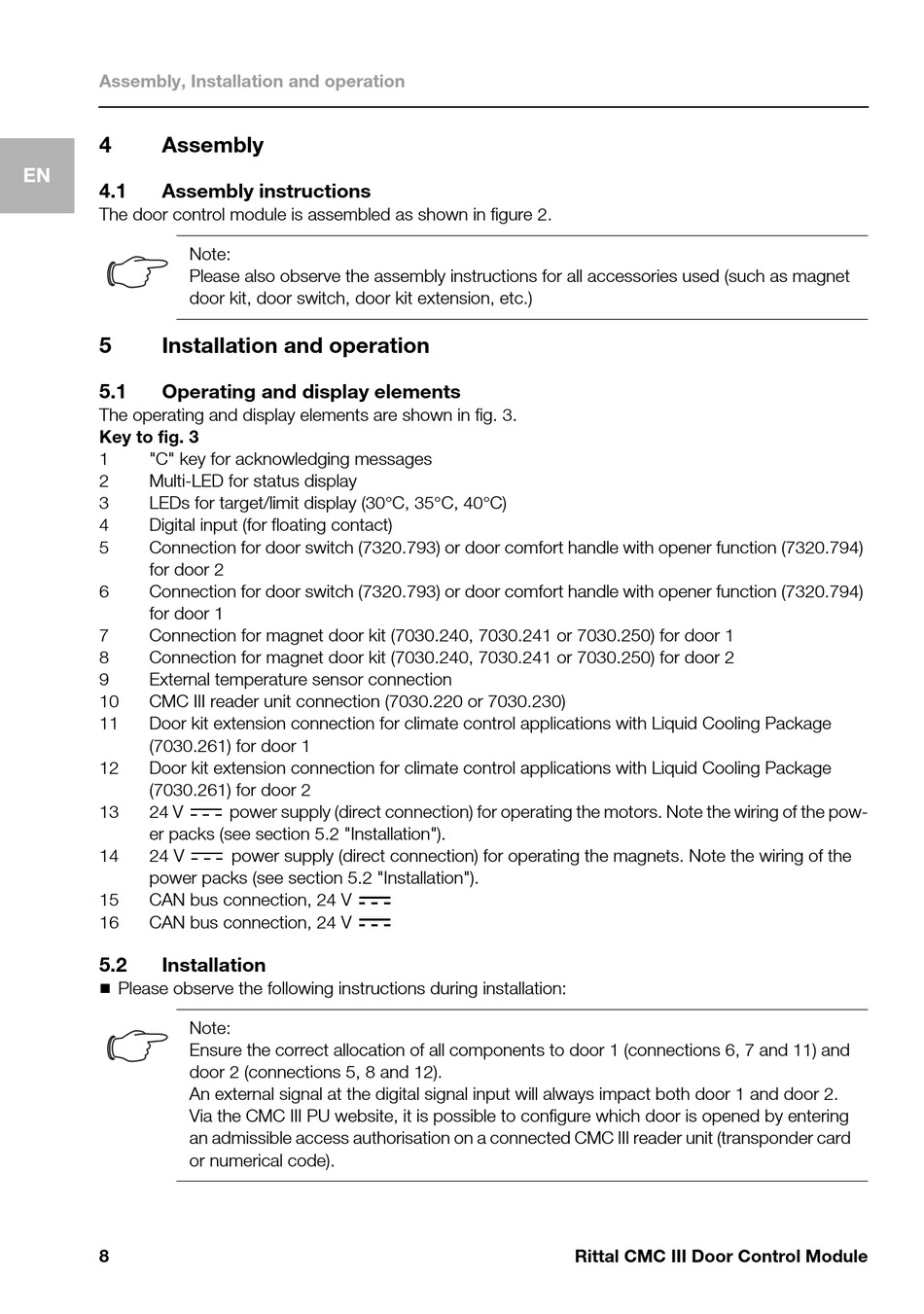

Operating And Display Elements - Rittal CMC III Installationsaleitung

Assembly, Installation and operation
4 Assembly
EN
4.1 Assembly instructions
The door control module is assembled as shown in figure 2.
Note:
Please also observe the assembly instructions for all accessories used (such as magnet
door kit, door switch, door kit extension, etc.)
5 Installation and operation
5.1

Operating and display elements

The operating and display elements are shown in fig. 3.
Key to fig. 3
1 "C" key for acknowledging messages
2 Multi-LED for status display
3 LEDs for target/limit display (30°C, 35°C, 40°C)
4 Digital input (for floating contact)
5 Connection for door switch (7320.793) or door comfort handle with opener function (7320.794)
for door 2
6 Connection for door switch (7320.793) or door comfort handle with opener function (7320.794)
for door 1
7 Connection for magnet door kit (7030.240, 7030.241 or 7030.250) for door 1
8 Connection for magnet door kit (7030.240, 7030.241 or 7030.250) for door 2
9 External temperature sensor connection
10 CMC III reader unit connection (7030.220 or 7030.230)
11 Door kit extension connection for climate control applications with Liquid Cooling Package
(7030.261) for door 1
12 Door kit extension connection for climate control applications with Liquid Cooling Package
(7030.261) for door 2
13 24 V
er packs (see section 5.2 "Installation").
14 24 V
power packs (see section 5.2 "Installation").
15 CAN bus connection, 24 V
16 CAN bus connection, 24 V
5.2 Installation

Please observe the following instructions during installation:
Note:
Ensure the correct allocation of all components to door 1 (connections 6, 7 and 11) and
door 2 (connections 5, 8 and 12).
An external signal at the digital signal input will always impact both door 1 and door 2.
Via the CMC III PU website, it is possible to configure which door is opened by entering
an admissible access authorisation on a connected CMC III reader unit (transponder card
or numerical code).
8
power supply (direct connection) for operating the motors. Note the wiring of the pow-
power supply (direct connection) for operating the magnets. Note the wiring of the
Rittal CMC III Door Control Module
