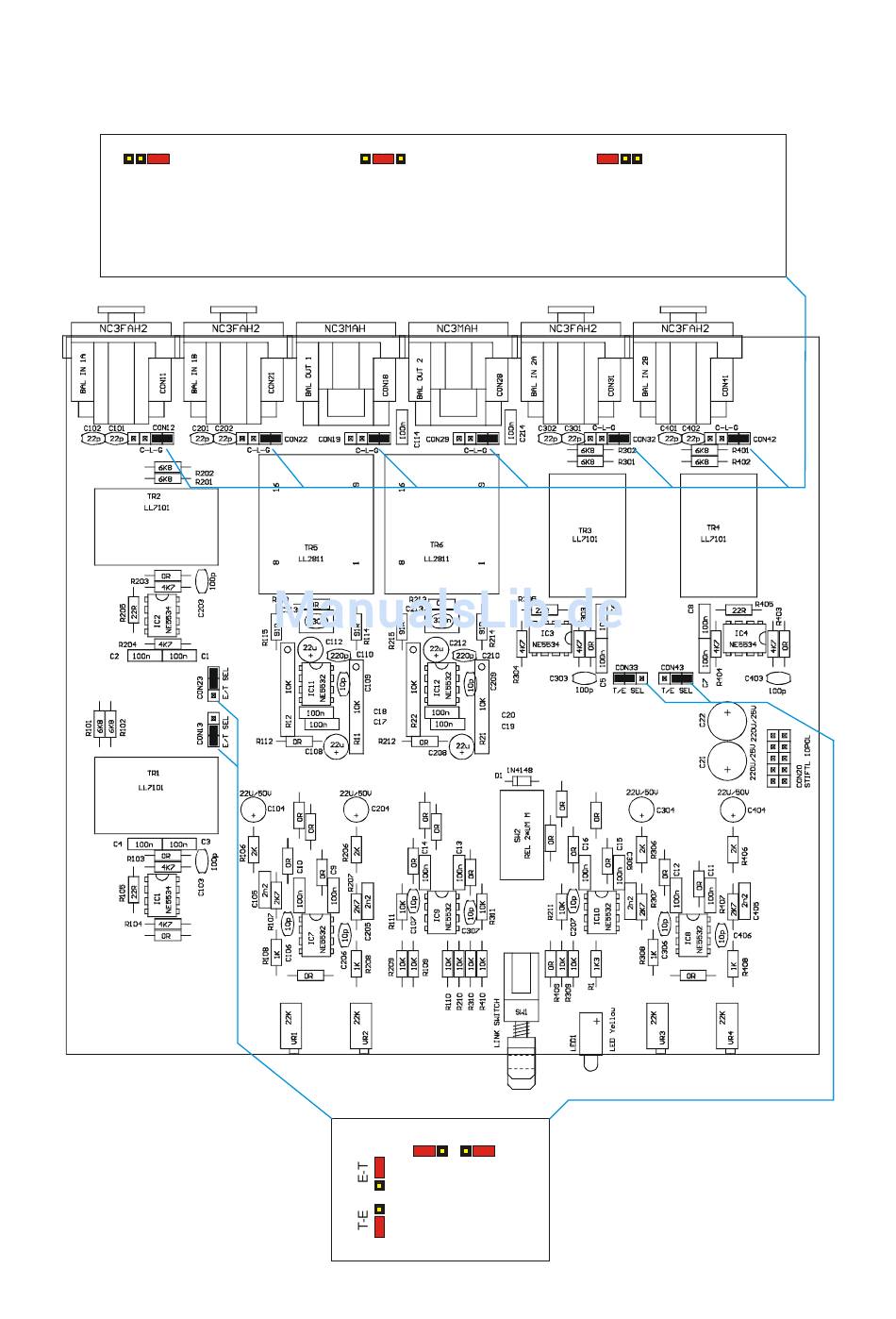

PCB LAYOUT AND JUMPER SETTING
ANALOG MODULE 3 2 x 2 in 1 / 4 in 1 + 1 Analog Splitter
Transformer balanced version
C-L-G
Pin 1 from XLR socket
connected to internal
.
Ground-Plane.
(ex Works setting)
C-L-G
Pin 1 from XLR socket
lifted.
T-E E-T
Transformer
balanced
Inputs
14
C-L-G
Pin 1 from XLR socket
connected to case.
