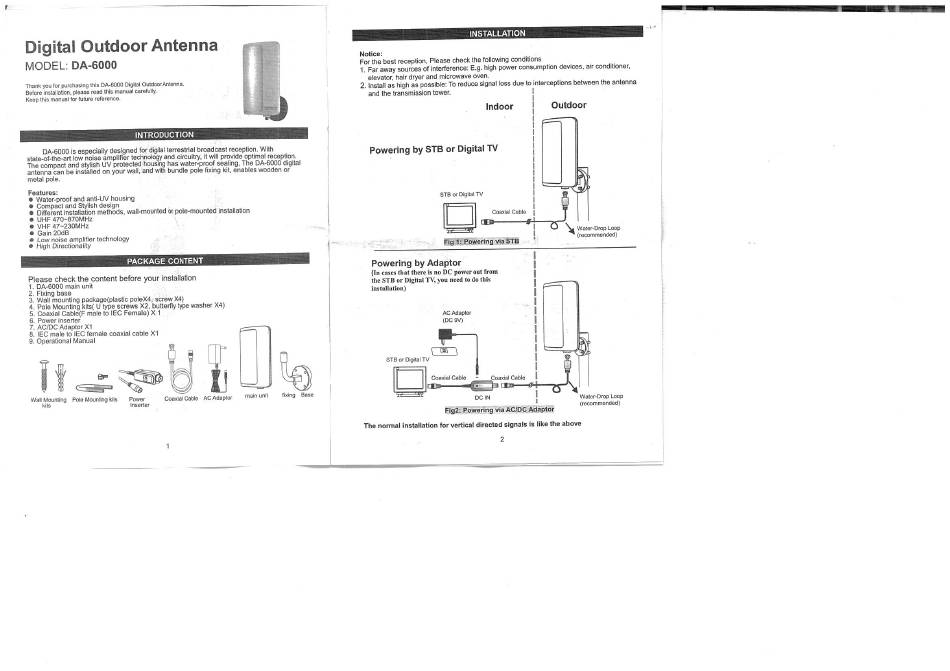

Digital Outdoor Antenna
MODEL: DA-6000
Thank pu forpurchasing thisDA-6000 Antenna.
Before pleaseread this manualcarefuuy.
Keepthis manualforfuturereference.
INTRODUCTION
6000 DA- isespecially designed f ordigital terrestrial broadcast reception. With
state-of-the-art lownoiseamplifiertechnology a ndcircuitry,it will provideoptimalreception.
Thecompac t andstylish I-JV protected h ousing haswater-proof sealing. TheDA-6000 d igital
antennacanbe installed on yourwall,and withbundlepolefixingkit. enableswooden or
metal pole.
Features:
• Water-proof and anti-UV housing
• Compact and Stylish design
e Different i nstallation methods, w all-mounted o rpole-mounted installation
• UHF 470-870MHz
• VHF 47-230MHz
. Gain 20dB
Low noise amplifier technology
• High Directionality
PACKAGE CONTENT
Please check the content before your installation
. DA-6000 main unit
2. Fixing base
3. Wall mounting package(plasticpoleX4, screw X4)
4. PoleMounting kits(U typescrews butterfly type washerX4)
5. Coaxial Cable(F male to IEC Female) X 1
6. Power inserter
7. AC/DC Adaptor Xl
8. IEC male to IEC female coaxial cable Xl
9. Operational Manual
Coaxial AC Adaptcy
Power
Wan Mwnting Pole Mounthg kits
kits
Notice:
Forthe bestreception.Pleasecheckthefollowing conditions
1.Far away sources Of i nterference:
elevator, hair dryer and microwave oven.
2.Install ashigh aspossible: TO reduce s ignal loss duetointerceptions
and the transmission tower.
Powering by STB or Digital TV
Powering by Adaptor
(In cases that thereis no DC power outfrom
theSTB or Digital TV,you needto do this
installation)
STB or Digital TV
fixing Base
main unit
The normal installation for vertical directed signals is like the above
INSTALLATION
E.g. h igh power consumption devices, airconditioner,
between theantenna
Outdoor
Indoor
STB or Digital TV
Coaxial C able I
Water-Drop Loop
(recommended)
FjgfPQ.Werirse viaSte
AC Adaptor
coaxial Cable Coaxial Cable
Water-Drop Loop
(recommended)
•ViaACibeÅdapiOi
