Application:

Loop Link 5909 is a USB communications interface for configuration and moni-
toring of PR electronics' PC-programmable modules. The USB communication
®
is supported by the Windows versions 98SE, ME, 2000 and XP. PR modules
available in the configuration program PReset ver. 5.0 or higher, can be pro-
grammed by way of Loop Link 5909.

Technical characteristics:

The PC program CD PReset ver. 5.0 or higher contains the necessary (un-
signed) USB drivers. Loop Link 5909 is supplied from the USB port of the PC.
If you want to conserve power on a laptop, the USB connector of the 5909 can
be connected to an externally supplied hub. The communications connector on
the PR modules is galvanically isolated from the USB connection on the PC.

Installation:

System requirements:

®
Windows 98SE, ME, 2000 and XP with the following recommendations:
Memory: 16 MB
Display resolution: 800 x 600
Hard disk space: 12 MB

Installation of PReset:

The USB communications interface Loop Link 5909 must not be connected to
the USB port of the PC until after installation of the PReset program.
PReset will be installed on your hard disk and the registry will be updated with
all necessary information on the program. A PReset icon will automatically be
placed on the desk top.
1. Insert the CD-ROM in the CD-ROM drive and the dialogue "In-
stallShield Wizard PReset - INSTALL" will start automatically.
2. When the installation program has been started, on-screen guide-
lines will guide you through the rest of the installation.
3. If AutoRun is disabled in Windows
"Start" button, select [Run] and start the installation program "CD
drive:\PResetWin\setup.exe".

Installation of USB drivers for Loop Link 5909:

Install the USB drivers while the PReset CD is still in the drive, i.e. immediately
after the PReset installation. Please note that you need to install two USB dri-
vers.
16 16
®
98SE, ME, 2000 and XP, click the
1. Connect Loop Link 5909 to the USB port of the PC.
2. After a short while, the guide "New hardware found" will be shown.
This guide will help you through the installation of the first USB dri-
ver.
3. When pressing [Execute] the first USB driver will be installed.
4. The guide starts again and helps you through the installation of the
second USB driver.
5. When pressing [Execute] the USB driver installation will be com-
plete.

Special instructions for Windows

®

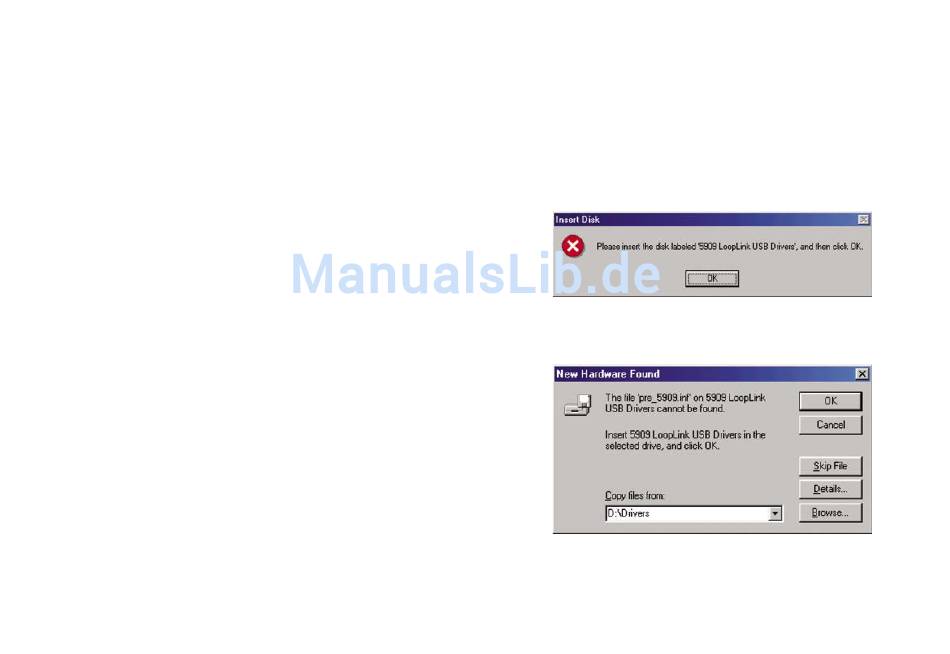

1. When Windows 98SE and ME are searching for the drivers, the fol-
lowing message will probably appear:
2. After clicking OK, you will see the following dialogue where the path
"CD-ROM drive:\drivers" must be specified. Either use [Browse] or
type the path.
3. The installation will then continue according to the guidelines speci-
fied in "Installation of USB drivers for Loop Link 5909".
® 98SE and ME:
