PREFACE
Thank you for purchasing the Nanobar FC. Each spotlight has been checked before packing
and has undergone a functional test. Upon receipt, please check the shipping carton and the
Nanobar for any damage that may have occurred during transportation. If anything is damaged,
the spotlight does not work properly or accessories are missing, please contact us immediately.
The Nanobar FC is a mini LED bar with outstanding performance, which is particularly suitable
for building and architectural lighting. Despite its short length of just 395 mm, an area 5 m wide
can be illuminated. The light source consists of 54x 3in1 RGB LEDs with an output of 3 W.
Thanks to the high-quality silica gel lens, the light transmission is significantly higher and the
color mixing is also more effective. The housing is made of die-cast aluminum, has IP65
certification and is therefore also suitable for outdoor use.
Use the supplied power cable for the power supply or connect several Nanobars together in
series. Additional cables are required for this, which are also available in our store.
If you want to make your own DMX cables for controlling the Nanobars, please pay attention to
the pin assignment (see page 24). Furthermore, make sure that the shielding of the cable does
not come into contact with the earthing lug or the housing of the XLR connector.

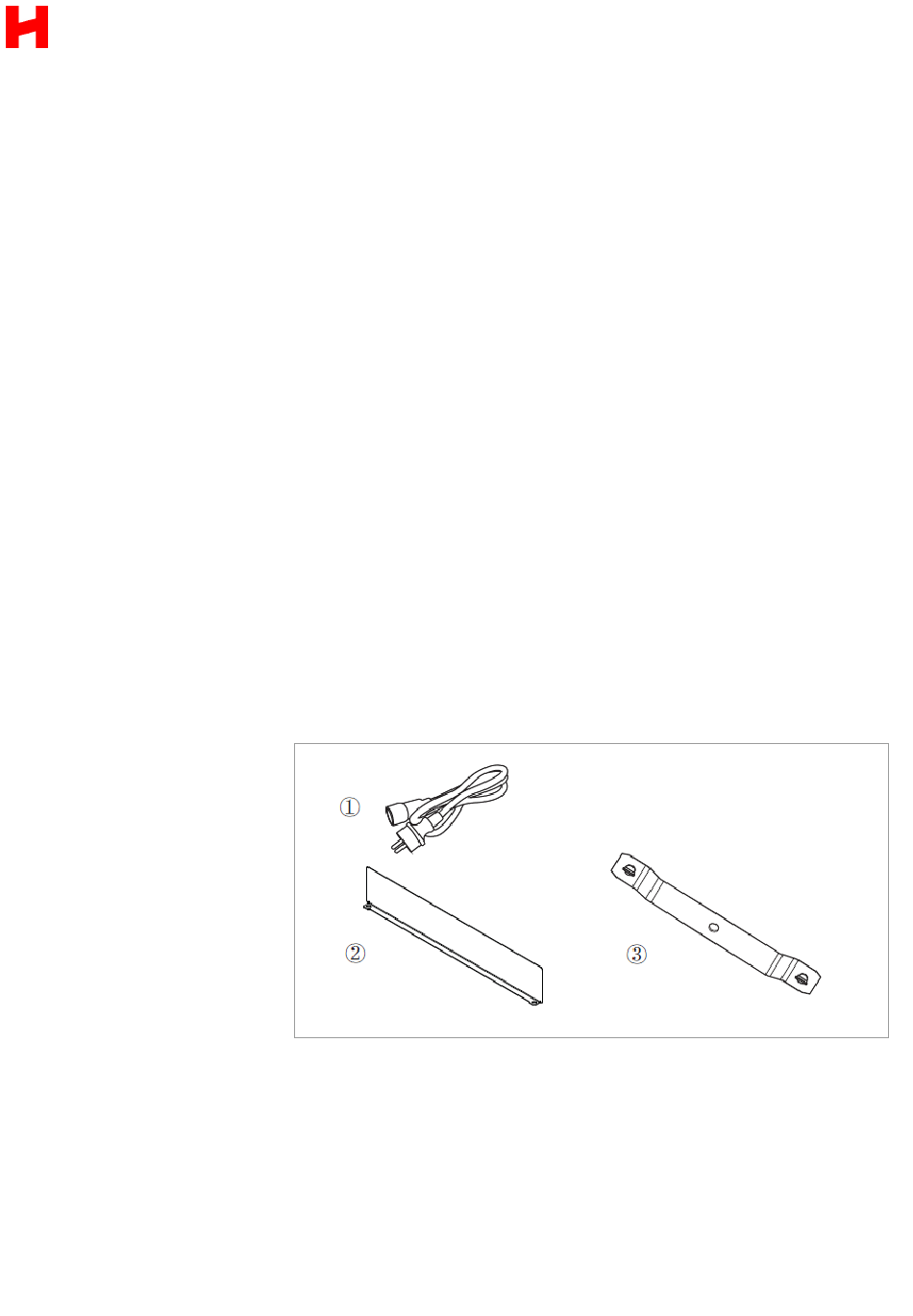

SCOPE OF DELIVERY
4. Power cable
5. Barndoor
6. Omega bracket
