Shock resistance:
EN60068-2-27
EN60068-2-29

11.11 Connections

Supply voltage and outputs:
Plug-in screw terminal, 8-pin, RM5.00
Core cross-section, max. 2.5 mm²
Signal and control inputs:
Plug-in screw terminal, 9-pin, RM 3.50
Core cross section, max. 1.5 mm²

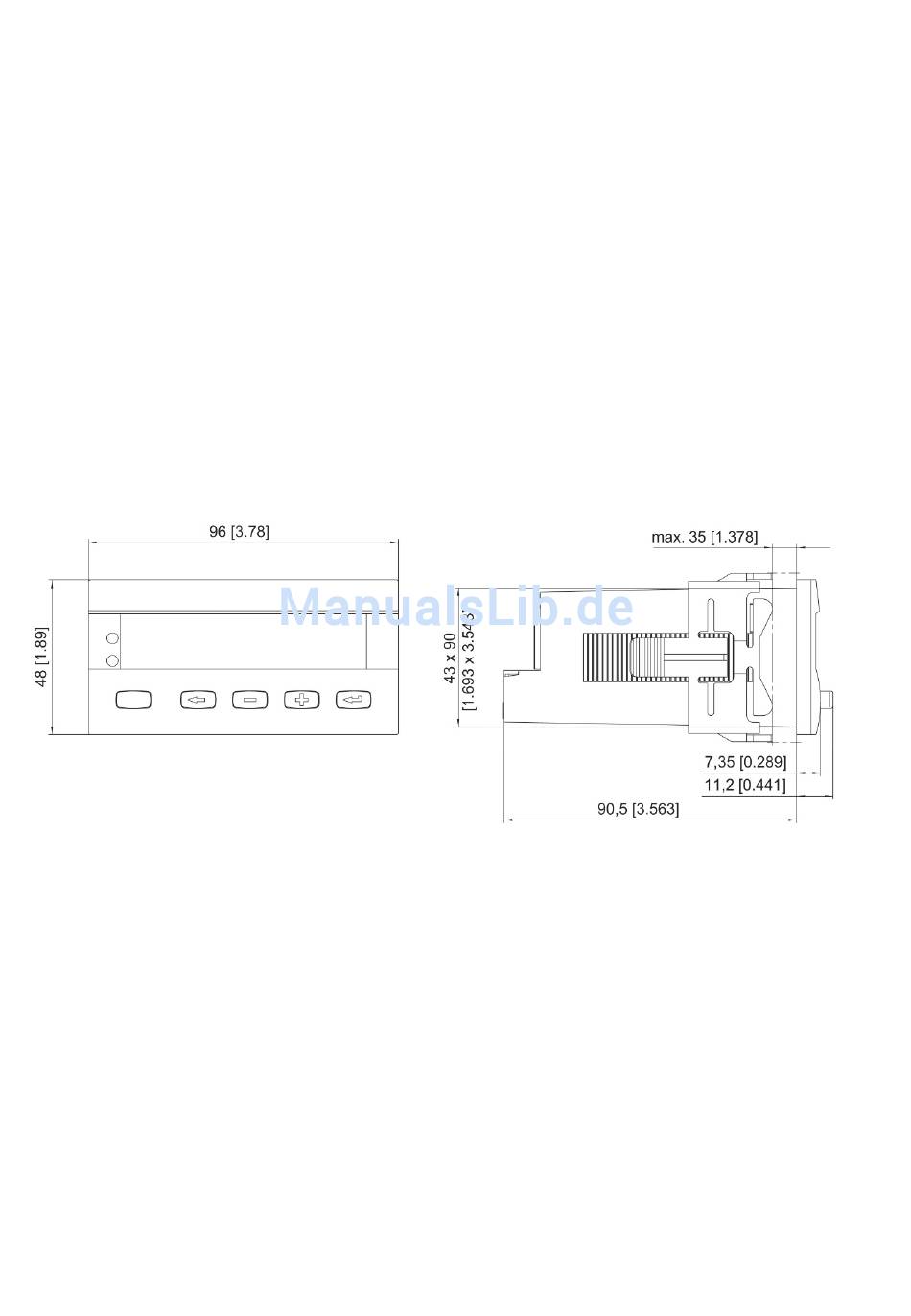

12 Dimensional Drawings

Dimensions in mm [inch]
+0.8
Panel cut-out: 92
Page 20
100G / XYZ
3 times in each direction
10G / 6 ms / XYZ
2000 times in each direction
+0.6
x 45
