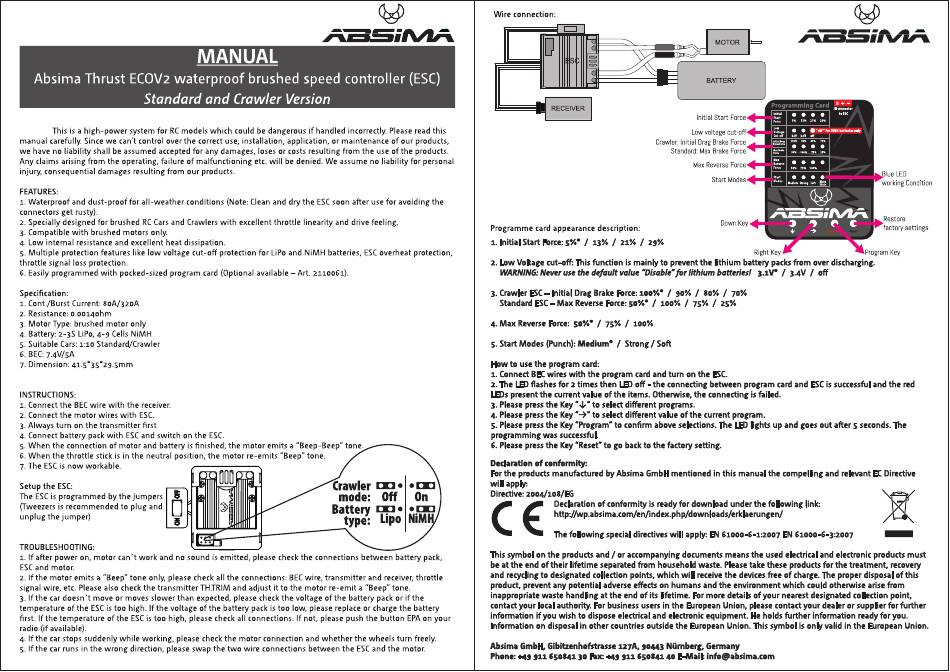

Absima Thrust ECOV2 Bedienungsanleitung

MANUAL
Absima Thrust ECOV2waterproof brushed speed controller (ESC)
Standard
This is a high-power system for RC models which could be dangerous if handled incorrectly. Please read this
manual carefully. Since we can't control over the correct use, installation, application, or maintenance of our products,
we have no liability shall be assumed accepted for any damages, loses or costs resulting from the use of the products.
Any claims arising from the operating, failure of malfunctioning
injury, consequential damages resulting from our products.
FEATURES:
1. Waterproof and dust-proof for all-weather conditions (Note: Clean and dry the ESC soon after use for avoiding the
connectors get rusty).
2. Specially designed for brushed RCCars and Crawlers with excellent throttle linearity and drive feeling.
3. Compatible with brushed motors only.
4. Low internal resistance and excellent heat dissipation.
5. Multiple protection features like low voltage CUt-Off protection for LiPo and NiMH batteries, ESCoverheat protection,
throttle signal loss protection.
6. Easilyprogrammed with pocked-sizedprogram card (Optional available—Art. 2110061).
Specification:
1. Cont./Burst Current: 80A/320A
2. Resistance: 0.00140hm
3. Motor Type: brushed motor only
4. Battery: 2-3S Lipo, 4-9 Cells NiMH
5. Suitable Cars: 1:10 Standard/CrawIer
6. BEC: 7.4V/5A
7. Dimension: 29.5mm
INSTRUCTIONS:
1. Connect the BEC wire with the receiver.
2. Connect the motor wires with ESC.
3. Always turn on the transmitter first
4. Connect battery pack with ESCand switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits a "Beep-Beep" tone.
6. When the throttle stick is in the neutral position, the motor re-emits "Beep" tone.
7. The ESC is now workable.
Setup the ESC:
The ESCis programmed by the jumpers
(Tweezersis recommendedto plug and
unplug the jumper)
TROUBLESHOOTING:
1. If after power on, motor can't work and no sound is emitted, please check the connections between battery pack,
ESC and motor.
2. If the motor emits a "Beep" tone only, please check all the connections: BECwire, transmitter and receiver, throttle
signal wire, etc. Please also check the transmitter TH.TRIM and adjust it to the motor re-emit a "Beep" tone.
3. If the car doesn •t move or moves slower than expected, please check the voltage of the battery pack or if the
temperature of the ESCis too high. If the voltage of the battery pack is too low, please replace or charge the battery
first. If the temperature of the ESCis too high, please check all connections. If not, please push the button EPAon your
radio (if available).
4. If the car stops suddenly while working, please check the motor connection and whether the wheels turn freely.
5. If the car runs in the wrong direction, please swap the two wire connections between the ESCand the motor.
and Crawler Version
etc. will be denied. We assume no liability for personal
Crawler
mode: Off
Battery
Lipo
type:
Wire connection:
RECEIVER
Programme card appearance description:
1. Initial Start Force: / 13% / 21% / 29%
2. Low Voltage cut-off. This function is mainly to prevent the lithium battery packsfrom over discharging.
WARNING: N ever use the default value "Disable"for lithium batteries! 3.1V' / 3.4V / off
3. CrawlerESC —Initial Drag Brake Force:100%' / 90% / 80% / 70%
Standard ESC—Max Reverse Force: 50%• / 100% / 75% / 25%
4. Max Reverse Force: 50%' / 75% / 100%
5. Start Modes (Punch):Medium• / Strong/ Soft
How to use the program card:
1. ConnectBECwires with the program card and tum on the ESC.
2. The LEDflashesfor 2 times then LEDoff - the connecting between program cardand ESCis successfuland the red
LEDspresent the current value of the items. Otherwise, the connecting isfailed.
3. Pleasepressthe Key"U" to select different programs.
4. Pleasepressthe Key"4" to select different value of the current program.
5. Pleasepressthe Key"Program" to confirm above selections.The LEDlights up and goes out after 5 seconds.The
programming was successful.
6. Pleasepressthe Key"Reset" to go back to the factory setting.
Declaration of conformity:
For the products manufactured by Absima GmbH mentioned in this manual the compelling and relevant ECDirective
will apply:
Directive: 2004/108/EG
On
Declarationof conformity is readyfor download under the following link:
http://wp.absima.com/en/index.php/downloads/erklaerungen/
NiM
The following special directives will apply: EN61000-6-1:2007 EN 61000-6-3:2007
This symbol on the products and / or accompanying documents means the used electrical and electronic products must
be at the end of their lifetime separated from household waste. Pleasetake these products for the treatment, recovery
and recyclingto designated collection points, which will receivethe devicesfree of charge.The proper disposal of this
product, prevent any potential adverseeffects on humans and the environment which could otherwise arisefrom
inappropriate waste handling at the end of its lifetime. For more details of your nearest designated collection point,
contact your local authority. For businessusersin the European Union, pleasecontact your dealer or supplier for further
information if you wish to disposeelectrical and electronic equipment. He holds further information ready for you.
Information on disposal in other countries outside the EuropeanUnion. This symbol is only valid in the EuropeanUnion.
Absima GmbH,Gibitzenhofstrasse 127A, 90443 Nürnberg, Germany
Phone: +49 911 65084130 Fa)C+49 91165084140
MOTOR
BATTERY
Programming Card S
nitial Start Force
55
Low vo tage cut off
Crawler: Inltlal Drag Brake Force
Standard: Max Brake Force
Max Reverse Force
Start Modes
soft
DownKey
Righ Key
E-Mail: info@absima.com
ED
working Condition
Restore
factory settings
Program Key
