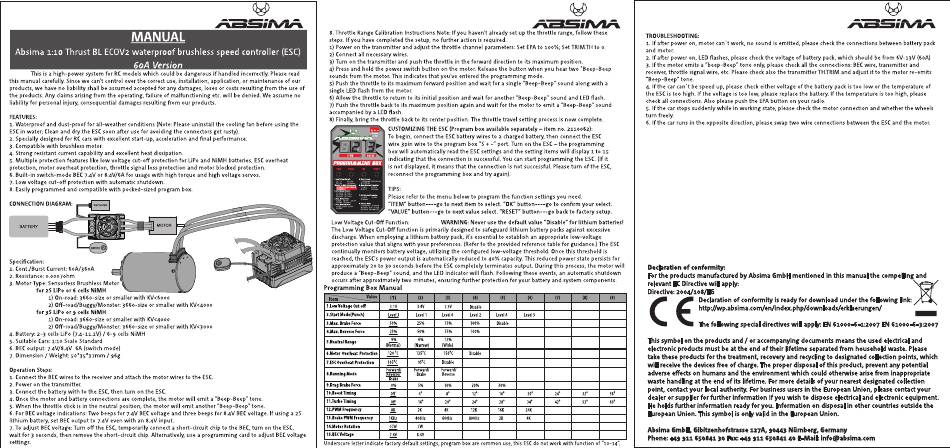

MANUAL
Absima 1:10 Thrust BL ECOV2 waterproof brushless speed controller (ESC)
60A Version
This is a high-power system for RCmodels which could be dangerous if handled incorrectly. Please read
this manual carefully. Since we can't control over the correct use, installation, application, or maintenance of our
products, we have no liability shall be assumed accepted for any damages, loses or costs resulting from the use of
the products. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no
liability for personal injury, consequential damages resulting from our products.
FEATURES:
1. Waterproof and dust proof for all-weather conditions (Note: Please uninstall the cooling fan before using the
ES C in water; Clean and dry the ESCsoon after use for avoiding the connectors get rusty).
2. Specially designed for RCcars with excellent start-up, acceleration and final performance.
3. Compatible with brushless motor.
4. Strong resistant current capability and excellent heat dissipation.
5. Multiple protection features like low voltage cut-off protection for LiPo and NiMH batteries, ESCoverheat
protection, motor overheat protection, throttle signal loss protection and motor blocked protection.
6. Built-in switch-mode BEC7.4V or 8.4V/6A for usage with high torque and high voltage servos.
7. Low voltage cut-off protection with automatic shutdown.
8. Easily programmed and compatible with pocked-sized program box.
CONNECTION DIAGRAM:
RECEIV
MOTOR
BATTERY
SWITCH
Specification:
1. Cont./Burst Current: 60A/360A
2. Resistance: 0.00070hm
3. Motor Type: Sensorless Brushless Motor
for 2S LiPo or 6 cells NiMH
1) On-road: 3660-size or smaller with KV<6000
2) Off-road/Buggy/Monster: 3660-size or smaller with KV<4000
for 3S LiPo or 9 cells NiMH
1) On-road: 3660 size or smaller with KV<4000
2) Off-road/Buggy/Monster: 3660-size or smaller with KV<3000
4. Battery: 2-3 cells LiPo (7.4-11.1V) / 6-9 cells NiMH
5. Suitable Cars: 1:10 Scale Standard
6. BECoutput: 7.4V/8.4V 6A (switch mode)
7. Dimension / Weight: / 96g
Operation Steps:
1. Connect the BEC wires to the receiver and attach the motor wires to the ESC.
2. Power on the transmitter.
3. Connect the battery with to the ESC,then turn on the ESC.
4. Once the motor and battery connections are complete, the motor will emit a "Beep-Beep" tone.
5. When the throttle stick is in the neutral position, the motor will emit another "Beep-Beep" tone.
6. For BECvoltage indications: Two beeps for 7-4V BECvoltage and three beeps for 8.4V BECvoltage. If using a 2S
lithium battery, set BEC output to 7.4V even with an 8.4V input.
7. To adjust BECvoltage: Turn off the ESC,temporarily connect a short circuit chip to the BEC,turn on the ESC,
wait for 3 seconds, then remove the short-circuit chip. Alternatively, use a programming card to adjust BECvoltage
settings.
8. Throttle Range Calibration Instructions Note: If you haven't already set up the throttle range, follow these
steps. If you have completed the setup, no further action is required.
1) Power on the transmitter and adjust the throttle channel parameters: Set EPAto 100%; Set TRIM.THto o.
2) Connect all necessary wires.
3) Turn on the transmitter and push the throttle in the forward direction to its maximum position.
4) Pressand hold the power switch button on the motor. Releasethe button when you hear two "Beep-Beep
sounds from the motor. This indicates that you've entered the programming mode.
5) Push the throttle to its maximum forward position and wait for a single "Beep Beep" sound along with a
single LEDflash from the motor.
6) Allow the throttle to return to its initial position and wait for another "Beep-Beep" sound and LEDflash.
7) Push the throttle back to its maximum position again and wait for the motor to emit a "Beep-Beep" sound
accompanied by a LEDflash.
8) Finally, bring the throttle back to its center position. The throttle travel setting process is now complete.
CUSTOMIZINGTHE ESC(Program box available separately —item no. 2110062):
To begin, connect the ESCbattery wires to a charged battery, then connect the ESC
wire 3Pin wire to the program box "S + -" port. Turn on the ESC —the programming
box will automatically read the ESCsettings and the setting items will display 1 to 15
VALUE
indicating that the connection is successful. You can start programming the ESC.(If it
Bax
is not displayed, it means that the connection is not successful. Pleaseturn of the ESC,
VALUE
reconnectthe programming box and try again).
TIPS:
Pleaserefer to the menu below to program the function settings you need.
'ITEM" button- --go to next item to select. "0K" button----go
"VALUE" button---go to next value select. "RESET" button---go
Low Voltage Cut-Off Function: WARNING: Never use the default
The Low Voltage Cut-Off function is primarily designed to safeguard lithium battery packs against excessive
discharge. When employing a lithium battery pack, it's essential to establish an appropriate low voltage
protection value that aligns with your preferences. (Refer to the provided reference table for guidance.) The ESC
continually monitors battery voltage, utilizing the configured low-voltage threshold. Once this threshold is
reached, the ESC'spower output is automatically reduced to 40% capacity. This reduced power state persists for
approximately 20 to 30 seconds before the ESCcompletely terminates output. During this process, the motor will
produce a "Beep-Beep" sound, and the LEDindicator will flash. Following these events, an automatic shutdown
occurs after approximately two minutes, ensuring further protection for your battery and system components.
Programming Box Manual
Value
(1) (3)
Item
1.LowVoltageCut-off
3.4V 2.9V
Disable
2.Start Mode(Punch) Level 3 Level 1 Level 6 Level 2 Level4
3.Max. Brake Force 100% Disable
4.Max. Reverse Force 25% 100%
6% 12%
5.NeutralRange
(Normal) (Narrow) (Wide)
6.Motor Overheat Protection 120oc 1350C 1500C Disable
1050C 950C Disable
7.ESCOverheat Protection
Forward Forward/ Forward/
8.Running Mode Brake Reve e
9.DragBrakeForce
0% 5% 20%
10.BoostTiming 40 80 120 160
Off
11.Turbo Timing
Off 160 200 240 280
12.PWM Frequency 8K 2K 4K 12K 16K
13.BrakePWM Frequency 400Hz 600Hz 800Hz 2K
I KHz
14.Motor Rotation ccw cw
15.BEC voltage 7.4V 8.4V
Underscoreletter indicatefactory default settings,programbox arecommon use,this ESC do not work with function of "10 14
TROUBLESHOOTING:
1. If after power on, motor can't work, no sound is emitted, please check the connections between battery pack
and motor.
2. If after power on, LEDflashes, please check the voltage of battery pack, which should be from 6V-13V (60A)
3. If the motor emits a "beep-Beep" tone only, please check all the connections: BECwire, transmitter and
receiver, throttle signal wire, etc. Pleasecheck also the transmitter TH.TRIM and adjust it to the motor re-emits
"Beep-Beep" tone.
4. If the car can't be speed up, please check either voltage of the battery pack is too low or the temperature of
the ESCis too high. If the voltage is too low, please replace the battery. If the temperature is too high, please
check all connections. Also please push the EPAbutton on your radio.
5. If the car stops suddenly while in working state, please check the motor connection and whether the wheels
turn freely.
6. If the car runs in the opposite direction, please swap two wire connections between the ESCand the motor.
to confirm your select.
back to factory setup.
value "Disable" for lithium batteries!
Declaration of conformity:
For the products manufactured by Absima GmbH mentioned in this manual the compelling and
relevant ECDirective will apply:
Directive: 2004/108/EG
(7)
Declaration of conformity is ready for download under the following link:
http://wp.absima.com/en/index.php/downloads/erklaerungen/
Level 5
The following special directives will apply: EN61000-6-1:2007 EN 61000-6-3•.2007
This symbol on the products and / or accompanying documents means the used electrical and
electronic products must be at the end of their lifetime separatedfrom household waste. Please
take these products for the treatment, recoveryand recycling to designated collection points, which
will receive the devices free of charge.The proper disposal of this product, prevent any potential
adverse effects on humans and the environment which could otherwise arise from inappropriate
waste handling at the end of its lifetime. For more details of your nearest designated collection
point, contact your local authority. For business users in the European Union, please contact your
200 240 320 360
dealer or supplier for further information if you wish to dispose electrical and electronic equipment.
340 420 520 600
He holds further information readyfor you. Information on disposal in other countries outside the
24K
European Union. This symbol is only valid in the European Union.
4K
Absima GmbH, Gibitzenhofstrasse 127A, 90443 Nürnberg, Germany
Phone: +49 911 650841 30 Fax: +49 911 650841 40 E-Mail: info@absima.com
