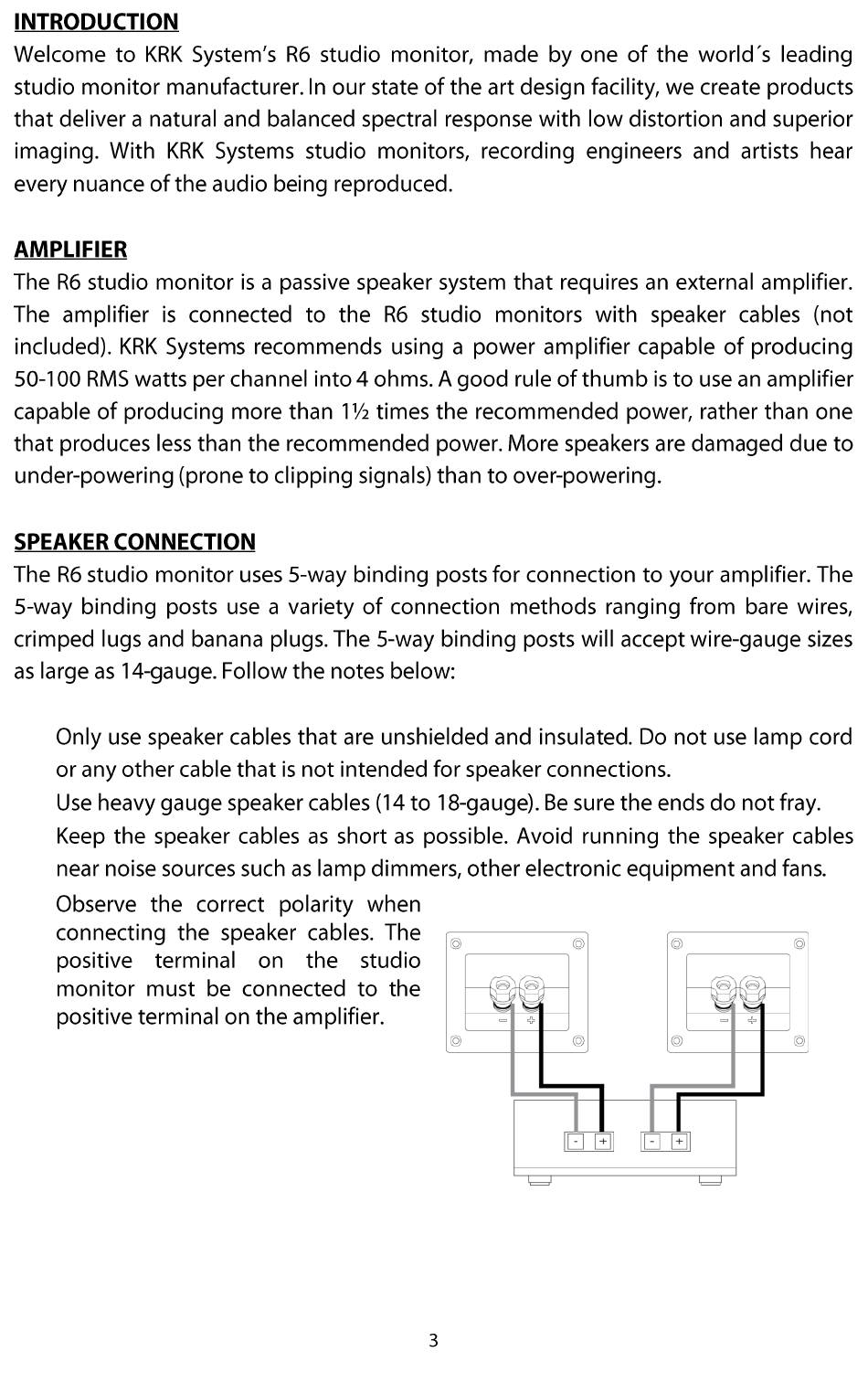

INTRODUCTION
Welcome to KRK System's R6 studio monitor, made by one of the world's leading
studio monitor manufacturer. In our state of the art design facility, we create products
that deliver a natural and balanced spectral response with low distortion and superior
imaging. With KRK Systems studio monitors, recording engineers and artists hear
every nuance of the audio being reproduced.
AMPLIFIER
The R6 studio monitor is a passive speaker system that requires an external amplifier.
The amplifier is connected
included). KRK Systems recommends using a power amplifier capable of producing
50-100 RMSwatts per channel into 4 ohms. A good rule of thumb is to use an amplifier
capable of producing more than Ih times the recommended power, rather than one
that produces less than the recommended power. More speakers are damaged due to
under-powering
SPEAKER CONNECTION
The R6 studio monitor uses 5-way binding posts for connection to your amplifier. The
5-way binding posts use a variety of connection methods ranging from bare wires,
crimped lugs and banana plugs. The 5-way binding posts will accept wire-gauge sizes
as large as 14-gauge. Follow the notes below:

Only use speaker cables that are unshielded and insulated. Do not use lamp cord
or any other cable that is not intended for speaker connections.

Use heavy gauge speaker cables (14 to 18-gauge). Be sure the ends do not fray.

Keep the speaker cables as short as possible. Avoid running the speaker cables
near noise sources such as lamp dimmers, other electronic equipment and fans.

Observe the correct polarity when
connecting
positive terminal
monitor must
positive terminal on the amplifier.
to the R6 studio monitors with speaker cables (not
(prone to clipping signals) than to over-powering.
the speaker cables. The
on the
be connected
LEFT
LEFT
c
studio
to the
3
RIGHT
RIGHT
c
o
AMPLIFIER
AMPLIFIER
o
