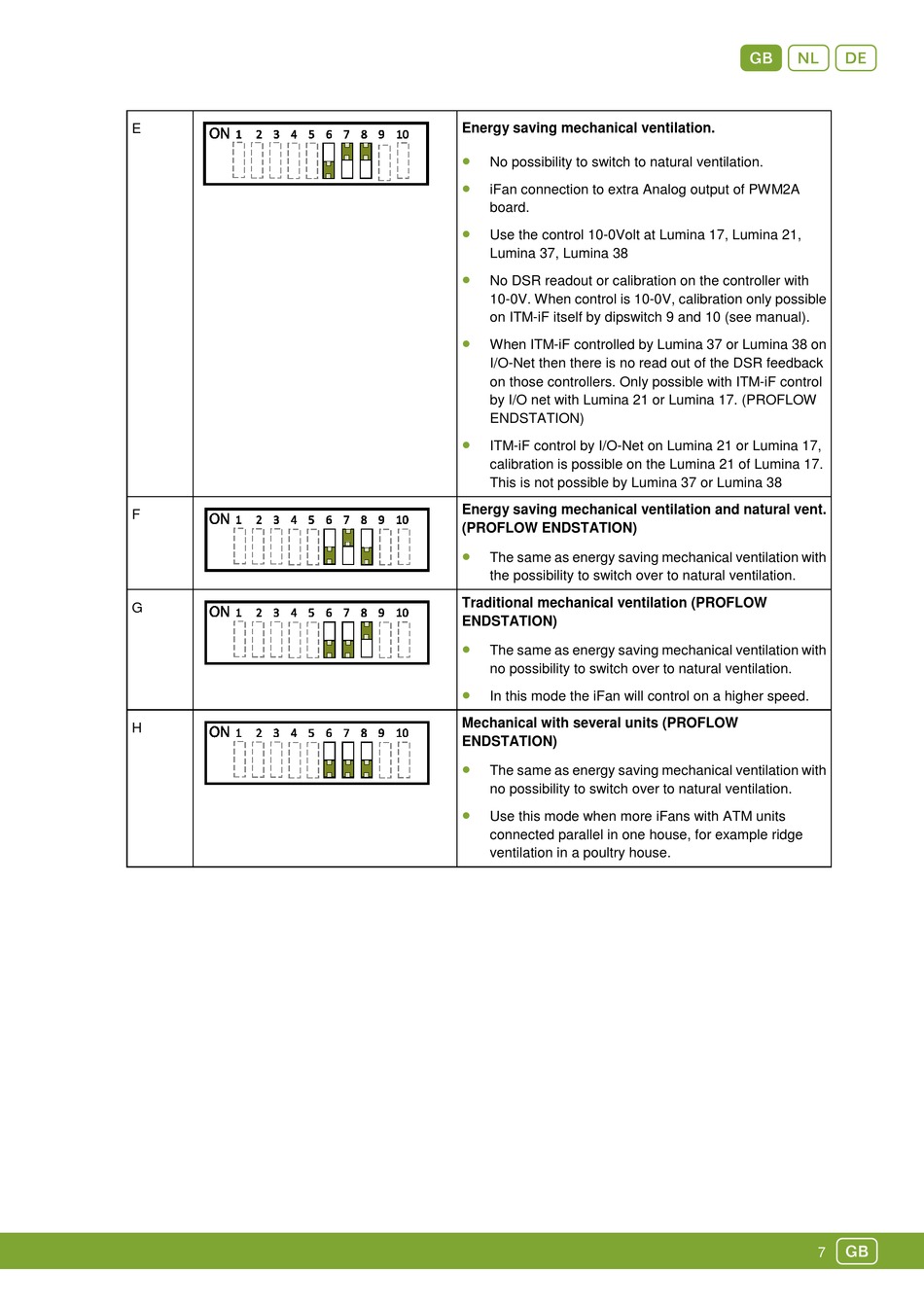

Energy saving mechanical ventilation.
•
No possibility to switch to natural ventilation.
•
iFan connection to extra Analog output of PWM2A
board.
•
Use the control 10-0Volt at Lumina 17, Lumina 21,
Lumina 37, Lumina 38
•
No DSR readout or calibration on the controller with
10-0V. When control is 10-0V, calibration only possible
on ITM-iF itself by dipswitch 9 and 10 (see manual).
•
When ITM-iF controlled by Lumina 37 or Lumina 38 on
I/O-Net then there is no read out of the DSR feedback
on those controllers. Only possible with ITM-iF control
by I/O net with Lumina 21 or Lumina 17. (PROFLOW
ENDSTATION)
•
ITM-iF control by I/O-Net on Lumina 21 or Lumina 17,
calibration is possible on the Lumina 21 of Lumina 17.
This is not possible by Lumina 37 or Lumina 38
Energy saving mechanical ventilation and natural vent.
(PROFLOW ENDSTATION)
•
The same as energy saving mechanical ventilation with
the possibility to switch over to natural ventilation.
Traditional mechanical ventilation (PROFLOW
ENDSTATION)
•
The same as energy saving mechanical ventilation with
no possibility to switch over to natural ventilation.
•
In this mode the iFan will control on a higher speed.
Mechanical with several units (PROFLOW
ENDSTATION)
•
The same as energy saving mechanical ventilation with
no possibility to switch over to natural ventilation.
•
Use this mode when more iFans with ATM units
connected parallel in one house, for example ridge
ventilation in a poultry house.
