Exploded View; Spare Parts Overview - Dantherm Rg0.R Anleitung

Oilburner
Type Gulliver RG0.R
Pos. Varenr.
1 80002699
2 80002495
3 80002497
4 80002451
5 80002496
6 80001168
7 80007396
8 80008095
9 80007492
10 80007458
11 80008946
12 80008940
13 80008948
14 80008942
15 80007465
16 80007617
17 80008947
Page 10 of 10

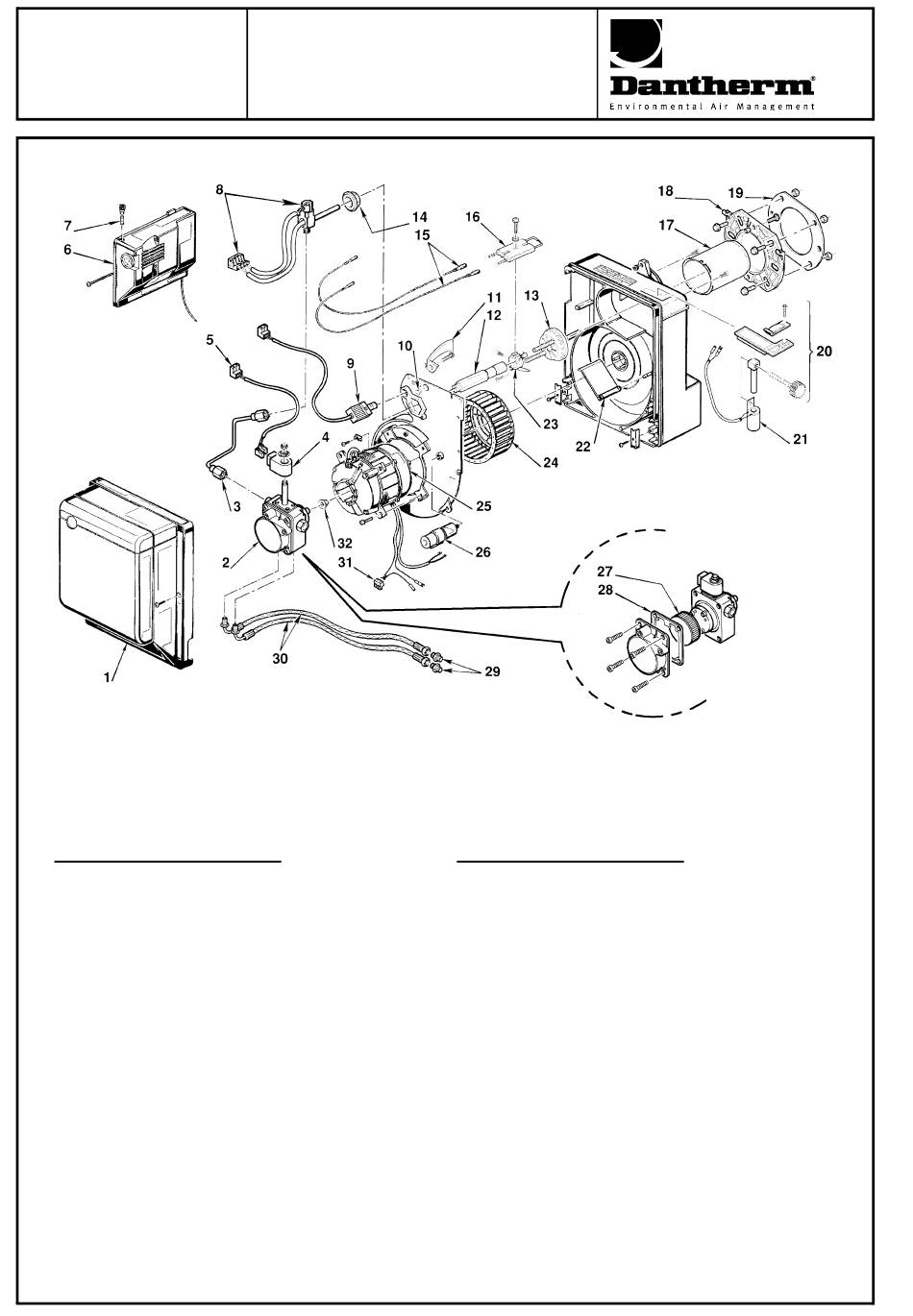

Exploded view

Spare parts overview

Betegnelse
Cover
Suntec pump
Tube
Coil
Lead coil
Control box 550 SMD
Fuse
Heather assembly
P.e. cell
Viewing port
Suction duct
Nozzle holder
Diffuser disc
Bush
High voltage lead
Electrode assembly
Blast tube
Pos. Varenr. Betegnelse
Flange
18 80007931
Gasket
19 80005787
Air damper regulator
20 80008953
Coil
21 80008951
Air damper
22 80008945
Support
23 80007466
Fan
24 80008952
25 80008938 Motor
26 80007479
Capacitor 4
Filter
27 80003082
Seal
28 80003081
Connector
29 80009046
Flexible oil line
30 80005720
Motor socket
31 80007454
Joint
32 80000443
