1 Product description
The device Passiver Verteiler 5P2 is designed for splitting 5 input lines (4x SAT and 1x terrestrial) into 4 paths and can
be used as a 2-way distributor as well as a symmetrical tap unit.
It is intended for indoor use only.
The housing of the Passiver Verteiler 5P2 meets the shielding requirements according to EN50083-2, class A.
2 Safety instructions
• Installation of the device must be done according IEC60728-11 and national safety standards.
• Any repairs must be done by a qualified personnel.
3 Technical data
Model Passiver Verteiler 5P2
item no. 0001/3242
EAN 4019588132429
Parameter Unit SAT
Frequency range MHz 950 ... 2400
Through loss dB 4
Decoupling dB ≥ 30
Retun loss dB > 10
DC pathing properties A V: ≤0,5
H: ≤2 (≤1 each H path)
General Value
Rated temperature range -20° ... 50° C
Dimension (B x H x T), Weight 126 x 135 x 30 mm, 0,44 kg
4 Installation
The device must be fixed with 4 flat-head screws with a diameter of 4 to 5 mm - use suitable dowels if necessary. The
screws are not included in the scope of delivery.
Establish equipotential bonding (Cu ≥ 4 mm²) at the earthing screw.
5 Operation
The splitter consists of 5 highly insulated splitters for each input line. The splitters divide the signals into 2 equal parts
while maintaining the line matching properties and the insulation between the different paths.
The connections on the splitter can accept cables with an inner conductor diameter of up to 1.2 mm.
The terrestrial paths have a maximum DC forward current of 100 mA.

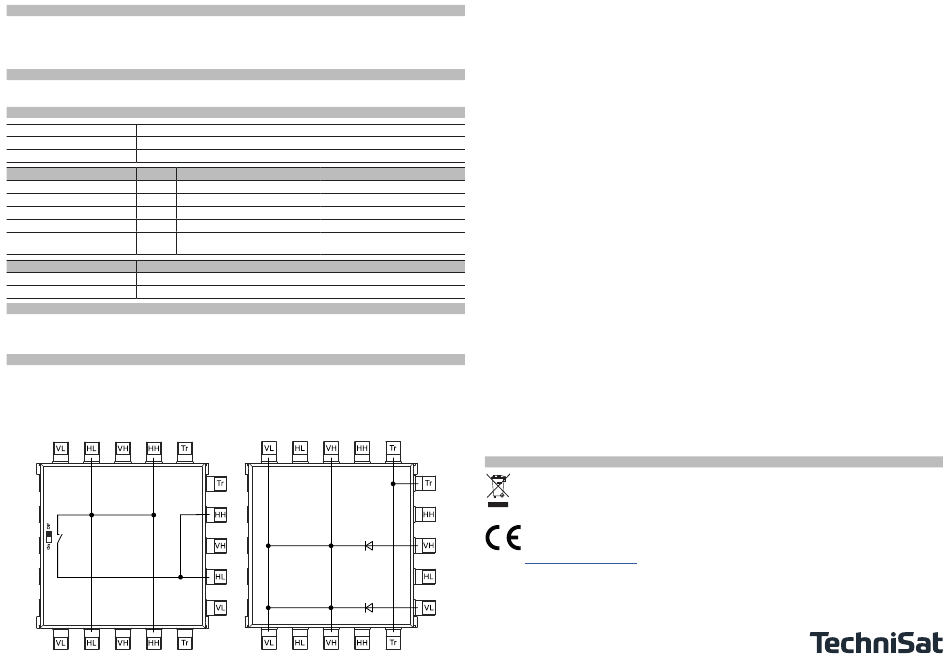

The following diagrams show the DC forwarding paths for horizontal and vertical polarisation lines.
Terrestrial
47 ... 862
4
≥ 30
> 10
0,1
6 Legal notice
Electronic equipment must not be disposed of in domestic waste. According to directive 2012/19/EC OF THE
EUROPEAN PARLIAMENT AND COUNCIL of 4 July 2012 on waste electrical and electronic equipment, it must
be disposed of professionally. At the end of its service life, take this device for disposal at a designated public
collection point.
Your device is CE approved and meets all necessary EU standards.
TechniSat hereby declares that the radio equipment type Passiver Verteiler 5P2 complies with Directive
2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:
http://konf.tsat.de/?ID=24487
