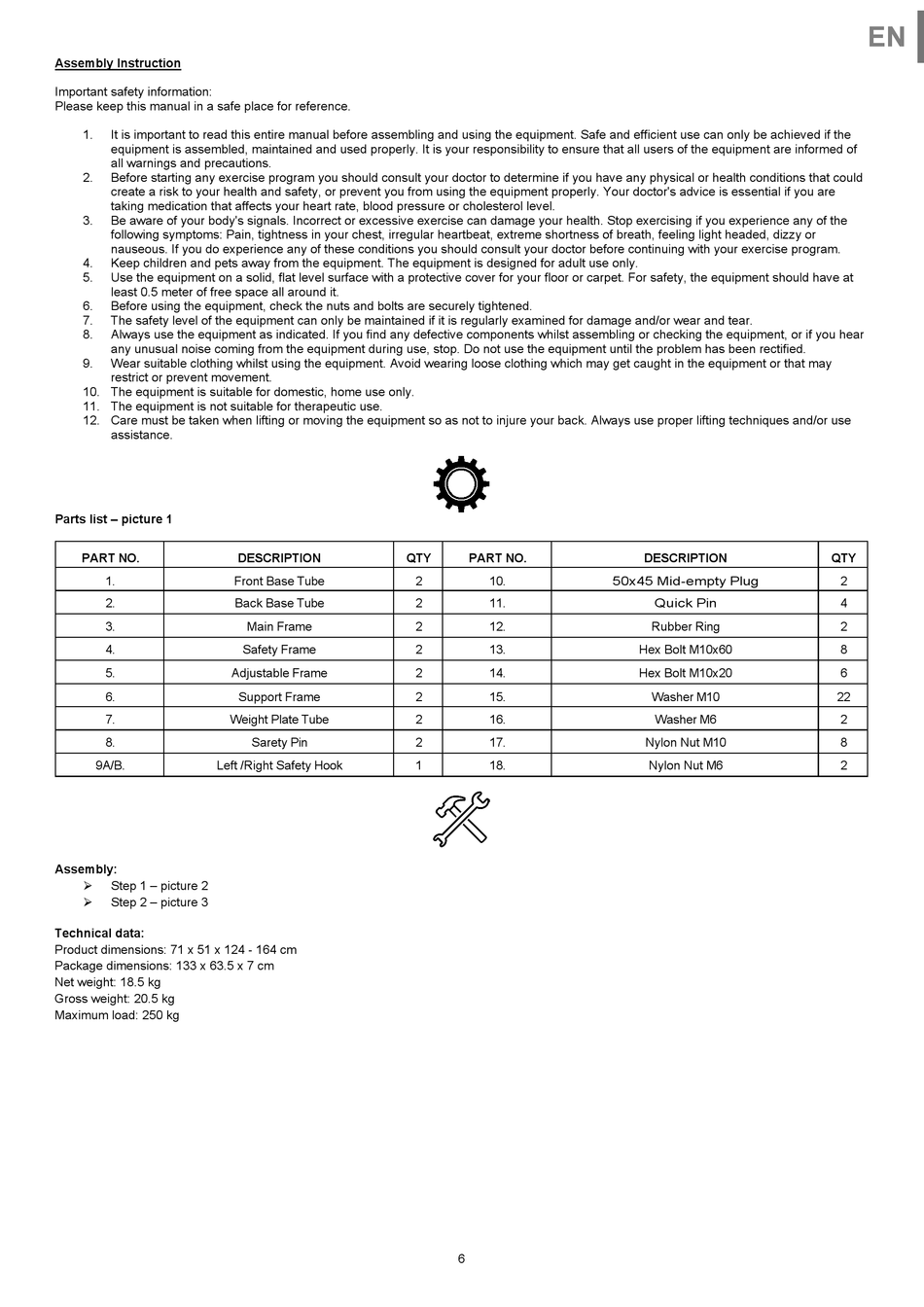

Assembly Instruction
Important safety information:
Please keep this manual in a safe place for reference.
1. It is important to read this entire manual before assembling and using the equipment. Safe and efficient use can only be achieved if the
equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
2. Before starting any exercise program you should consult your doctor to determine if you have any physical or health conditions that could
create a risk to your health and safety, or prevent you from using the equipment properly. Your doctor's advice is essential if you are
taking medication that affects your heart rate, blood pressure or cholesterol level.
3. Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the
following symptoms: Pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light headed, dizzy or
nauseous. If you do experience any of these conditions you should consult your doctor before continuing with your exercise program.
4. Keep children and pets away from the equipment. The equipment is designed for adult use only.
5. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. For safety, the equipment should have at
least 0.5 meter of free space all around it.
6. Before using the equipment, check the nuts and bolts are securely tightened.
7. The safety level of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
8. Always use the equipment as indicated. If you find any defective components whilst assembling or checking the equipment, or if you hear
any unusual noise coming from the equipment during use, stop. Do not use the equipment until the problem has been rectified.
9. Wear suitable clothing whilst using the equipment. Avoid wearing loose clothing which may get caught in the equipment or that may
restrict or prevent movement.
10. The equipment is suitable for domestic, home use only.
11. The equipment is not suitable for therapeutic use.
12. Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper lifting techniques and/or use
assistance.
Parts list – picture 1
PART NO.
1.
2.
3.
4.
5.
6.
7.
8.
9A/B. Left /Right Safety Hook
Assembly:
Step 1 – picture 2

Step 2 – picture 3

Technical data:
Product dimensions: 71 x 51 x 124 - 164 cm
Package dimensions: 133 x 63.5 x 7 cm
Net weight: 18.5 kg
Gross weight: 20.5 kg
Maximum load: 250 kg
DESCRIPTION
Front Base Tube
Back Base Tube
Main Frame
Safety Frame
Adjustable Frame
Support Frame
Weight Plate Tube
Sarety Pin
QTY PART NO.
2 10.
2 11.
2 12.
2 13.
2 14.
2 15.
2 16.
2 17.
1 18.
6
DESCRIPTION
50x45 Mid-empty Plug
Quick Pin
Rubber Ring
Hex Bolt M10x60
Hex Bolt M10x20
Washer M10
Washer M6
Nylon Nut M10
Nylon Nut M6
EN
QTY
2
4
2
8
6
22
2
8
2
