About This Guide

This document is part of the product.
► Do not install or use the device until
you have read and understood this
document.
► Keep this document for reference
throughout the service life of the device.
Pass this document on to any new
owner or user.
For the most up-to-date version of this
document, go to the Kathrein website
www.kathrein.com.
Characteristics
Streams DVB-S/S2 (HDTV) signals from

up to 24 channels simultaneously in an
IP data stream
Cutting-edge Full-Band Capture tech-

nology for efficient data processing
Can be fed into different network types:

LAN (also K-LAN, Powerline), WLAN
integration via router, e.g. FRITZ!Box
Can be configured for different clients

tablet PCs, smartphones, notebooks,
SAT>IP-capable receivers (e.g. UFS 906)
Conforms to the SAT>IP standard

according to EN 50585
Operation at wideband LNBs or

single-cable multi-switches/LNBs
Supports the single-cable standard

according to EN 50494 and EN 50607
Status display via LEDs

Provided the required software/apps are
1)
installed on the device
Provided a powerful enough network
2)
infrastructure is available

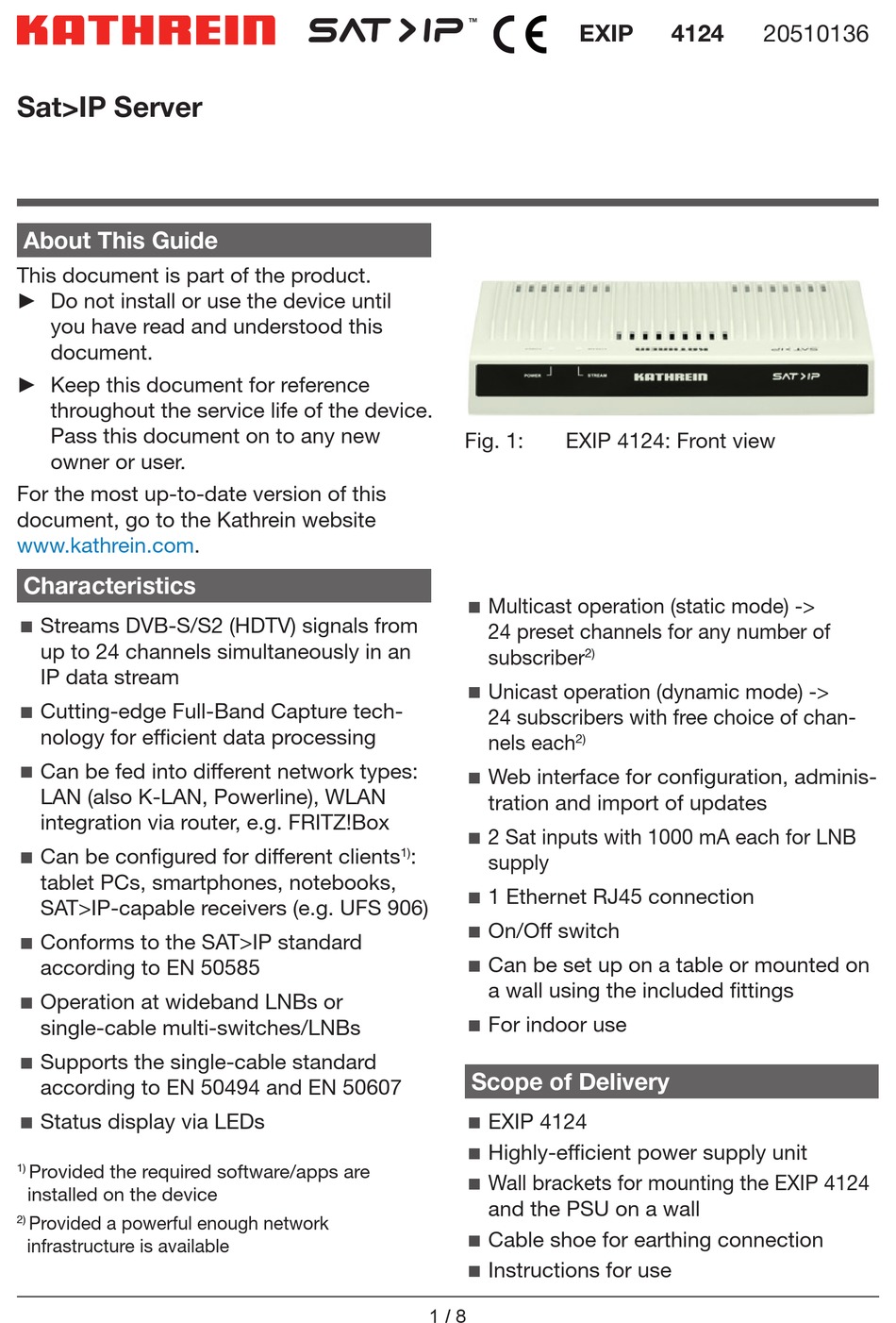

Fig. 1: EXIP 4124: Front view
Multicast operation (static mode) ->

24 preset channels for any number of
subscriber
Unicast operation (dynamic mode) ->

24 subscribers with free choice of chan-
nels each
Web interface for configuration, adminis-

tration and import of updates
2 Sat inputs with 1000 mA each for LNB

:
1)
supply
1 Ethernet RJ45 connection

On/Off switch

Can be set up on a table or mounted on

a wall using the included fittings
For indoor use


Scope of Delivery

EXIP 4124

Highly-efficient power supply unit

Wall brackets for mounting the EXIP 4124

and the PSU on a wall
Cable shoe for earthing connection

Instructions for use

