Intended Use

The device described is intended solely for the installation in satellite receiver systems.
Any other use, or failure to comply with these instructions will invalidate the warranty or
guarantee.
The data stream that is fed by the EXIP 4124 into your home network can be played by
virtually every IP-capable end device. Kathrein receivers such as the UFS 924, UFS 906,
UFS 916 are already SAT>IP-capable, many other devices only require the installation of a
SAT>IP software.
A choice of software for PCs, laptops, tablets and smartphones is available on our web-
site www.kathrein.de, on the EXIP 4124 product page.
The connection of the EXIP 4124 to a SAT>IP-capable end device is indicated in the cor-
responding software documentation. Due to the UPNP interface, the connection is usually
carried out mostly automatically.
EXD 1532
Single-cable multi-switch
t I P
4 x S a
UFSconnect 926
UHD hard drive receiver
8
user
bands
Laptop/PC
with SAT>IP software

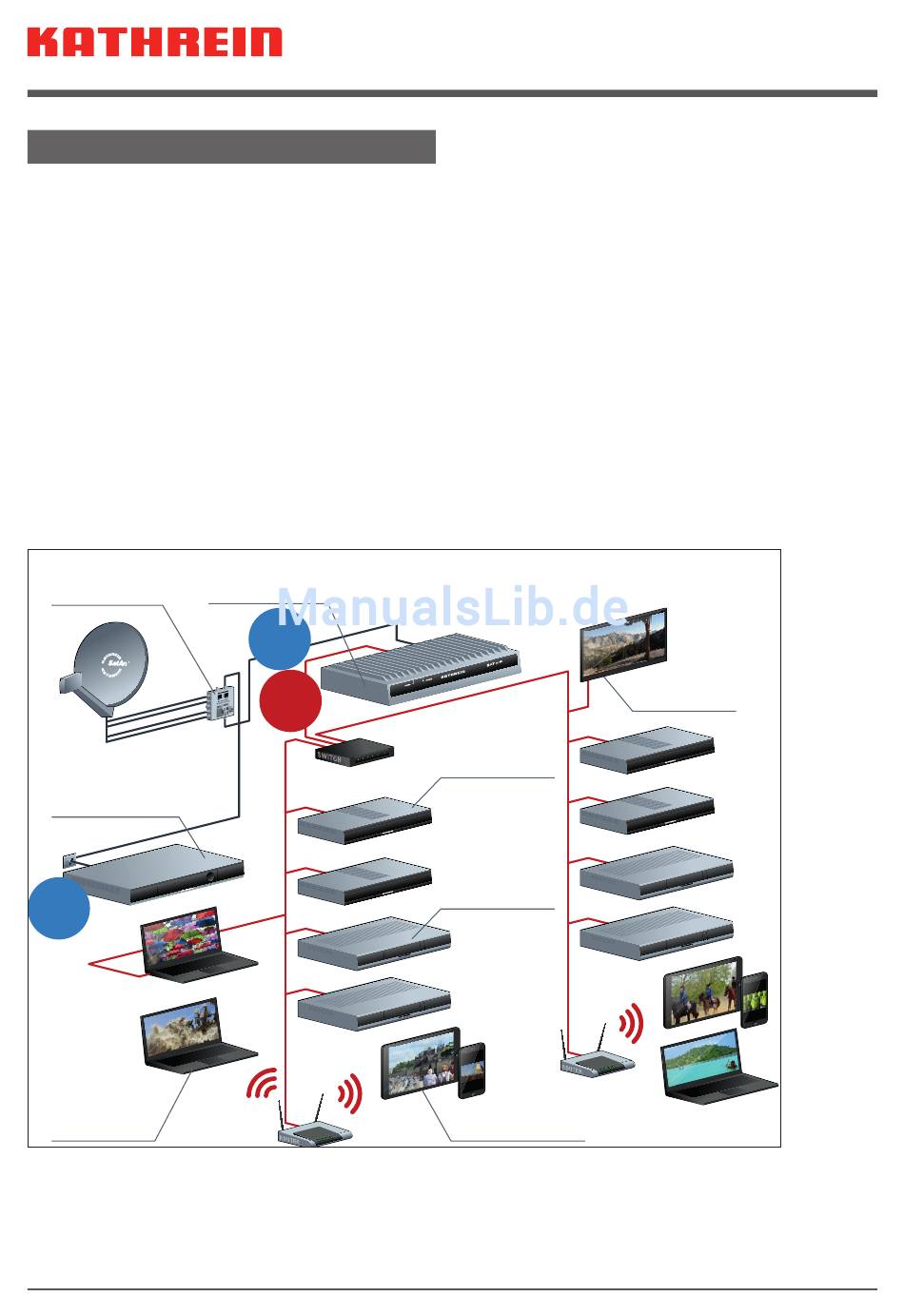

Fig. 2: System chart EXIP 4124
