Cooler Master Elite 311 Basic Bedienungsanleitung

---t-iTE

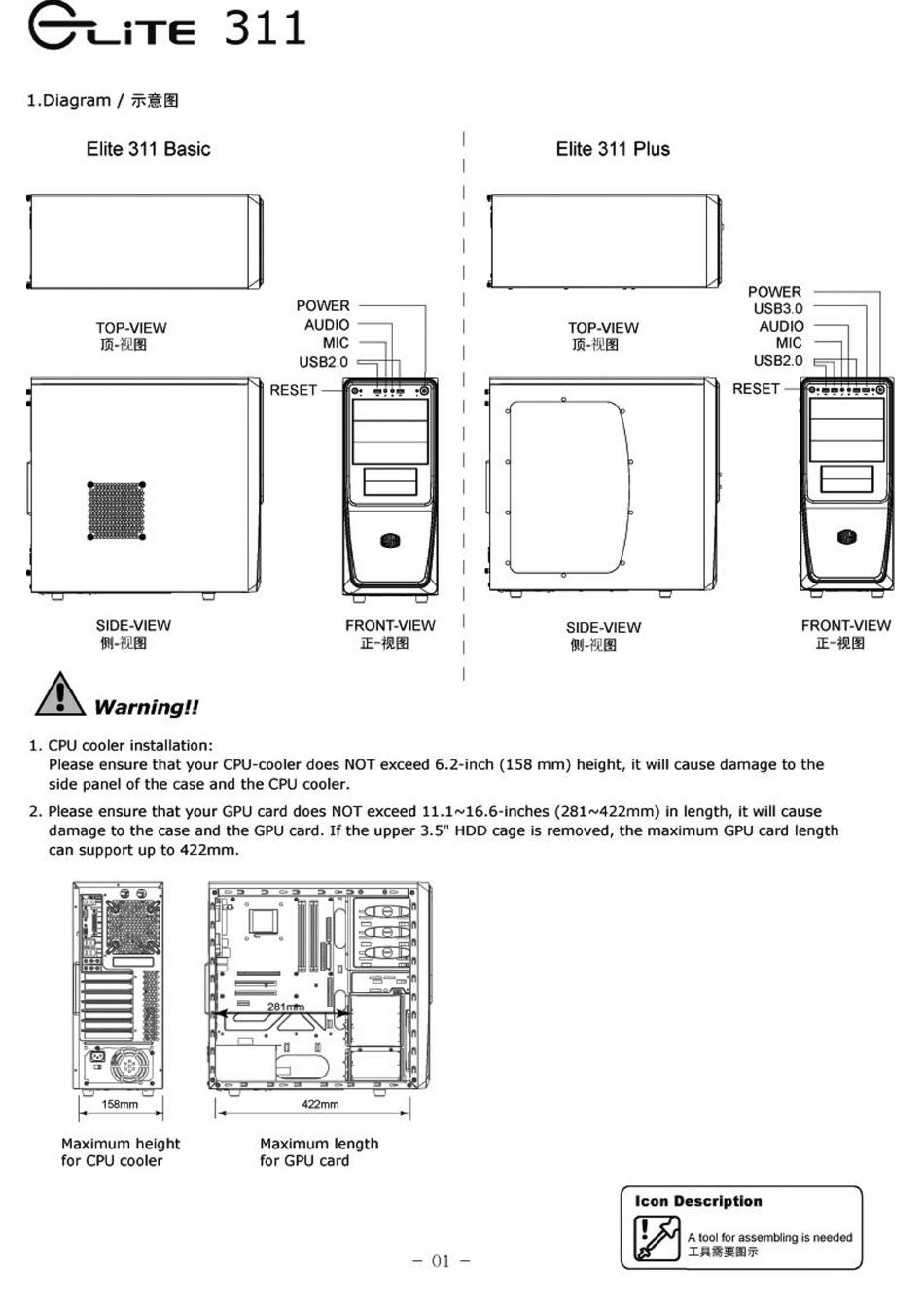

I.Diagram /
Elite 311 Basic
TOP-VIEW
SIDE-VIEW
• Warning!!
1. CPU cooler installation:
Please ensure that your CPU-cooler does NOT exceed 6.2-inch
side panel of the case and the CPU cooler.
2. Please ensure that your GPU card does NOT exceed 11.1N16.6-inches
damage to the case and the GPU card. If the upper 3.5" HDD cage is removed,
can support up to 422mm.
Maximum height
for CPU cooler
311
POWER
AUDIO
MIC
USB2,O
RESET
FRONT-VIEW
iE-4Ææ
81 nt••,
42mm
Maximum length
for GPU card
Elite 311 Plus
TOP-VIEW
SIDE-VIEW
(158 mm) height, it will cause damage to the
(281N422mm) in length, it will cause
the maximum
Icon Description
POWER
USB3.O
AUDIO
MIC
USB2.O
RESET —
FRONT-VIEW
GPU card length
A tool for assembling iS needed
