• 3 to 3.5 bar is the most suitable spray air pressure, but it can vary depending on the viscosity, type and processing condition of the paint.
• Rinse the spray gun with thinners before the first application to ensure optimal paint application.
During use
• For optimal spray results, the paint delivery quantity can be infinitely regulated. To do this, use the color adjustment screw at the rear
end of the spray gun.
• For optimal spraying results, the distance to the workpiece should be neither too far nor too close. For most applications, we recommend
a working distance of 15 to 20 cm.
• Circular movements during application are not recommended.
After use
1. Soak the entire gun body in a clean solvent and clean it well.
2. The air cap and liquid nozzle must be dismantled, first soaked in a solvent and then washed with a brush or similar.
3. It is essential to ensure that the air caps and the center hole of the liquid nozzle are not damaged.
4. The cleaning of the paint channel must be done in such a way that a small amount of solvent is sprayed, as if the gun were being used
for the actual spraying job.
5. Attach the needle seal screw by pulling the trigger and adjusting the screw so that it is not over-tightened.

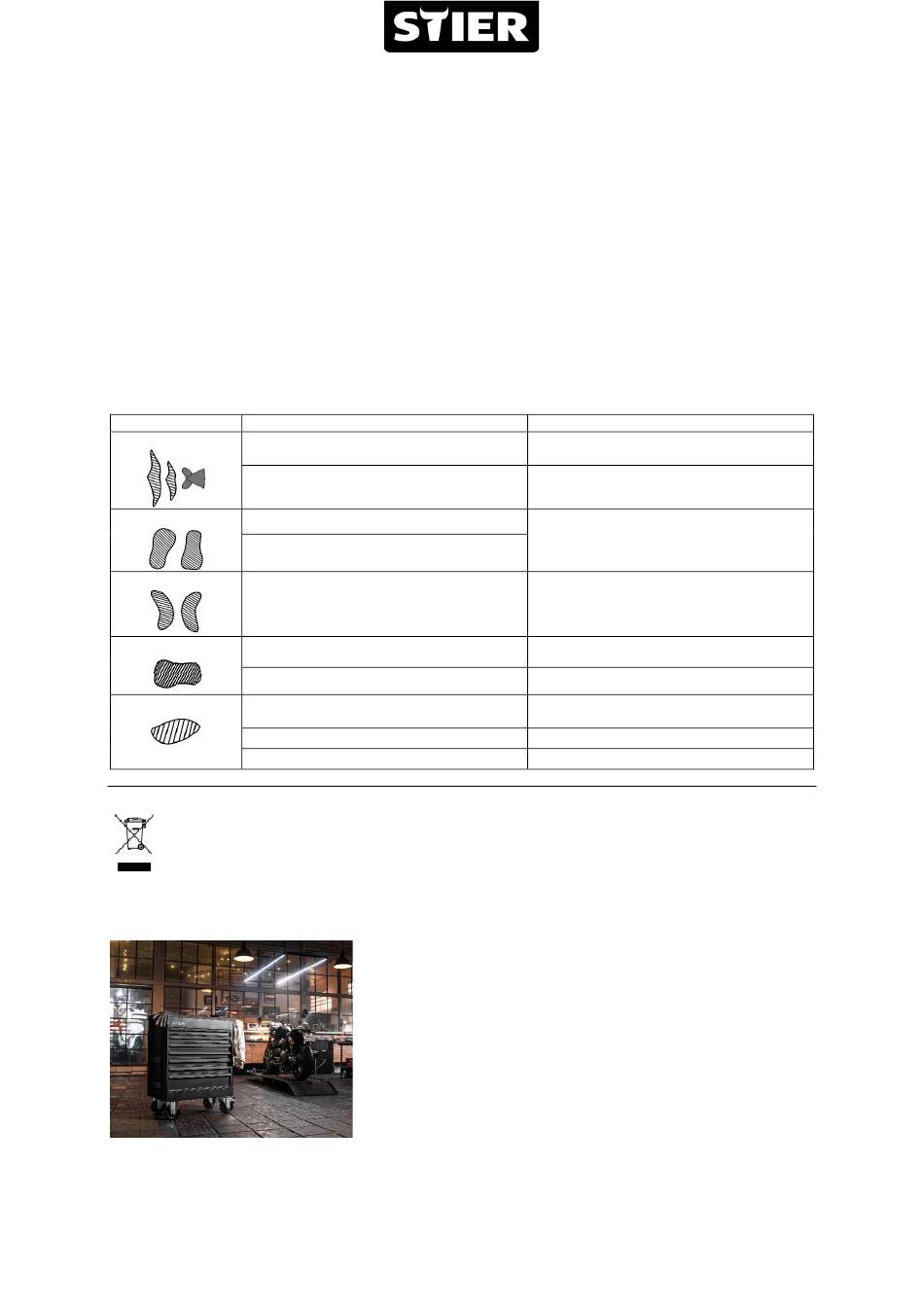

Troubleshooting
Problem Possible cause
Refracting color
Air mixes with paint due to a loose seated valve.
Air mixes with paint due to loose seated nut on the
swap body.
Single-sided pattern
Parts of the air cap are clogged.
Accumulation of dirt and paint residues on the spray
nozzle.
Crescent Moon Pattern
Parts of the air cap are clogged.
Tight pattern
Air pressure on the air cap is too high.
Viscosity of the paint is too thin.
Wide pattern Too much clearance between the spray nozzle and the
hole in the air cap is too much.
Air pressure at the air cap is too low.
Viscosity of the paint is excessively high.
Dispose of the product in accordance with the laws and regulations in force in your country. The device and its accessories are
made of a wide variety of materials. The packaging is made of raw materials and can therefore be reused or taken to a collection
point. Dispose of the packaging by type. Put cardboard and cardboard in the waste paper, foils in the recyclable material collection.
Note
The operating instructions are subject to change without notice. Our company does not take any responsibility for the loss of products. The
contents of this instruction manual cannot be used as a reason to use the product for any other applications
PREFACIO
Este manual de instrucciones original proporciona todos los conocimientos necesarios para un manejo seguro
y mantener la plena funcionalidad del producto descrito. En consecuencia, todas las instrucciones deben leerse
STIER Industrial GmbH | Friedrichstraße 224 | 10969 Berlin | DE | info@stier.de
Meaning
Replace the O-ring in the spray gun or tighten the valve
screw behind the operating handle.
Tighten loose parts or replace broken parts.
Accumulations of dirt or paint residues must be
carefully removed
Accumulations of paint residues must be carefully
removed.
Regulate the air pressure downwards.
Adjust the viscosity of the color.
Replace parts.
Increase spray pressure.
Adjust the viscosity of the color.
