Nobels MOD-mini Bedienungsanleitung

MOD -mini
Digital MODULATION
Owners Manual
English
Specifications
Power: stabilized and filtered power supply 9 Volts DC (optional)
Power connector: 2.1 mm / negative center
Consumption: less than 120 mA
Input impedance: 1 M Ohm
Output impedance: 10 K Ohm
Max. input level: 6.6 dBu (1 kHz - 1% THD+N)
Dynamic Range: 106 dB (w/o effect through DSP Buffer)
DSP Processing:
48 kHz / 32 bit - A/D D/A Sampling Rate 48 kHz / 32 bit
Controls:
Rate, Width, Mix, („GitD" pointer knobs)
Switches:
Mode, Bypass, Mono-Stereo Signal, On/Off (Tap Tempo)
Jacks:
DC, Input TRS 1/4" (6.3 mm), Output TRS 1/4" (6.3 mm)
Indicator (LED):
1x Multicolor LED: (On/Off, Mode and Tap Tempo)
Tremolo:
LED = green
Phaser: LED = red
U-Vibe: LED = blue
Mounty-P: 4x fold-out Mounting Plates
Dimensions (cm): 9.4 (L) / 4.8 (W) / 5.0 (H) unit
Weight (gr.): 210
Specifications are subject to change without notice!
* This pedal is optimized for stabalised power supply 9 V DC.
** Hum will occur when using unstabilized power supplies!
Power supply specifications: see imprint on bottom of the unit.
Waste Electrical and Electronic Equipment labeling:
In the European Union, do not discard this product as unsorted municipal waste. Contact your local
authorities or send it back to the Nobels distributor.
Nobels BK UG
Suederfeldstrasse 35 - 22529 Hamburg/Germany
Email contact: support@nobels.com
More information: www.nobels.com
20251028MSA
Welcome to the Nobels family!
The Nobels Modulation pedal MOD-mini combines a great sound selection of legendary modulation
effects with practical and simple switching as well as desired application options (like TAP-Tempo) in a
space-saving metal housing. Plus those little Nobels Extras like fold-out Mounty-P mounting plates or
"Glow in the Dark" pointer knobs. We hope you enjoy using this pedal!

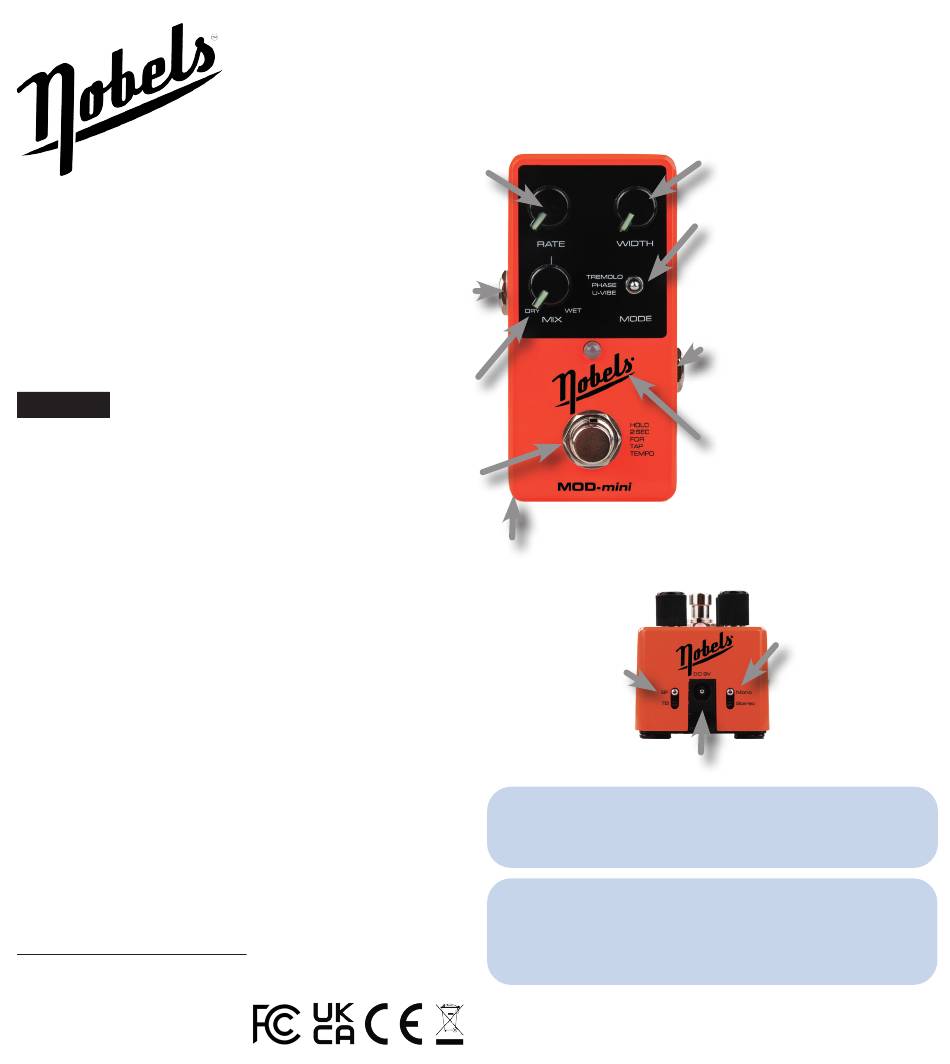

RATE Control:
This potentiometer regulates
the speed of the modulation.
TM
The output to the
amplifier, effects unit, etc. The
socket can be operated in
mono and also in stereo.
This control regulates the
mixing ratio and proportion of
the guitar signal to the effect
signal. 12 o'clock position
would be a mix of 50/50%.
Switches the device on/off
and also controls the tempo
(rate) by 'rhythmic tapping'
The TAP TEMPO mode is
activated by holding the
button(approx. 2 seconds).
OUT Jack:
MIX Control:
SWITCH:
Mounty-P (bottom plate):
4x fold-out Mounting Plates.
* **
BF/TB Switch:
Selector switch for
true- or buffered
Mode:
Tremolo - Homage to a legendary tremolo.
Phaser - A classic, known for its versatile and intense sounds.
U-Vibe - Stunning sound of the late 60s vibe.
Mono / Stereo operation - how should the switch be set?:
Guitar or mono effect signal in > mono out = mono
Guitar or mono effect signal in > stereo out = mono
Stereo signal in > stereo signal out = stereo
In stereo mode, a stereo jack plug or a Y-cable must be used in the input
and output.
Important notes
Avoid using this unit in extreme humidity, heat or dusty environment!
WIDTH Control:
Sets the desired depth of the effect
signal.
MODE Switch:
Here you can switch between three
different modulation types. See below
for specifications. See below for a
description.
IN Jack:
For connecting your guitar, another
instrument or an effects unit. The
socket can be operated in mono and
also in stereo.
LED:
The LED indicates the status and
mode of the effect device. LED lights
up = device on. Green = Tremolo /
Red = Phaser / Blue = U-Vibe. In tap
tempo mode, the speed is indicated
by flashing.
bypass.
Power supply socket: 9 Volts DC.
Mono-Stereo Switch:
Selector switch between
mono or stereo operation.
