MAKING THE CONNECTIONS

CONNECTING TO YOUR TV

Your Singing Machine is designed to connect to your TV the same way you would connect most video
cameras, DVD players or video game consoles.
Please follow the steps below to display lyrics on the TV screen:
1. Locate the multi-colored RCA cables.
2. Connect the RCA video cable (Yellow) to the VIDEO OUT jack and the audio cables (White and Red) to
the AUDIO OUT jacks located on the back of the Singing Machine.
3. Connect the opposite end of the RCA video cable (Yellow) to the VIDEO IN jack and the audio cables
(White and Red) to the AUDIO IN on your TV.
VIDEO OUT
(yellow)
AUDIO OUT
(white - L
red - R)
LINE IN CONNECTION
Your Singing Machine has the capability of
playing digital music device (e.g. iPod/MP3
player, etc.) by connecting it to the LINE IN
jack on your Singing Machine and simply
powering the device on.
You can connect your device by using an
appropriate cable (3.5mm audio cable not
included).
The LINE IN function is automatically selected
once the audio cable is plugged in.

MASTER VOLUME

Rotate the MASTER VOLUME control to
obtain the desired sound level.
Warning: To avoid excessive over amplified
sound output, it is recommended that the
volume control is initially adjusted to one third
or less and then increased if required.

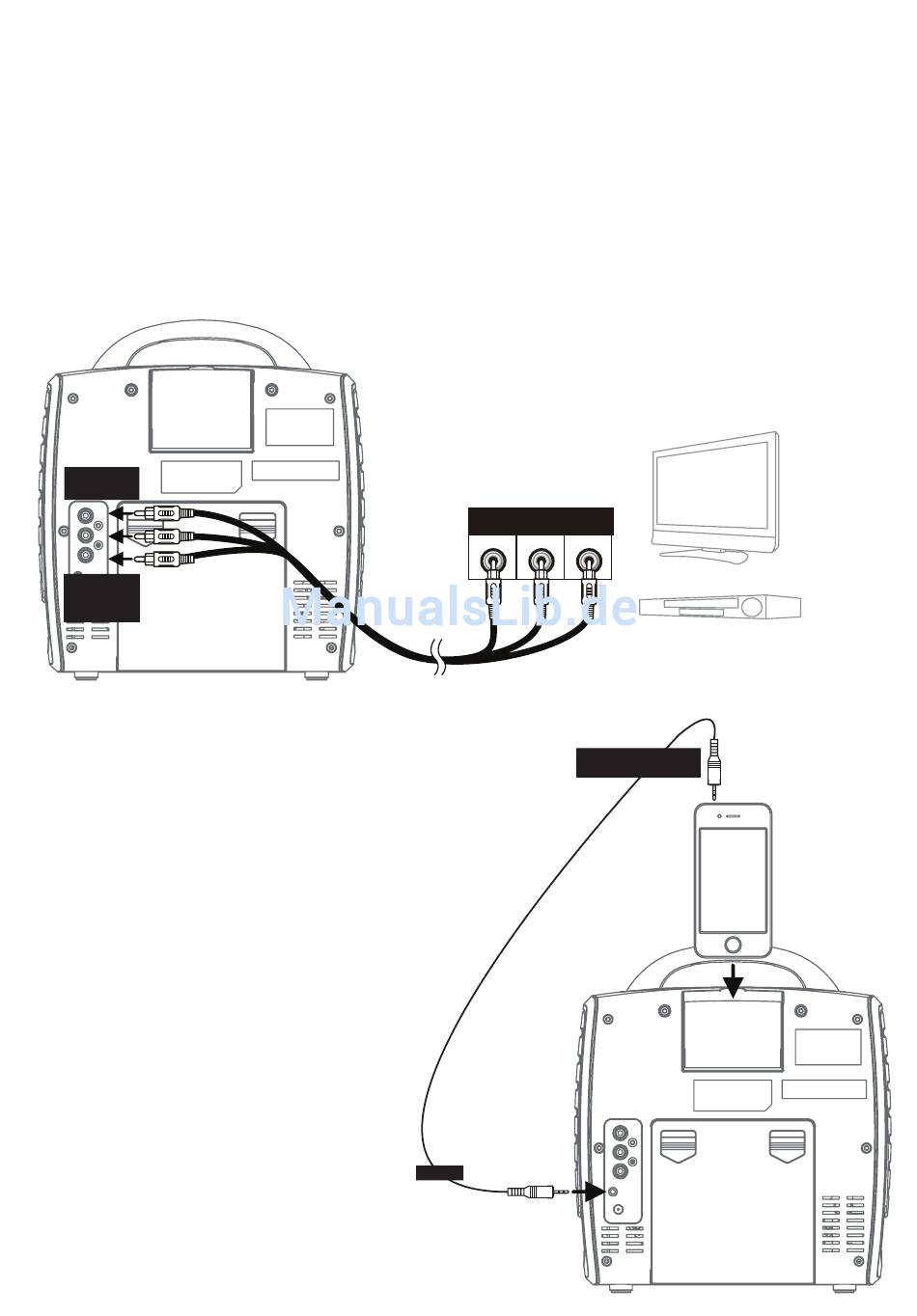

REAR VIEW OF TV
VIDEO AUDIO
INPUT INPUT
R
RCA cables
AUX IN
E-4
L
AUDIO OUTPUT
/ HEADPHONE JACK
YOUR SMARTPHONE,
DIGITAL PLAYER OR
MP3 PLAYER
