The main device powers the rear camera only when the main device receives
power from an external power source. The main device cannot power the rear
camera if it is not powered by the external power source.
•
The image acquired by the rear camera is stored in the microSD card of the main
device automatically. As the storage limit is reached for the microSD card, the
earliest front-recorded and rear-recorded images will be overwritten by the latest
images and deleted in turn cyclically.
Installation

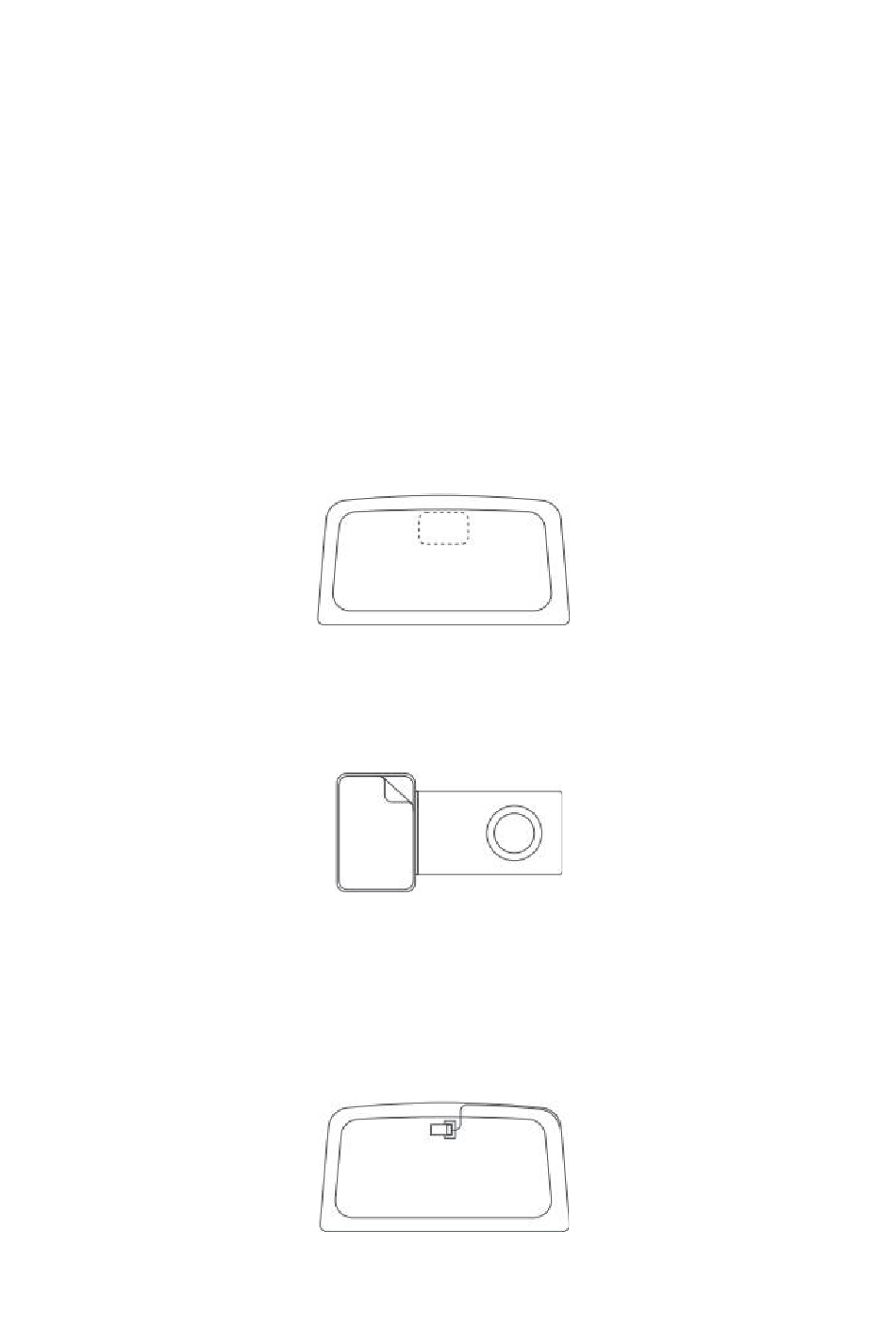

Installing the electrostatic sticker
Clean your rear windshield and put the electrostatic sticker on the recommended upper
area of the windshield, as shown in the figure below. Make sure you removed air
bubbles between the sticker and the glass.
Installing the rear camera
Peel off the protective film from the adhesive sticker on the base of the mount, and
paste the rear camera onto the electrostatic sticker in the dotted area.
Connecting the power supply
Connect the rear camera with the rear signal wire (connect ports A and B together)
As shown in the figure below, run the wire along the top of the rear windshield, C-pillar,
to of the side windows to the main device. Plug the Mini USB 8PIN power port into the
main device (the AV/IN port of the main device).
