Preparation Work

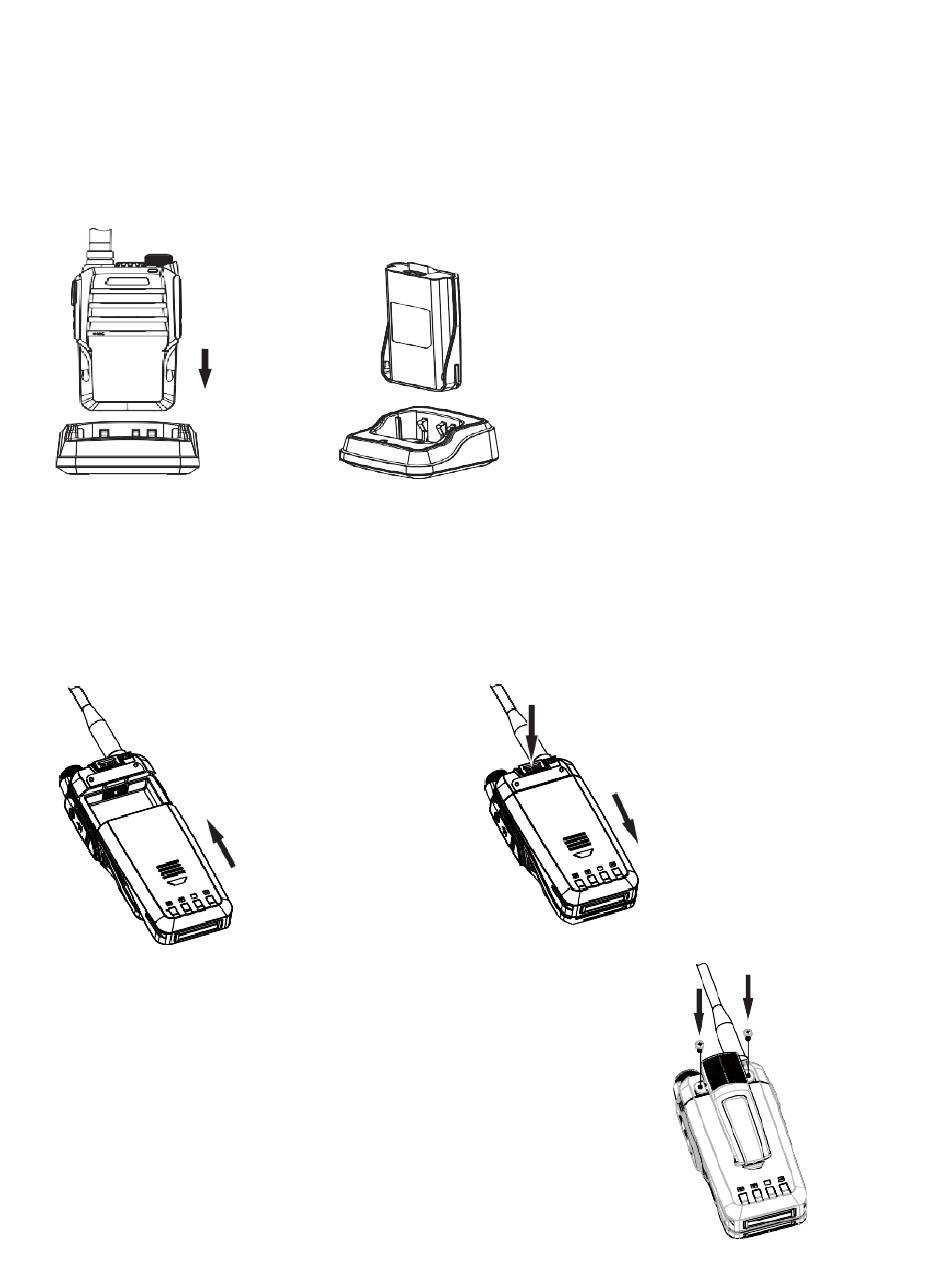

Charging the Battery

1.Well connect adaptor cable and desktop charger, connect adaptor to AC power, light up charger orange light
for 2 seconds then out.
2.Insert battery or transceiver with battery into battery grove, make sure well connected and stable.
3.Charger red light on or flashing when charging start. Green light on when full charging.
Warnign: Do not charger in explosion-proof locations.
Notice：
It is suggested to power off before charging, or else battery status can't be well judged by charger.

Install/Remove Battery Pack

1.Lay battery pack in the battery groove, press battery bottom and push forward until hearing clicked sound, so
battery pack fixed well.
2.Press "PUSH"
Clip on the top and lightly pull downward to remove battery pack.
Notice:
Never short circuit battery terminal and throw battery in fire.
Never try to remove shell an install battery in dangerous environment,
electric spark will cause explosion.
Install Belt Clip
Remove battery firstly and aim belt clip at two screw holes on transceiver,
then screw on by screwdriver. Unscrew to remove belt clip.
Warning: Do not
attach battery in
explosion-proof
locations.
2
Warning: Do not
remove battery in
explosion-proof
locations.
