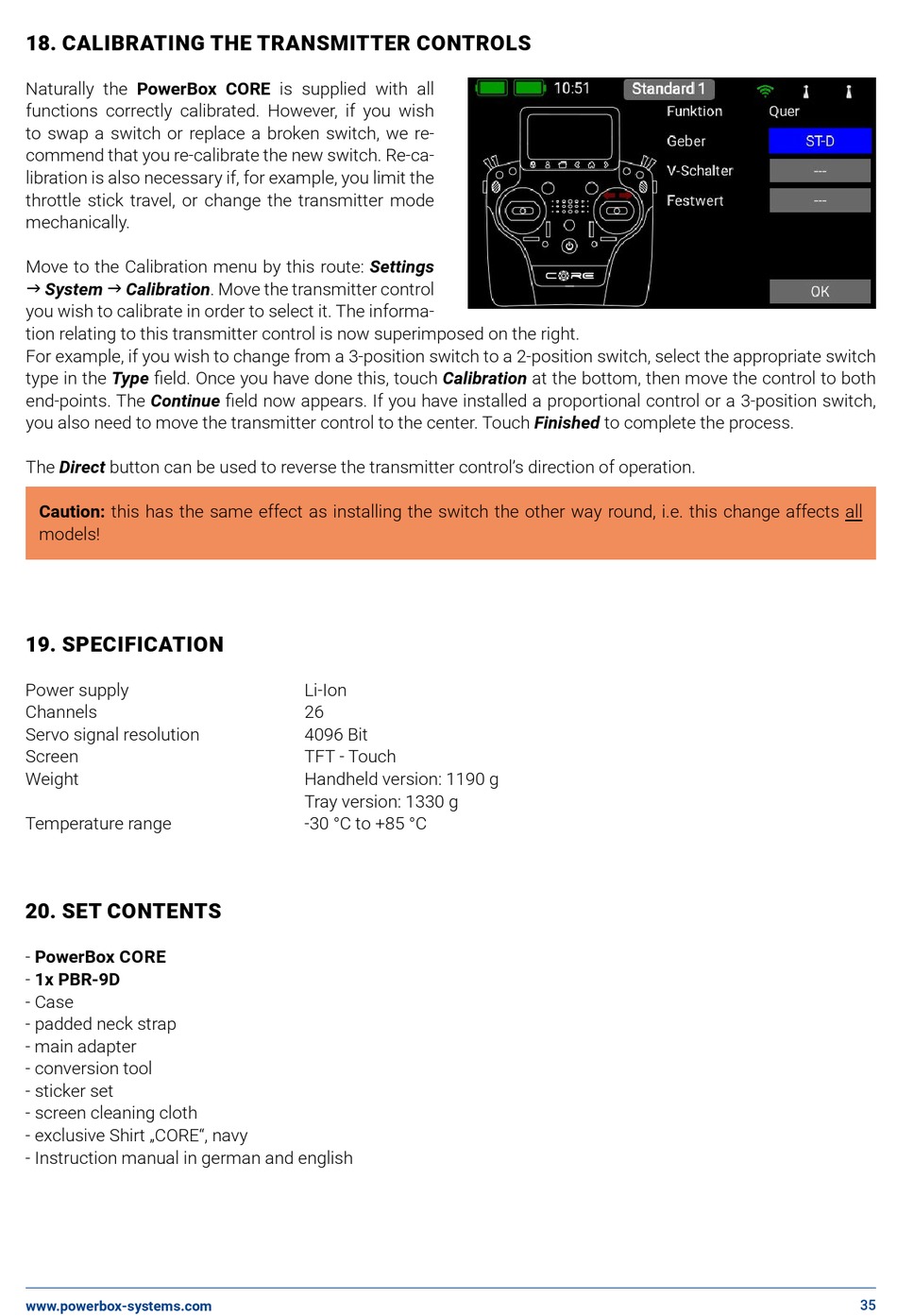

18. CALIBRATING THE TRANSMITTER CONTROLS

Naturally the PowerBox CORE is supplied with all
functions correctly calibrated. However, if you wish
to swap a switch or replace a broken switch, we re-
commend that you re-calibrate the new switch. Re-ca-
libration is also necessary if, for example, you limit the
throttle stick travel, or change the transmitter mode
mechanically.
Move to the Calibration menu by this route: Settings
 System  Calibration. Move the transmitter control
you wish to calibrate in order to select it. The informa-
tion relating to this transmitter control is now superimposed on the right.
For example, if you wish to change from a 3-position switch to a 2-position switch, select the appropriate switch
type in the Type field. Once you have done this, touch Calibration at the bottom, then move the control to both
end-points. The Continue field now appears. If you have installed a proportional control or a 3-position switch,
you also need to move the transmitter control to the center. Touch Finished to complete the process.
The Direct button can be used to reverse the transmitter control's direction of operation.
Caution: this has the same effect as installing the switch the other way round, i.e. this change affects all
models!

19. SPECIFICATION

Power supply
Channels
Servo signal resolution
Screen
Weight
Temperature range

20. SET CONTENTS

- PowerBox CORE
- 1x PBR-9D
- Case
- padded neck strap
- main adapter
- conversion tool
- sticker set
- screen cleaning cloth
- exclusive Shirt „CORE", navy
- Instruction manual in german and english
www.powerbox-systems.com
Li-Ion
26
4096 Bit
TFT - Touch
Handheld version: 1190 g
Tray version: 1330 g
-30 °C to +85 °C
35
