You are now returned to the virtual switch overview, and you can define the second input using exactly the same
procedure as the first. Once you have finished you can check how your settings behave.
Selecting AND or OR logic defines the switching characteristics you wish to use.

7. SERVO CUT-OFF

This feature provides a very easy means of switching a servo output to a fixed, previously defined value. An ex-
ample of this might be a motor arming switch, or a fixed, pre-defined nosewheel position when the undercarriage
is retracted.

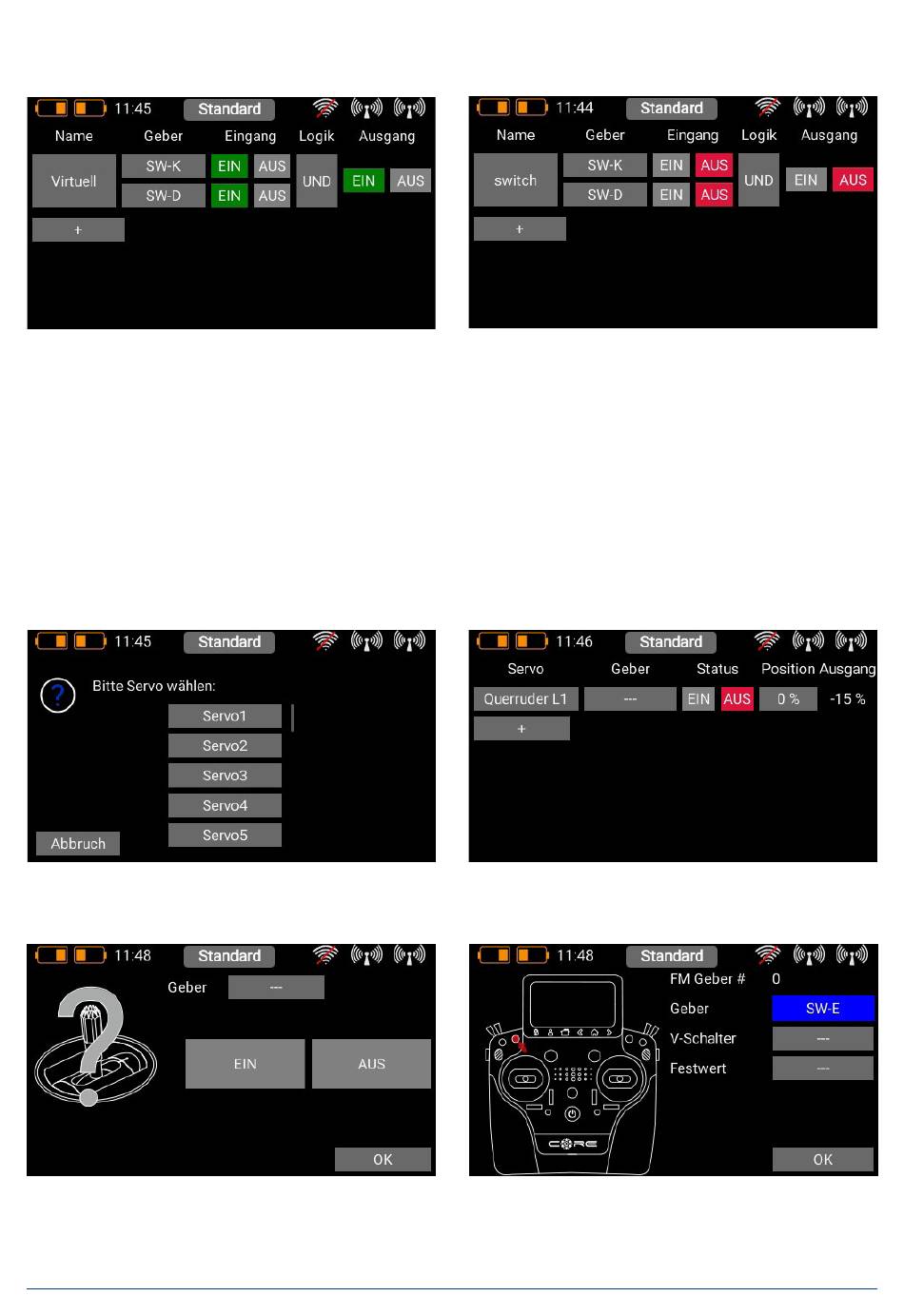

Select the Servo Cut-Off menu, then press + in order to create a new cut-off function. At this point select the servo
which you wish to move to a fixed, pre-defined position, then press OK.
First select a transmitter control by briefly pressing the blank field (three dashes) under Control; press Control
again at the next screen:
You can now select a switch or linear control as transmitter control by operating it.
Yet another option is to use the output of a previously defined logical switch in turn as a transmitter control input.
Press OK when you have made your selection.
