Layout

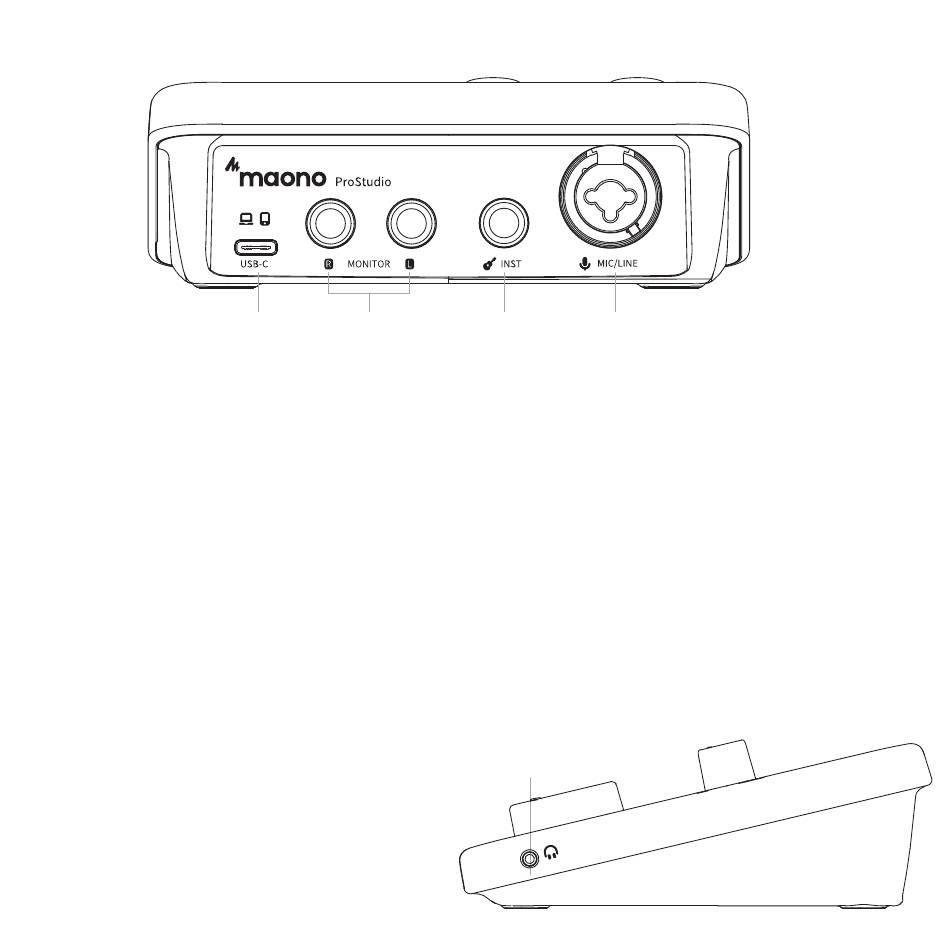

1. Mic/Line Input (MIC1) – Combo XLR socket. Connect a microphone or line-level input. It
accepts both XLR and ¼" (6.35 mm) jacks. Connect a microphone using an XLR plug;
connect a line-level input using a TS or TRS ¼" (6.35 mm) jack. To protect the circuitry,
the ¼" (6.35 mm) microphone input is not supported. Please use an XLR to XLR cable
to connect your microphone.
2. Instrument Input (MIC2) - Accept Instrument level ¼"(6.35mm) TS plug input.
3. Monitor Output: L and R – 2 x ¼" (6.35 mm) TRS jack sockets for powered speakers;
Accept either ¼" TRS (balanced connection) or TS (unbalanced connection) plugs.
4. USB-C - Connects to the computer or mobile device. Provides both data transfer and
power.
5. 3.5mm Headphone Jack - Connect
your headphones or headsets with a
3.5mm TRS or TRRS plug. Please
note that the microphone input of
the headset is not supported. The
jack is located on the right side of
the device.
4 3 2 1
5
