Maono ProStudio 2x2 Lite Benutzerhandbuch Seite 14

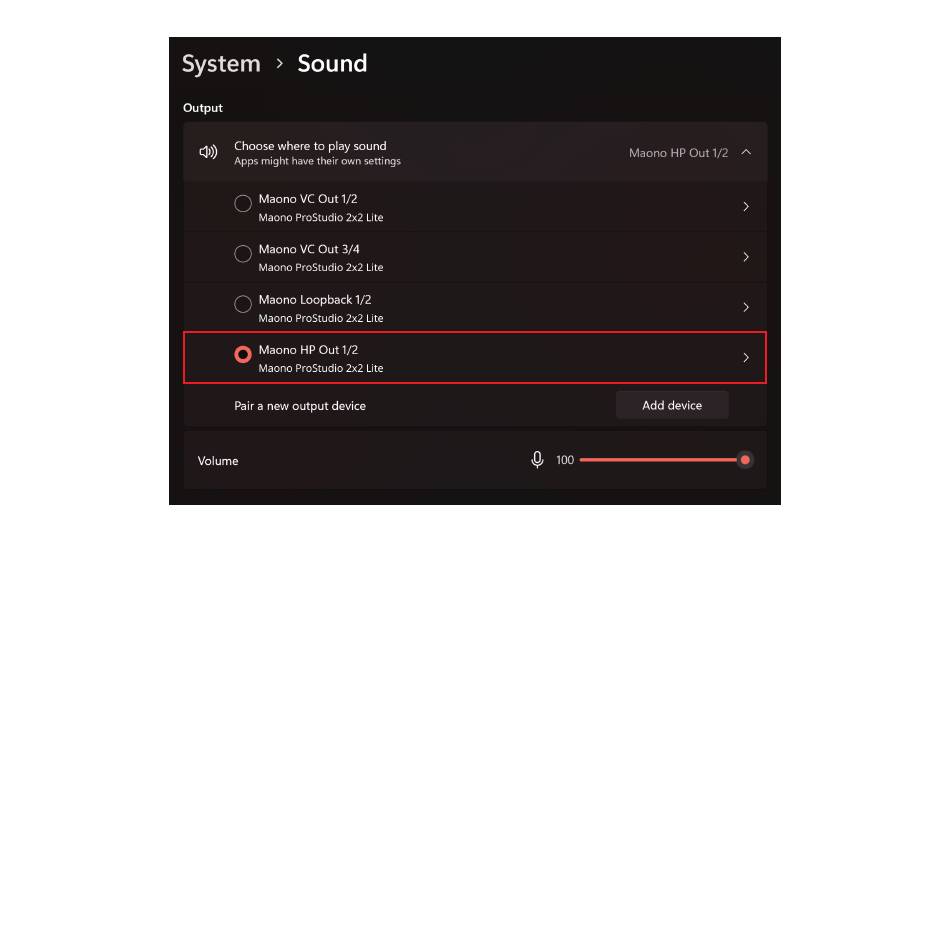

To verify this go to: Start > Settings > System > Sound and ensure the input is set to
'Maono In 1/2' and the output is set to 'Maono Out 1/2'. This menu location may vary based
on the version of Windows you are using.
The Maono MIC In 1/2 refers to the hardware microphone/line inputs on the device, while
Maono HP 1/2 represents the hardware headphone and monitor outputs.
Maono VC In 1/2, Maono VC Out 1/2, Maono VC In 3/4, Maono VC Out 3/4, and Loopback 1/2
are virtual channels. These virtual channels are not physical inputs or outputs on the
device itself but are instead software-based channels that can be configured using the
Maono Routing Center software.
For more detailed information on how to use and configure these virtual channels, you
can refer to the digital user guide that comes with the Maono Routing Center software.
- 10 -
