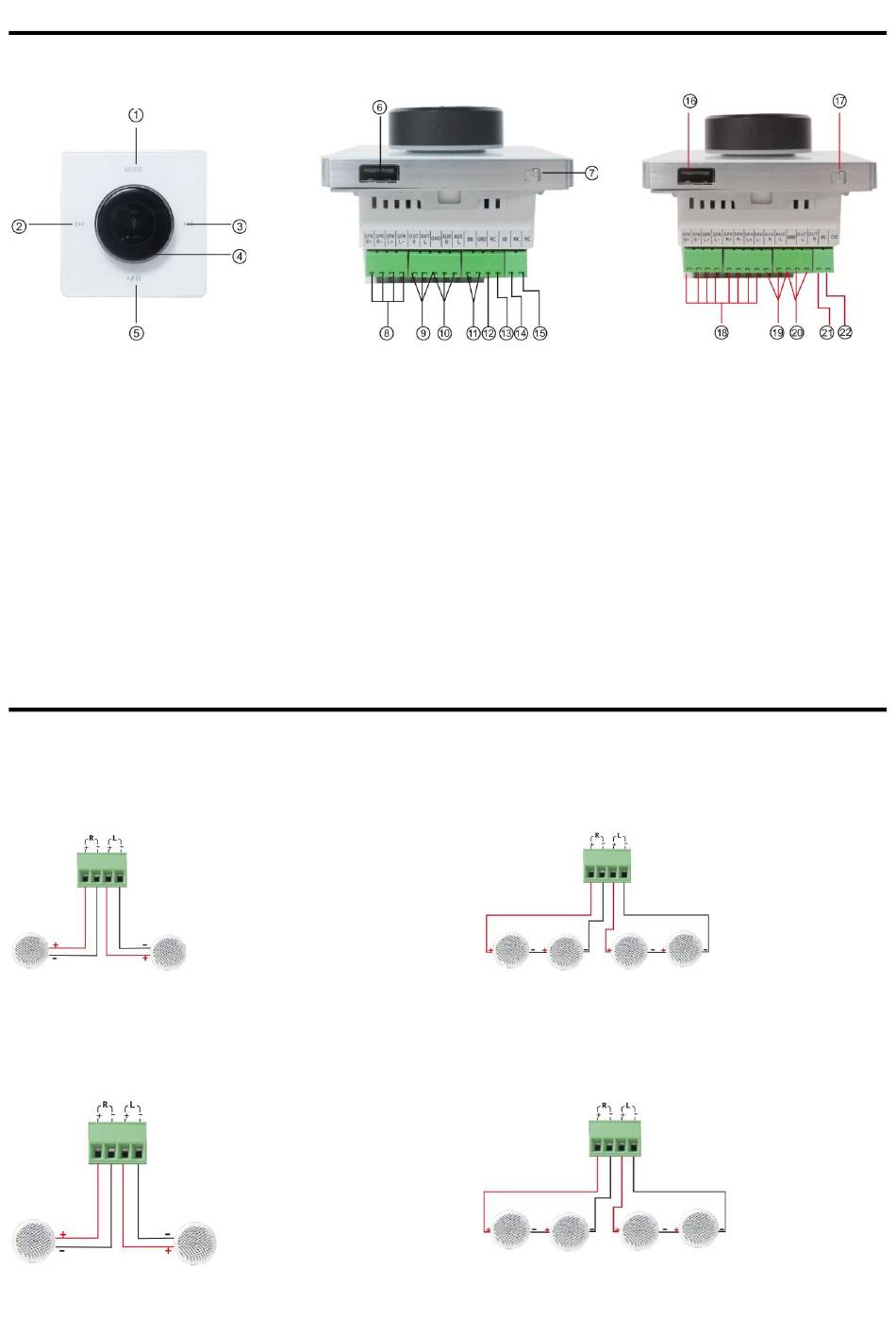

INTERFACE
B50
1. Mode selection
2. Previous song
3. Next song
4. Volume control
knob with LCD
display
5. Play/pause

SPEAKER CONNECTION

B50
Connect with 1 piece of 8 ohm
speaker in one channel
Totally 2 pieces for B50
B100
Connect with 1 piece of 8 ohm
speaker in one channel
Totally 4 pieces for B100
6. USB port: Support connecting
32GB standard U disk.
7. Power switch: Turn left,
power off. Turn right, power on.
8. Speaker output: SPK R+ SPK
R-. SPK L+ SPK L-.
9. Audio output: OUT R+OUT
L+GND.
10. Audio input:AUX L+AUX R +
+GND.
11. Trigger the doorbell: GND+DB
12. NC
13. IO
14. NC
15. NC
Totally 4 pieces for B50
7
Connect with 2 piece of 8 ohm
speaker in one channel
Connect with 2 piece of 8 ohm
speaker in one channel
Totally 8 pieces for B100
B100
16. USB port: Support
connecting 32GB
standard U disk.
17. Power switch: Turn left,
power off. Turn right,
power on.
18. Speaker output
19. Audio input: AUX L +
AUX R + GND.
20. Audio output: OUT R
+OUT L+GND.
21. NC
22. Trigger the doorbell
