b. Install the faucet

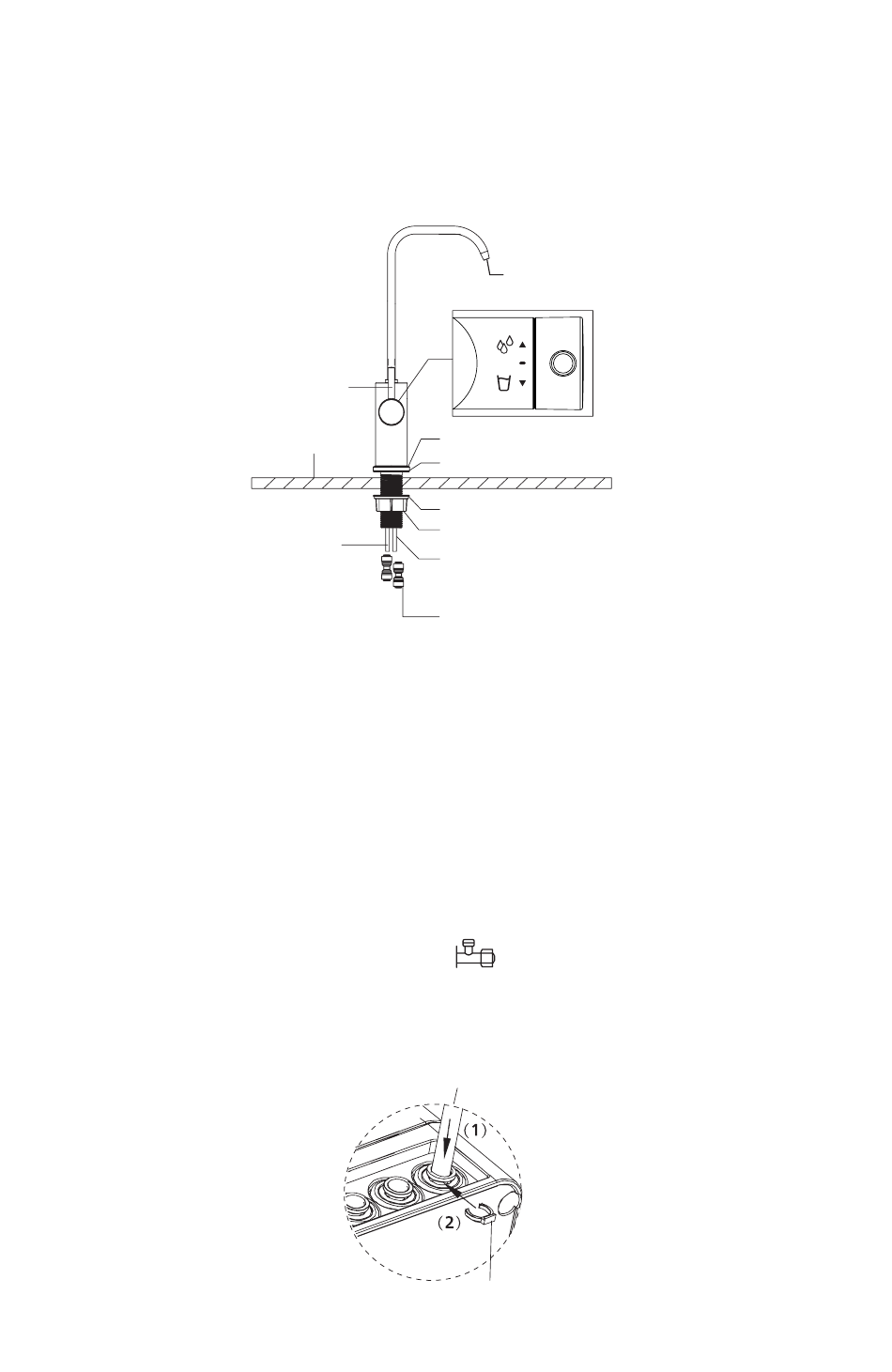

• Install accessories for the faucet (e.g., Rubber washer) as shown in the figure below.
• Thread the faucet stem nut onto the faucet stem and tighten it securely.
• Insert the faucet inlet pipes into the quick connectors and secure them with clips.
Step 3: Install the main unit
a. Before installation
• Place the system on a stable, flat surface and connect the water inlet, outlet, and drain.
• Ensure the system is on a dry surface, away from heat sources.
b. Install the tap water pipe (white) and three-way ball valve
• Insert one end of the 3/8" white PE pipe into the "
• Connect the other end to the three-way ball valve.
• Secure the pipe with a clip.
Handle
Surface
RO water inlet
pipe (blue)
Quick connector clip
Water outlet
Base
Rubber washer
Rubber washer
Faucet stem nut
MF water inlet pipe (green)
Quick connector
Water in " on the top of the unit.
Water in
8
