Technische Daten
Technical data
Anzahl Sensoren
Number of sensors
Messgröße
Measurement category
KNX Medium
KNX Medium
KNX Applikationsprogramm
KNX Application
Anschlussart
Connection type
Leitungsdurchmesser KNX
KNX cable cross section
Hilfsspannung für Heizung
Supply voltage for heating
Leistungsaufnahme KNX-Bus, typisch
Typical power consumption KNX bus
Stromaufnahme für Heizung
Current consumption for heating
Umgebungstemperatur
Ambient operating temperature
Schutzart
Protection classification
Abmessungen
Dimensions
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: + 49 - 2263 - 880 • knx@mdt.de • www.mdt.de
Stand: 04/25
SCN-RS1R.01
1
Regen
Rain
TP-256
ab ETS 3
as of ETS 3
KNX Busanschlusskabel 5 m
KNX Bus connection cable 5 m
Ø 0,6 mm, Massivleiter
Ø 0,6 mm, solid conductor
24 ... 30 V DC
< 0,3 W
< 100 mA
-20 ... +70 °C
IP55
67 x 67 x 29 mm
Betriebsanleitung KNX Regensensor
nur für autorisiertes Elektrofachpersonal
KNX Rain Sensor
Operating Instructions
for authorised electricians only
SCN-RS1R.01
■
Allgemeine Sicherheitshinweise –
Important safety notes
Lebensgefahr durch elektrischen Strom -
Danger High Voltage
Das Gerät darf nur von Elektrofachkräften montiert und angeschlossen werden. Die länderspezifischen
Vorschriften sowie die gültigen KNX-Richtlinien sind zu beachten Die Geräte sind für den Betrieb in der
Europäischen Union und im Vereinigten Königreich zugelassen und tragen das CE und UKCA Zeichen.
Die Verwendung in den USA und Kanada ist nicht gestattet.
Installation and commissioning of the device is only to be carried out by authorised electricians. The relevant
standards, directives, regulations and instructions must be observed. The devices are approved for opera-
tion in the European Union and in the United Kingdom. The products are respectively marked with the CE
and UKCA symbols. Use in USA and Canada is prohibited.
Anschluss und Bedienung –
Connection and operating
SCN-RS1R.01
2 2
3 3
1 1

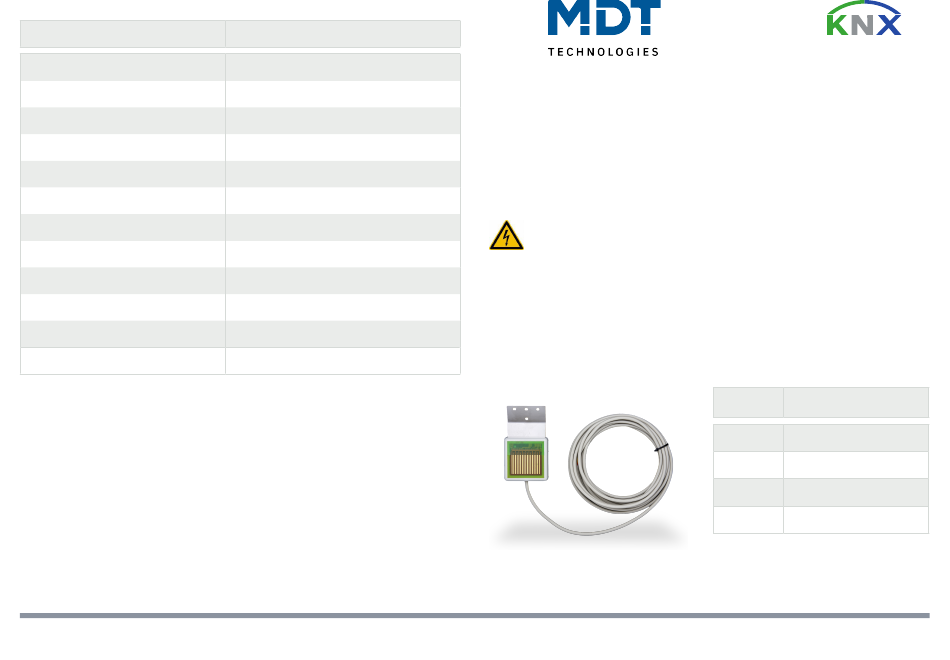

KNX Busanschlusskabel
Programmiertaster (Reedkontakt)
1 –
2 –
KNX bus connection cable
Programming button (Reed contact)
Rote Programmier LED
3 –
Red programming LED
Technische Änderungen und Irrtümer vorbehalten. Abbildungen können abweichen.
Technical modifications and corrections may be made without notice. Images may differ.
Aderfarbe
Funktion
Wire colour
Function
Rot
KNX Bus +
Red
KNX-Bus +
Schwarz
KNX Bus -
Black
KNX Bus -
Gelb
Heizung +
Yellow
Heating +
Weiß
Heizung -
White
Heating -
