OPERATING INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Before you start assembling the appliance, please check that all the specified parts are present. Some of the assembly steps require
assisted
person
.
heavy lifting. It is recommended that you are
by another
when assembling this product

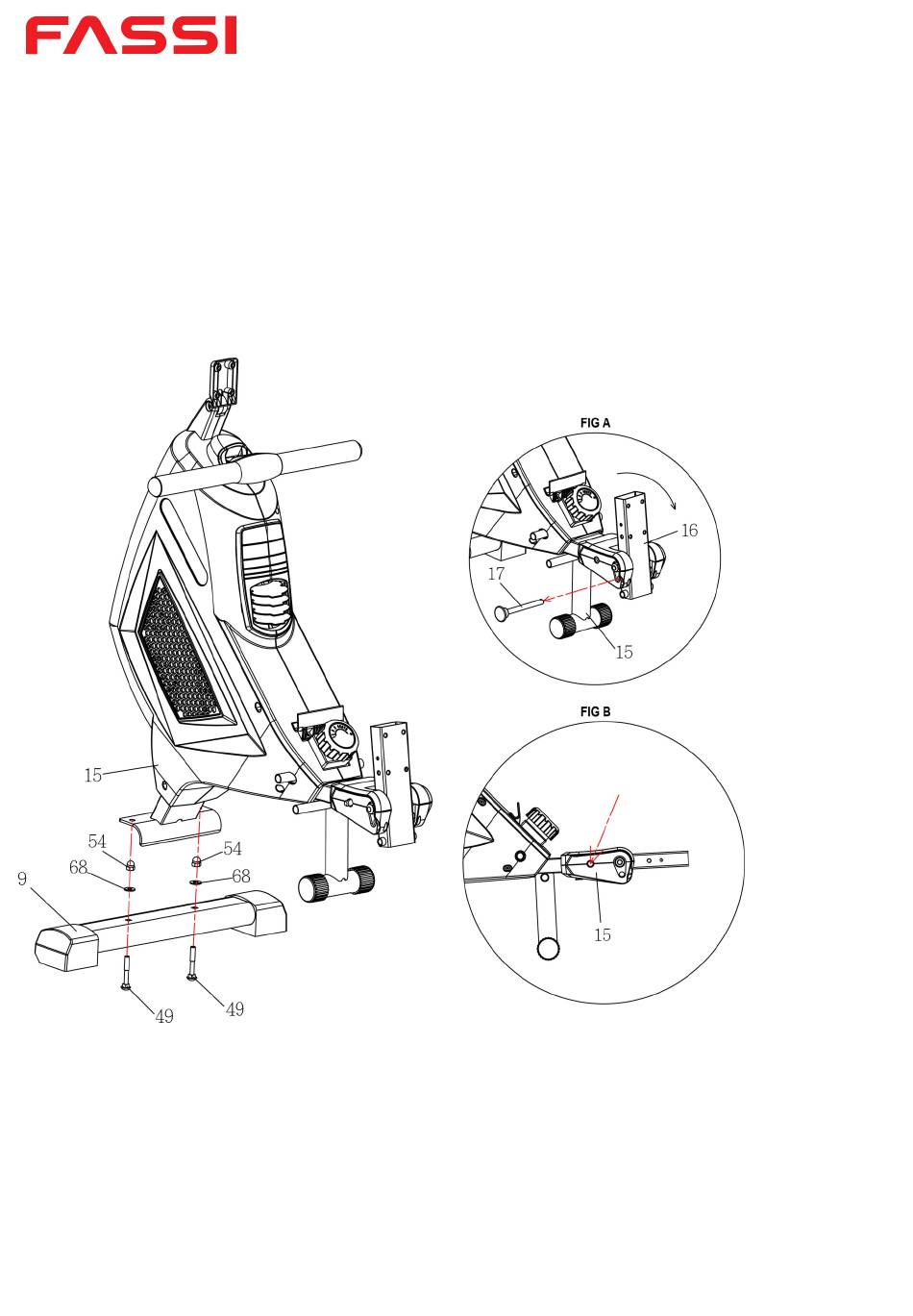

STEP 1
Fasten the front stabilizer (9) to the main frame (15) using 2 square head bolts (49), 2 washers (68) and 2 cap nuts (54).
Pull the pin (17) out of the main frame (15) as shown in Fig. A.
Turn the connecting disk (16) on the main frame (15) to the position shown in Fig. B.
Insert the pin (17) into the holder on the main frame (15).
28
